Product Construction
Backing material | PETP |
Color | สีดำ |
Color of liner | สีขาว |
Thickness of liner | 140 µm |
Total thickness | 85 µm |
Type of adhesive | type: modified acrylic |
Type of liner | type: PE-coated paper |

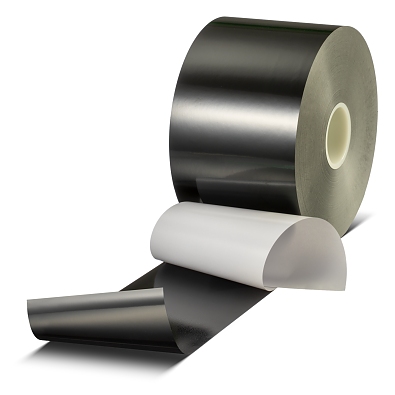

tesa® 58353 เป็นเทป PET หน้าเดียวสีดำ 85 µm ที่ออกแบบมาโดยเฉพาะสำหรับการพัน และฉนวนไฟฟ้าของเซลล์แบตเตอรี่และส่วนประกอบอื่น ๆ ของยานยนต์ไฟฟ้า
ประโยชน์:
Backing material | PETP |
Color | สีดำ |
Color of liner | สีขาว |
Thickness of liner | 140 µm |
Total thickness | 85 µm |
Type of adhesive | type: modified acrylic |
Type of liner | type: PE-coated paper |
Backing material | PETP |
Color | สีดำ |
Color of liner | สีขาว |
Thickness of liner | 140 µm |
Total thickness | 85 µm |
Type of adhesive | type: modified acrylic |
Type of liner | type: PE-coated paper |
Elongation at break | 80 % |
Tensile strength | 74 N/cm |
Dielectric breakdown voltage | 7000 V |
Elongation at break | 80 % |
Tensile strength | 74 N/cm |
Dielectric breakdown voltage | 7000 V |
Adhesion to Aluminium (initial) | 2 N/cm |
Adhesion to Aluminium (after 14 days) | 5 N/cm |
Adhesion to Steel (initial) | 6 N/cm |
Adhesion to Steel (after 14 days) | 6 N/cm |
Adhesion to Aluminium (initial) | 2 N/cm |
Adhesion to Aluminium (after 14 days) | 5 N/cm |
Adhesion to Steel (initial) | 6 N/cm |
Adhesion to Steel (after 14 days) | 6 N/cm |
ดาวน์โหลดไฟล์ด้านล่างเพื่อข้อมูลทางเทคนิคและข้อมูลเพิ่มเติมเกี่ยวกับผลิตภัณฑ์นี้
