tesa® 4651
Premium Acrylic Coated Colored Cloth Tape
Product Features- The cloth tape is conformable and features excellent abrasion resistance, high tensile strength, as well as a very high adhesiveness to multiple, even rough surfaces.
- The tape's high tack and short dwell time ensure a fast application and reliable adhesion only shortly after having been applied.
- The tape can be torn manually with precise and straight edges longitudinally and horizontally.
Product description
tesa® 4651 is a robust, high-quality, acrylic coated cloth tape. It is based on a 145 mesh woven rayon fabric backing and a natural rubber adhesive. The product is also available with paper liner in jumbo-roll format (tesa® 4651 PV9).
Product Features
- The cloth tape is conformable and features excellent abrasion resistance, high tensile strength, as well as a very high adhesiveness to multiple, even rough surfaces.
- The tape's high tack and short dwell time ensure a fast application and reliable adhesion only shortly after having been applied.
- The tape can be torn manually with precise and straight edges longitudinally and horizontally.
- Classification according FMVSS302: SE/NBR1
Application Fields
- Masking while sandblasting, coating, paint spraying, etc

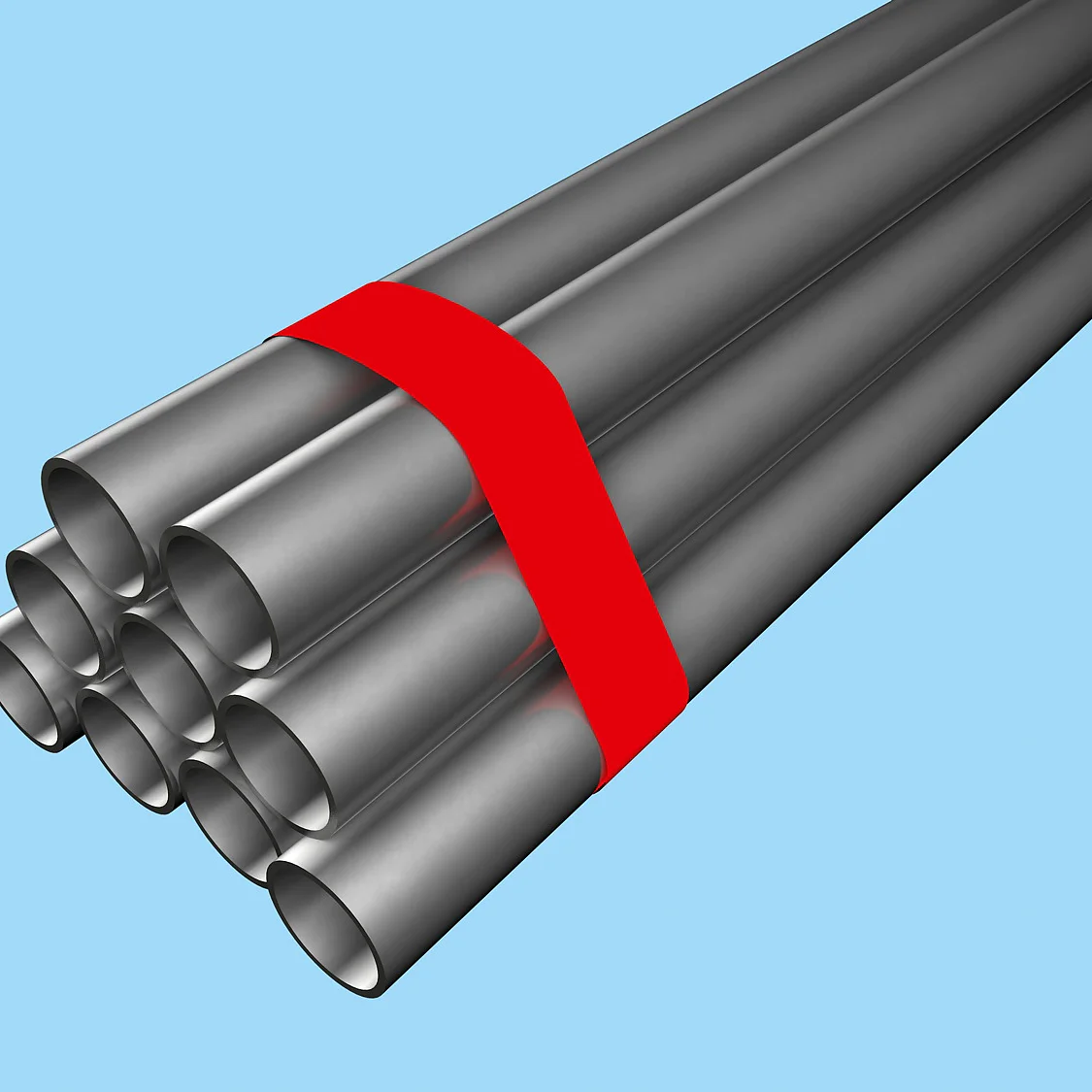

- Bundling and reinforcing of freight, such as pipes or profiles
- Labeling, color coding or marking of wires, cables, etc
- Permanent sealing of pipe joints, tins and tubes
Product Construction
| Type of liner | paper |
| Backing material | Acrylic-coated cloth |
| Type of adhesive | natural rubber |
| Total thickness | 310 µm |
| Color of liner | yellow |
| Thickness of liner | 76 µm |
Properties / Performance Values
| Suitable for die cutting | yes |
| Abrasion resistance | very good |
| Temperature resistance (30 min) | 130 °C |
| Elongation at break | 13 % |
| Tensile strength | 100 N/cm |
| Easy to write on | yes |
| Hand tearability | very good |
| Mesh | 145 threads/inch² |
| Straight tear edges | very good |
| Temperature resistance (removability from aluminum after 30 min exposure) | 130 °C |
| Water resistance | good |
Adhesion to Values
| Adhesion to Steel | 3.3 N/cm |
Additional Info
1 self-extinguishing / no burn rate according FMVSS 302 tested as composite with a non-inflammable material
Complies with LV 312-1 Dialectric strength

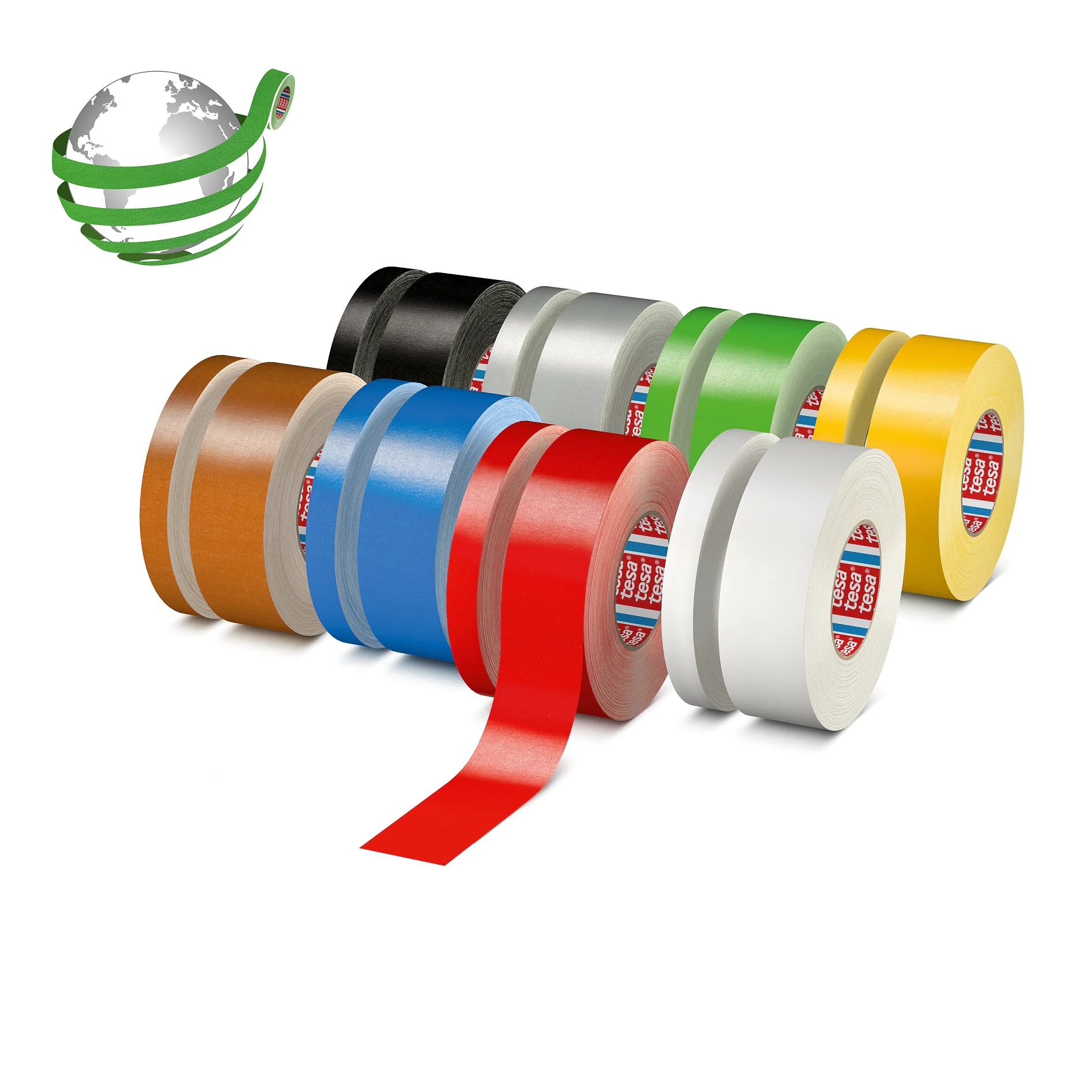

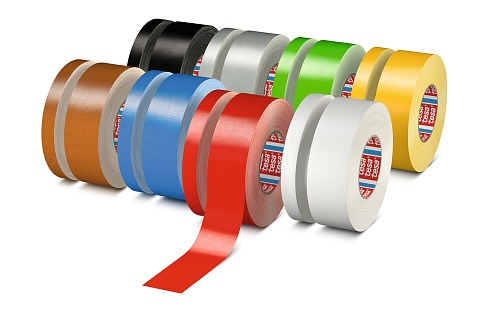

The following RAL-Codes reflect our product coloring:
- RAL 9005 Black - tesa color code: 04
- RAL 9010 White - tesa color code: 08
- RAL 7000 Gray - tesa color code: 55
- RAL 1016 Yellow - tesa color code: 17
- RAL 3000 Red - tesa color code: 19
- RAL 5015 Blue - tesa color code: 11
- RAL 6018 Green - tesa color code: 37
- RAL 8003 Brown - tesa color code: 45
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
