tesa® 4661
Standard acrylic coated cloth tape
Sustainable Aspects
- 64% bio-based carbon content (DIN EN 16640)
- High adhesion, even on rough surfaces
- Very high tensile strength
- Abrasion-resistant
Product description
tesa® 4661 is a strong acrylic coated cloth tape. It is based on a 148 mesh woven rayon fabric backing and a natural rubber adhesive.
tesa® 4661 is an all-round cloth tape for a wide range of applications, often used for belting of components.
Features:

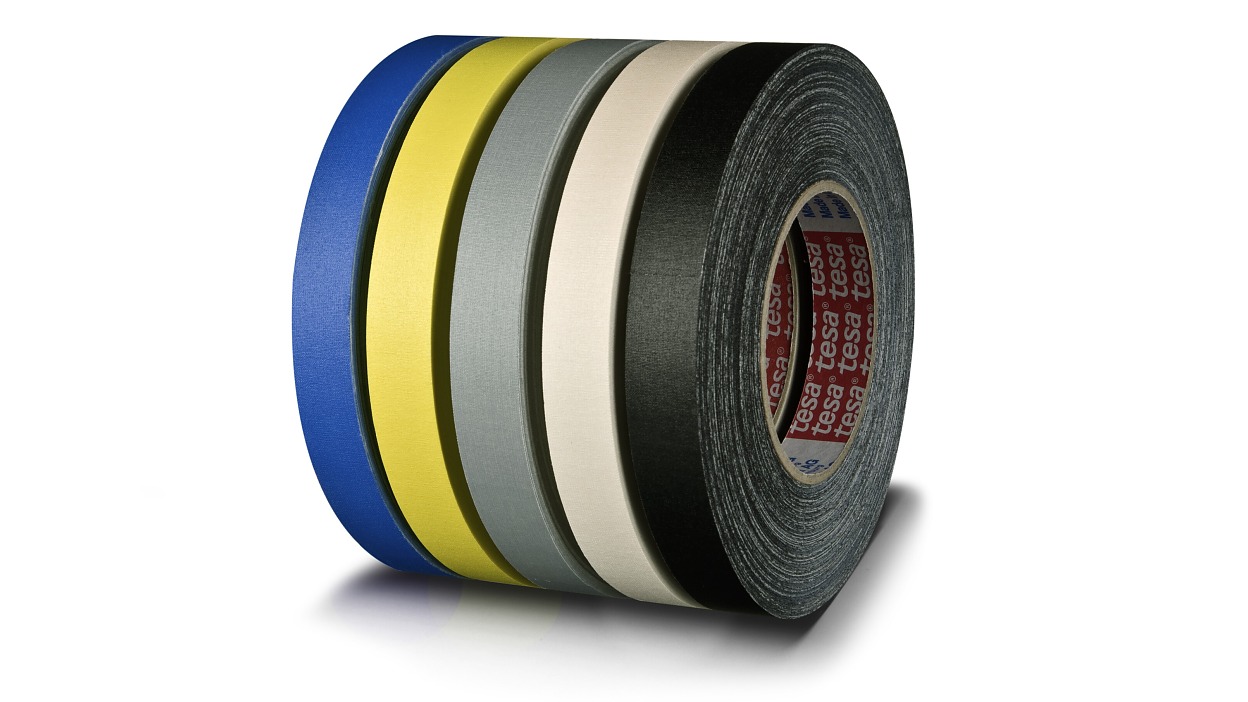

- Available in 7 colors: black, white, grey, yellow, blue, red, green
- Blue version available with Liner (PV15)
Product details and specifications
Product Features
- High adhesion, even on rough surfaces
- Very high tensile strength
- Abrasion-resistant
Application Fields
- Marking of wires and cables
- Bundling of pipes, profiles etc.
- Noise and scrub protection
- Harnessing
- Colour coding
- Securing of sharp edges
- Sealing of cartons, tins and tubes

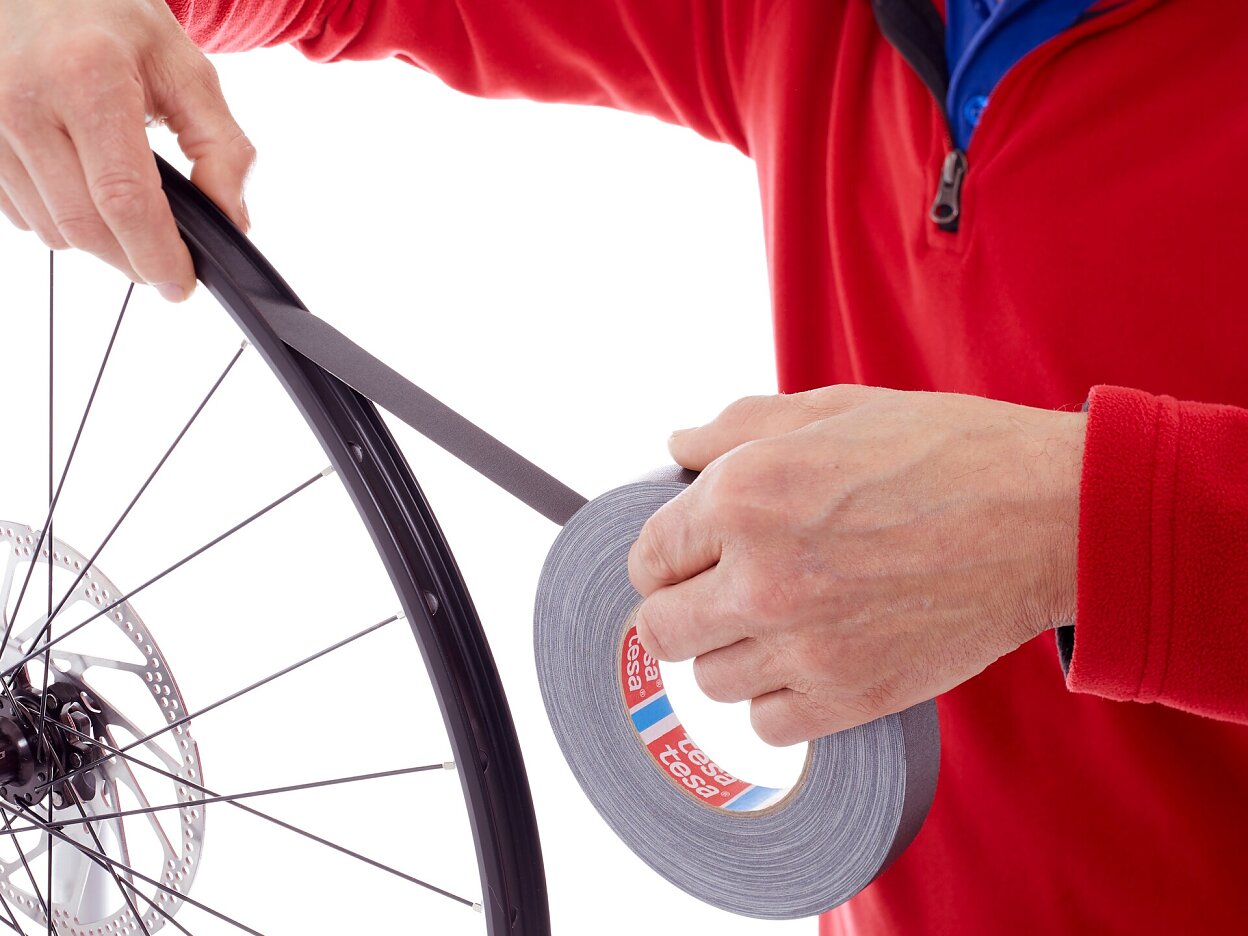

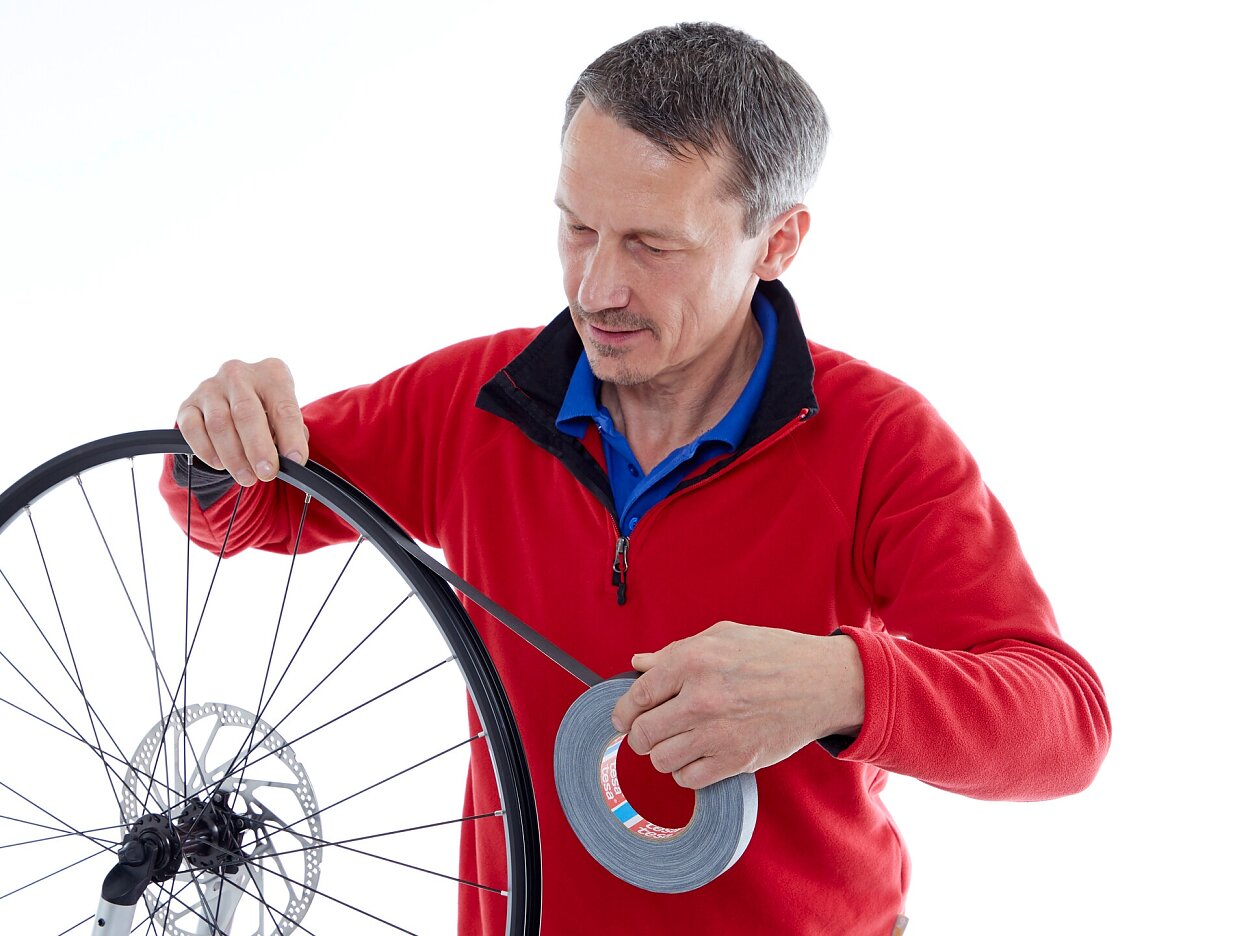

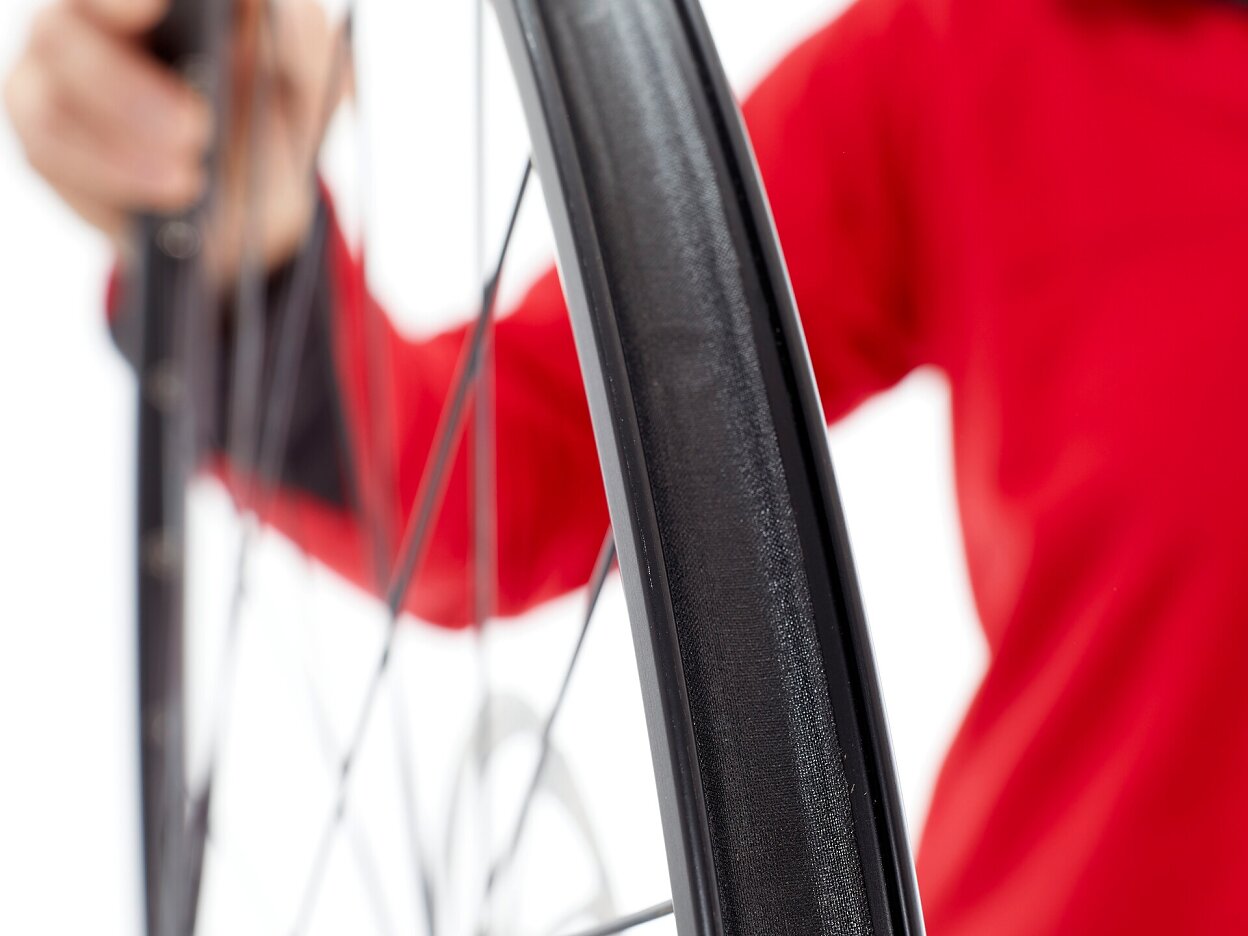

- Belting of components, nails, screws, bicycle, rims etc.
- Floor marking
- Sandblasting
- Floor coating
Sustainable Aspects
- 64% bio-based carbon content (DIN EN 16640)
Product Construction
| Adhesive Type | natural rubber |
|---|---|
| Backing material | Acrylic-coated cloth |
| Total sustainable product content excluding liners | Total sustainable product excl. liners by weight (acc. EN 16785): 60 %, Total bio-based carbon content excl. liners (acc. DIN EN 16640): 64 % |
| Total thickness | 300 µm |
Product Construction
| Adhesive Type | natural rubber |
|---|---|
| Backing material | Acrylic-coated cloth |
| Total sustainable product content excluding liners | Total sustainable product excl. liners by weight (acc. EN 16785): 60 %, Total bio-based carbon content excl. liners (acc. DIN EN 16640): 64 % |
| Total thickness | 300 µm |
Properties / Performance Values
| Elongation at break | 12 % |
|---|---|
| Tensile strength | 100 N/cm |
| Hand tearability | very good |
| Temperature resistance (30 min) | 140 °C |
| Abrasion resistance | very good |
| Mesh | 145 threads/inch² |
| Straight tear edge | very good |
| Temperature resistance (removability from aluminum after 30 min exposure) | 140 °C |
| Easy to write on | yes |
| Available as Spools | yes |
| Water resistance | good |
| Easy to remove | yes |
Properties / Performance Values
| Elongation at break | 12 % |
|---|---|
| Tensile strength | 100 N/cm |
| Hand tearability | very good |
| Temperature resistance (30 min) | 140 °C |
| Abrasion resistance | very good |
| Mesh | 145 threads/inch² |
| Straight tear edge | very good |
| Temperature resistance (removability from aluminum after 30 min exposure) | 140 °C |
| Easy to write on | yes |
| Available as Spools | yes |
| Water resistance | good |
| Easy to remove | yes |
Adhesion to Values
| Adhesion to Steel | 5.8 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel | 5.8 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
