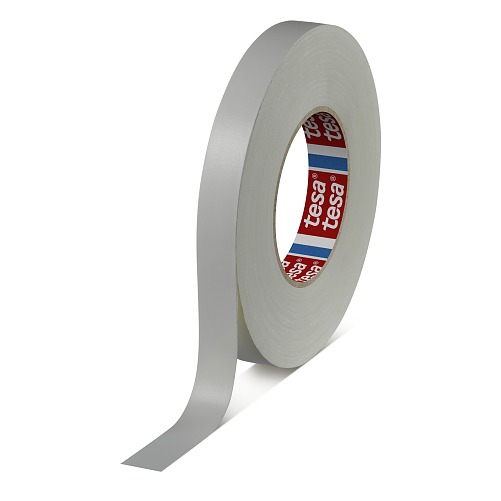

tesa® 4660
Printable acrylic coated cloth tape
Sustainable Aspects
- 74% bio-based carbon content (DIN EN 16640)
- High adhesion on almost every surface
- Removable without residues
- Excellent flexo printable surface
Product description
tesa® 4660 is a special acrylic coated cloth tape with a printable surface, which is available in 2 colors: white and yellow. It is based on a 145 mesh woven cotton fabric backing and a thermo-setting natural rubber adhesive. A product version with paper liner is available (PV9). tesa® 4660 is the ideal material for label printers since it is flexible, temperature resistant and clean removable material.
Product details and specifications
Product Features
- High adhesion on almost every surface
- Removable without residues
- Excellent flexo printable surface
- High temperature resistance
- Very high tensile strength
- Excellent tape for die-cuts, available with liner as tesa® 4660 PV9
Application Fields
tesa® 4660 is mostly used for wire marking and other elements identification of electric devices.
- Bundling and marking of cable harnesses for electrical equipment and insulation
- Marking in switch boxes
- Marking in electrical components
- Closing of tins and tubes
- Labelling with printed die-cuts
- Window flange
Sustainable Aspects
- 74% bio-based carbon content (DIN EN 16640)
Product Construction
| Adhesive Type | thermosetting natural rubber |
|---|---|
| Backing material | Acrylic-coated cloth |
| Color of liner | yellow |
| Liner Type | paper |
| Thickness of liner | 76 µm |
| Total sustainable product content excluding liners | Total sustainable product excl. liners by weight (acc. EN 16785): 68 %, Total bio-based carbon content excl. liners (acc. DIN EN 16640): 74 % |
| Total thickness | 260 µm |
Product Construction
| Adhesive Type | thermosetting natural rubber |
|---|---|
| Backing material | Acrylic-coated cloth |
| Color of liner | yellow |
| Liner Type | paper |
| Thickness of liner | 76 µm |
| Total sustainable product content excluding liners | Total sustainable product excl. liners by weight (acc. EN 16785): 68 %, Total bio-based carbon content excl. liners (acc. DIN EN 16640): 74 % |
| Total thickness | 260 µm |
Properties / Performance Values
| Elongation at break | 7.5 % |
|---|---|
| Tensile strength | 100 N/cm |
| Straight tear edge | very good |
| Hand tearability | very good |
| Abrasion resistance | very good |
| Easy to write on | yes |
| Temperature resistance (30 min) | 180 °C |
| Easy to remove | yes |
| Suitable for die cutting | yes |
| Mesh | 145 threads/inch² |
| Temperature resistance (removability from aluminum after 30 min exposure) | 180 °C |
Properties / Performance Values
| Elongation at break | 7.5 % |
|---|---|
| Tensile strength | 100 N/cm |
| Straight tear edge | very good |
| Hand tearability | very good |
| Abrasion resistance | very good |
| Easy to write on | yes |
| Temperature resistance (30 min) | 180 °C |
| Easy to remove | yes |
| Suitable for die cutting | yes |
| Mesh | 145 threads/inch² |
| Temperature resistance (removability from aluminum after 30 min exposure) | 180 °C |
Adhesion to Values
| Adhesion to Steel | 4 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel | 4 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
