Product information

tesa^® 4688

Name: tesa® 4688 schwarz 25 mm
Brand: tesa®

Standard polyethylene coated cloth tape

Product description

tesa^® 4688 is a standard grade polyethylene coated cloth tape. It is based on a 55 mesh woven PET/rayon fabric backing coated with a pressure sensitive natural rubber adhesive. tesa^® 4688 is a typical repairing tape, convenient for a variety of needs with very good handling characteristics.

Features:

strong adhesion, even on rough surfaces
waterproof
easy to unwind
tesa^® 4688 is certified by AREVA according to requirements of the Siemens AG standard TLV 9027/01/06 for nuclear power station: total halogen content < 1000 ppm; total sulphur content < 1000 ppm

Main applications

Marking, masking, packaging, protecting, fastening, closing

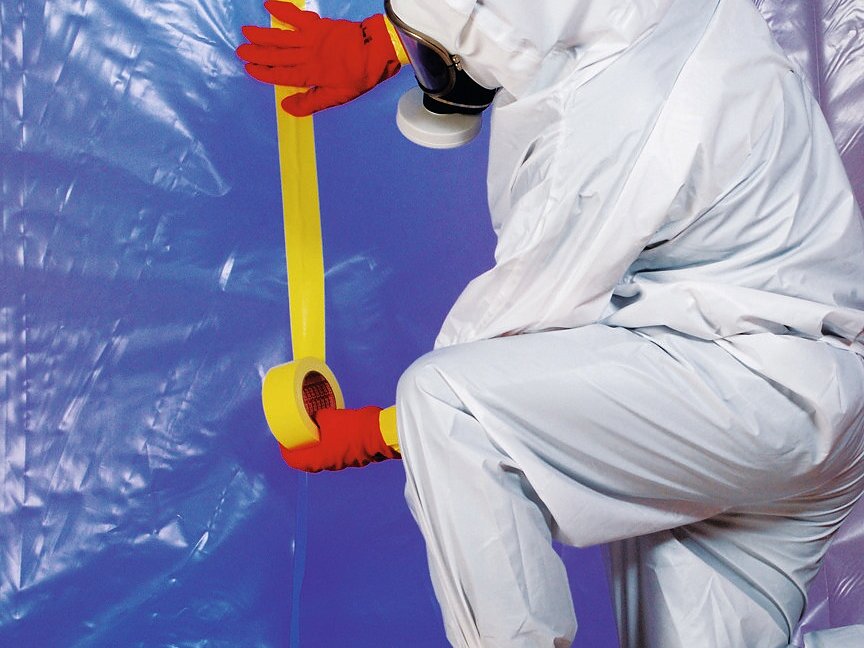

Bonding of construction films
Closing of cartons, tins, etc.
Fixing of wires

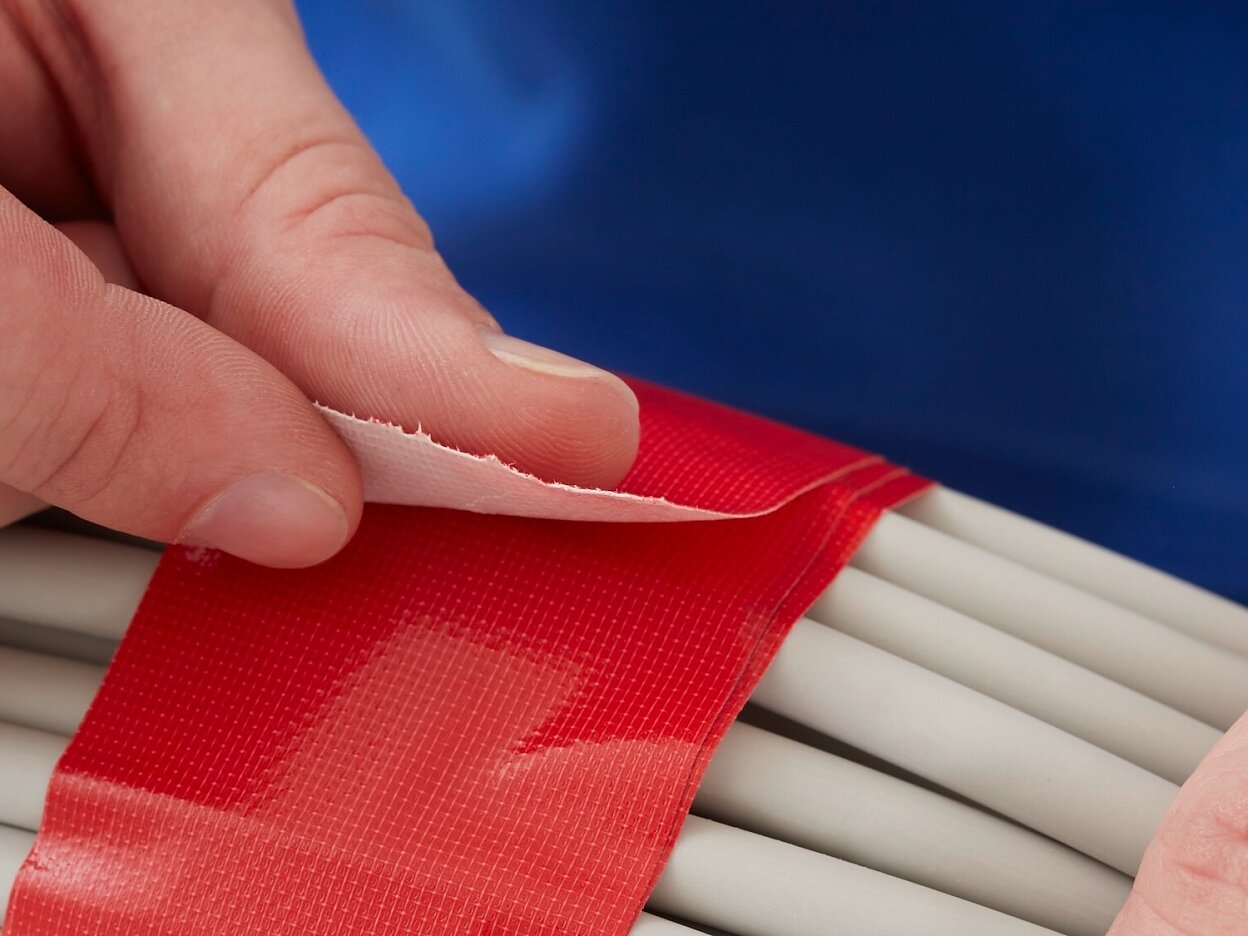

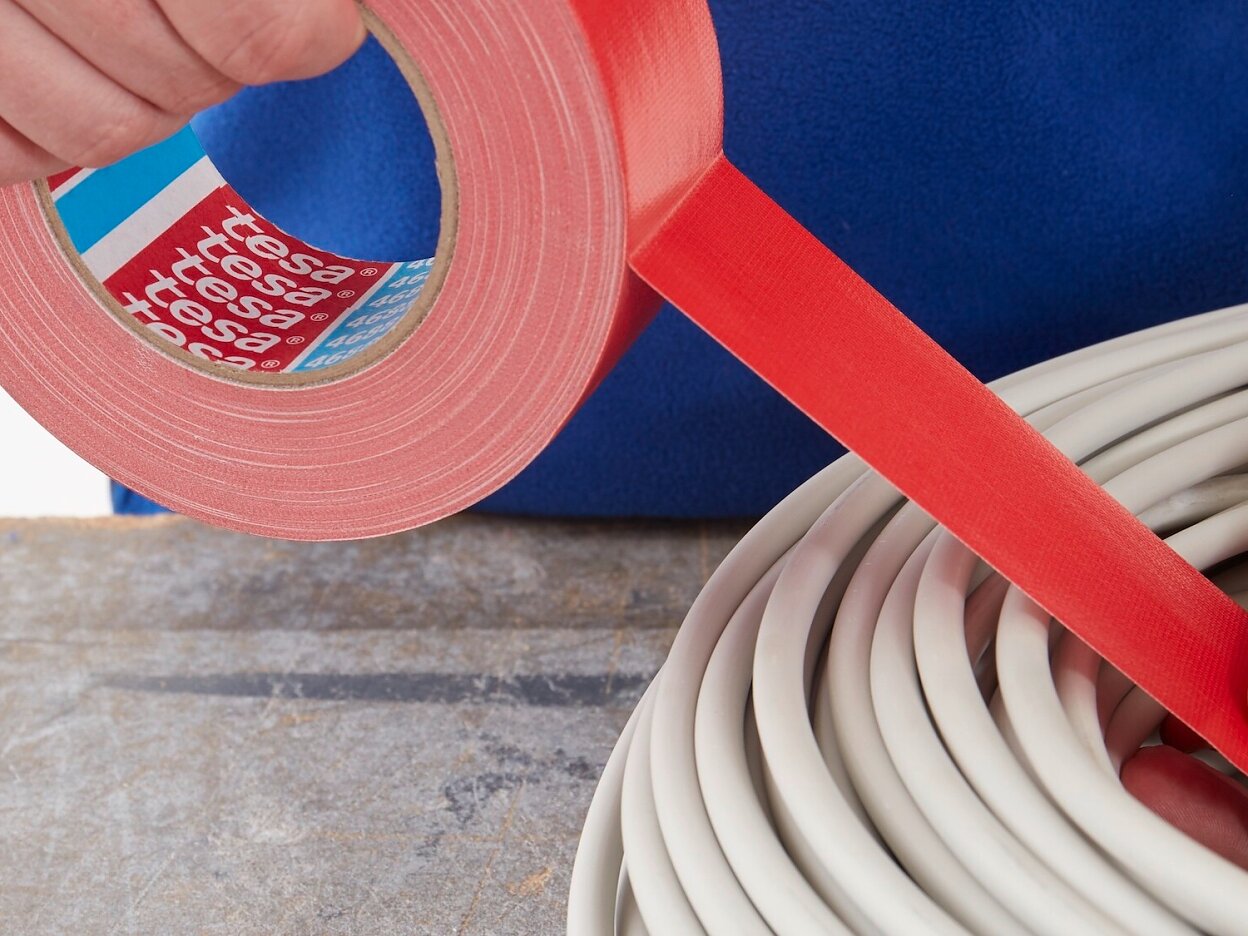

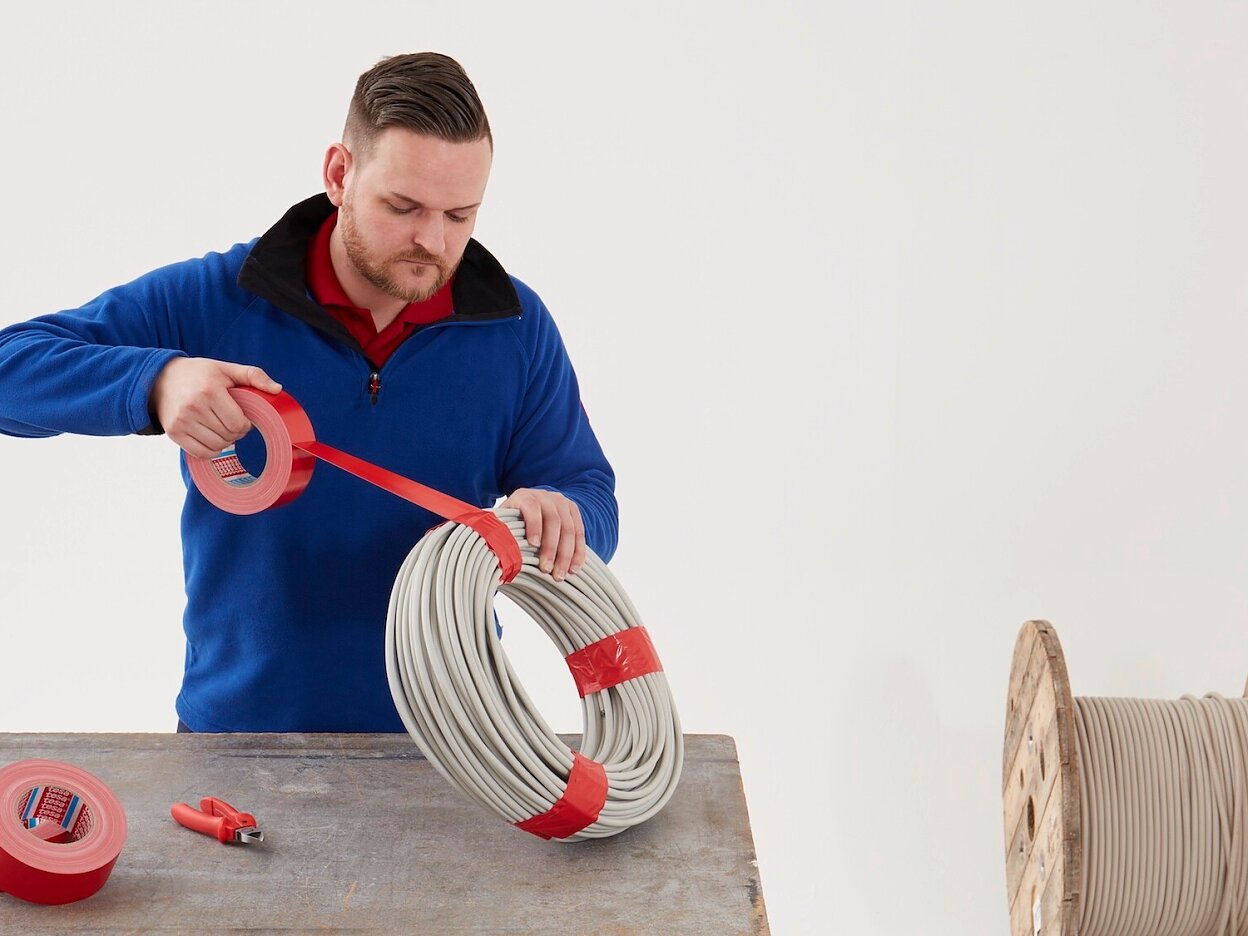

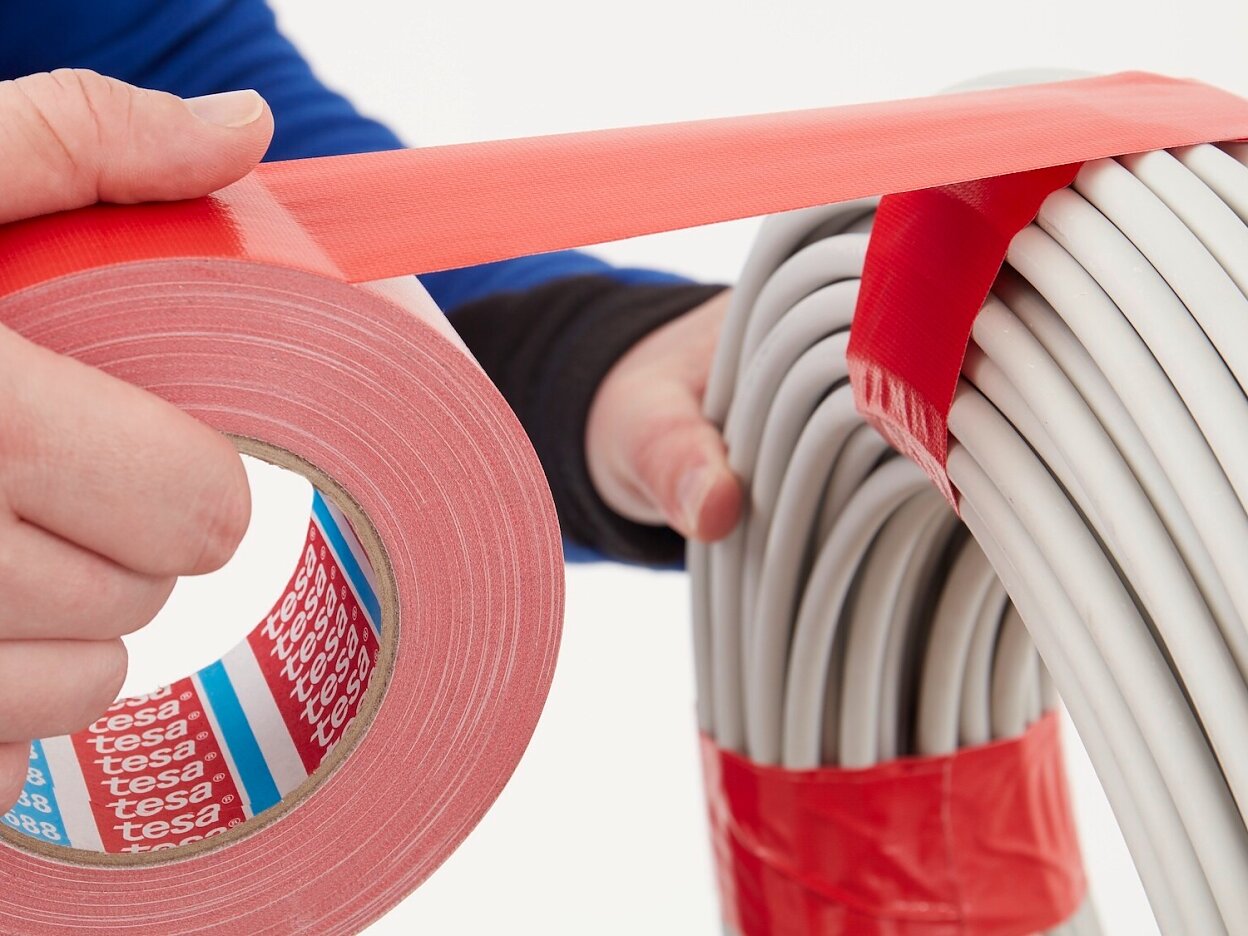

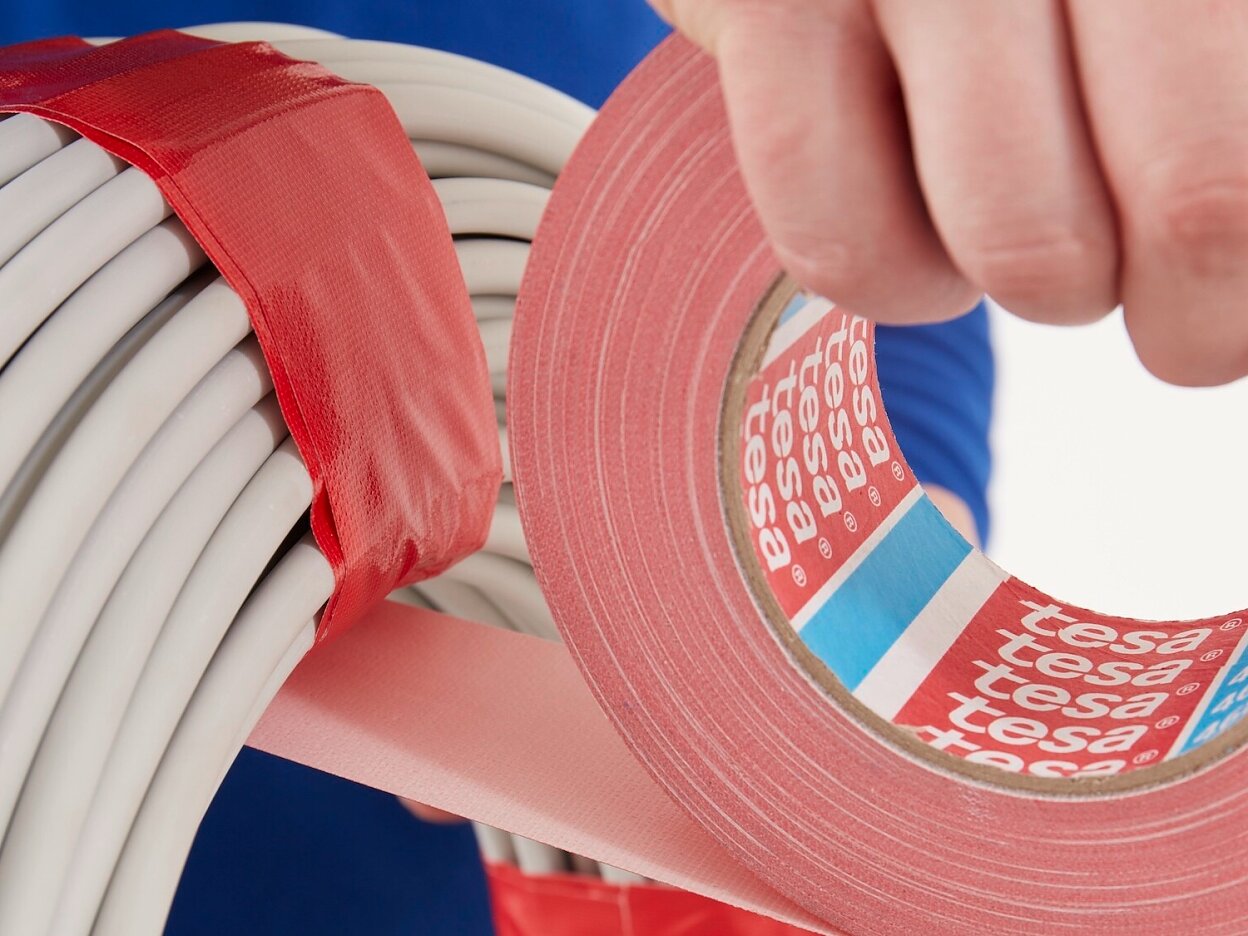

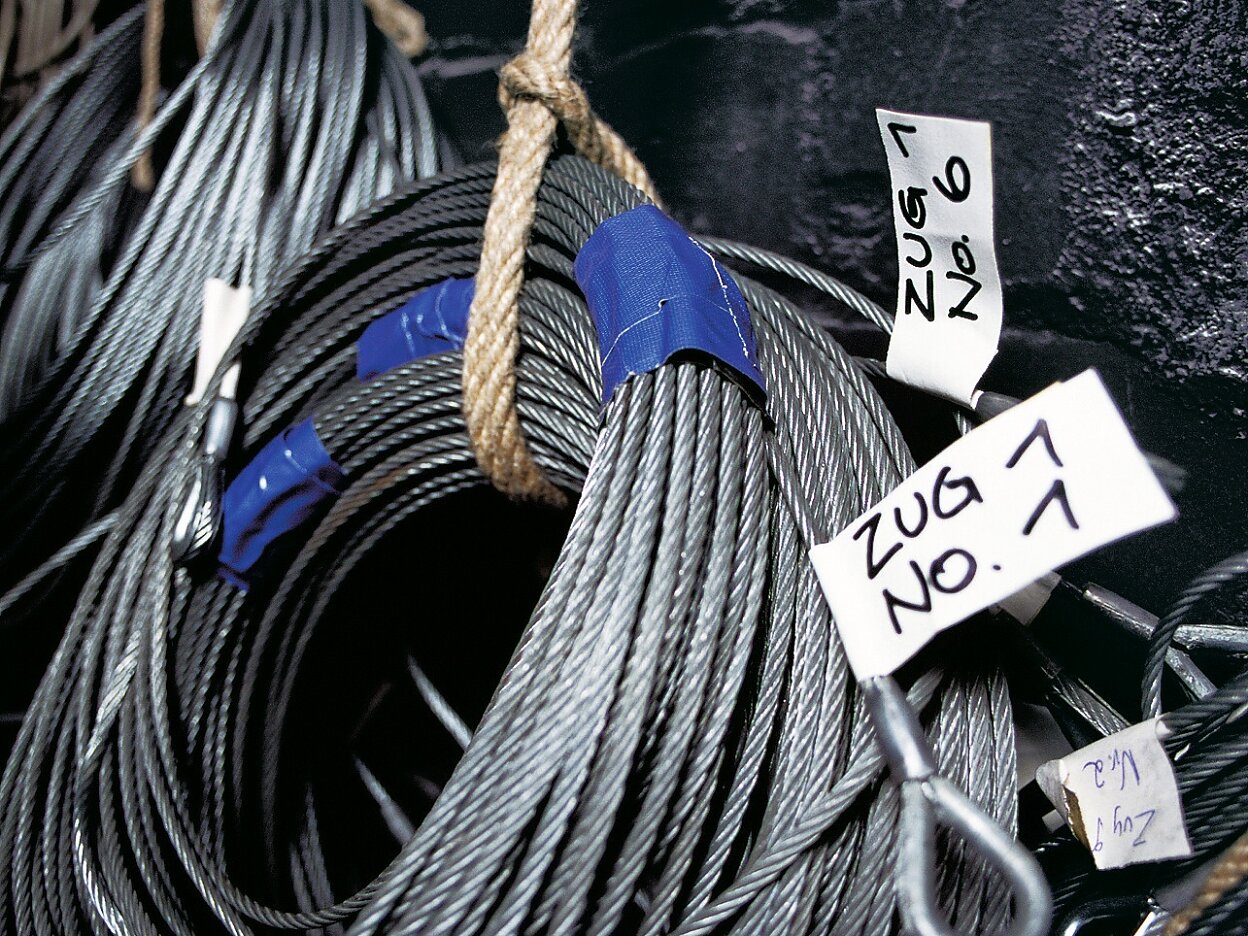

Bundling of cables
Splicing of films, marking of parts during maintenance in nuclear power plants

tesa-4688-standard-polyethylene-cloth-tape-black-046880000000-pr

tesa-4688-standard-polyethylene-cloth-tape-silver-gray-046880000100-pr

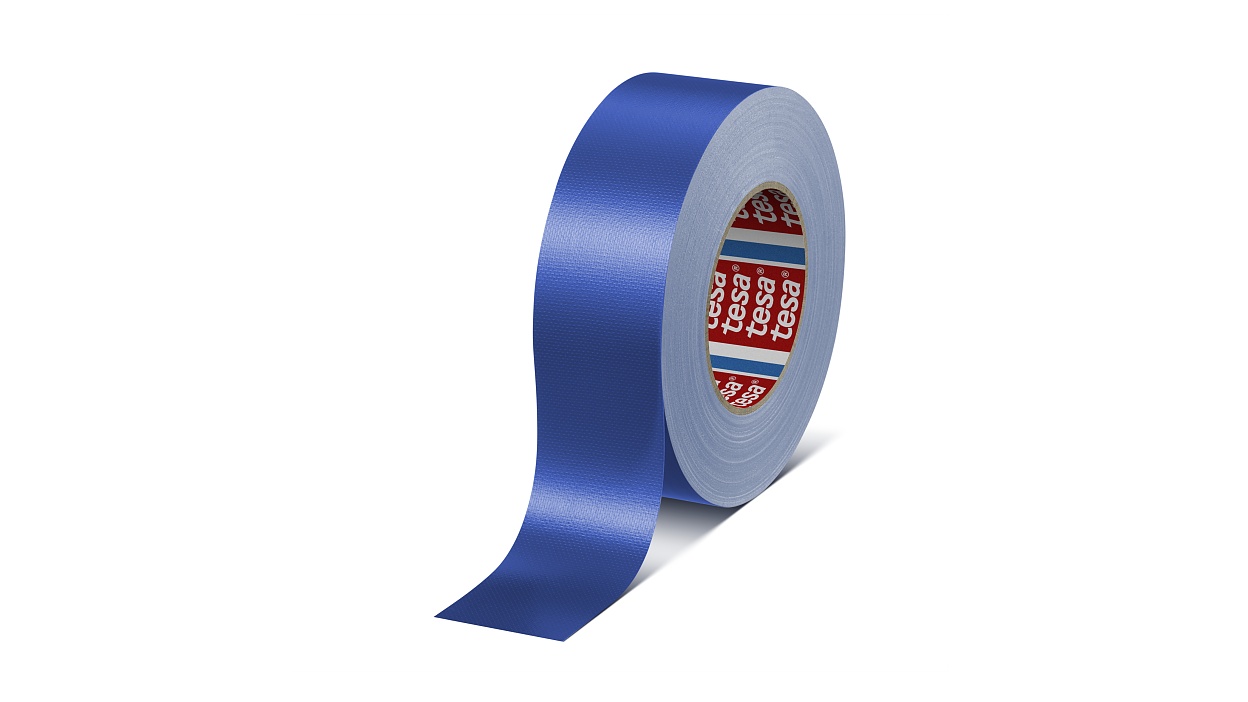

tesa-4688-standard-polyethylene-cloth-tape-blue-046880002300-pr

tesa 4688 standard polyethylene coated cloth tape red 01 ap

tesa 4688 standard polyethylene coated cloth tape red step1of5 ap

tesa 4688 standard polyethylene coated cloth tape red step2of5 ap

tesa 4688 standard polyethylene coated cloth tape red step3of5 ap

tesa 4688 standard polyethylene coated cloth tape red step4of5 ap

tesa 4688 standard polyethylene coated cloth tape red step5of5 ap

tesa 4688 standard polyethylene coated cloth tape red video

tesa_04688_as_002

tesa-4688-standard-polyethylene-cloth-tape-black-046880000000-pr

tesa-4688-standard-polyethylene-cloth-tape-silver-gray-046880000100-pr

tesa-4688-standard-polyethylene-cloth-tape-blue-046880002300-pr

tesa 4688 standard polyethylene coated cloth tape red 01 ap

tesa 4688 standard polyethylene coated cloth tape red step1of5 ap

tesa 4688 standard polyethylene coated cloth tape red step2of5 ap

tesa 4688 standard polyethylene coated cloth tape red step3of5 ap

tesa 4688 standard polyethylene coated cloth tape red step4of5 ap

tesa 4688 standard polyethylene coated cloth tape red step5of5 ap

tesa_04688_ap_002_fullsize

tesa_04688_ap_003_fullsize

tesa_04688_ap_004_fullsize

Technical properties

Backing material

PE extruded cloth

Total thickness

260 µm

Type of adhesive

natural rubber

Adhesion to steel

4.5 N/cm

Elongation at break

9 %

Tensile strength

52 N/cm

Temperature resistance (30 min)

110 °C

Mesh

55 count per square inch

Dielectric breakdown voltage

2900 volt

Rating properties

Hand tearability

Straight tear edges

Certified according to

TLV 9027/01/06 for use in nuclear power plant

Abrasion resistance

Water resistance

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
