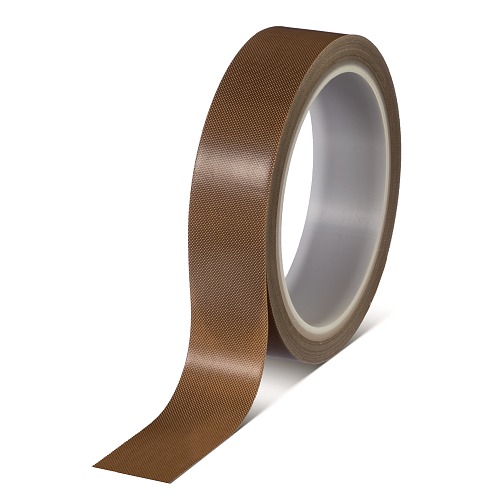

tesa® 4818
Heat Seal Release Tape
Product Features
- low friction
- anti-stick properties on its surface
- It is is chemically, mechanically, and thermally resistant.
Product description
The pressure-sensitive adhesive tape consist of a PTFE-saturated glass cloth and a silicone adhesive.
Product details and specifications
Product Features
- low friction
- anti-stick properties on its surface
- It is is chemically, mechanically, and thermally resistant.
Application Fields
- Providing anti-stick properties to the equipment for heat sealing of films in packaging lines of various industries
- Masking applications above 200°C
- Gliding properties for material transportation
Product Construction
| Adhesive Type | silicone |
|---|---|
| Backing material | PTFE coated glass cloth |
| Liner Type | none |
| Total thickness | 180 µm |
Product Construction
| Adhesive Type | silicone |
|---|---|
| Backing material | PTFE coated glass cloth |
| Liner Type | none |
| Total thickness | 180 µm |
Properties / Performance Values
| Elongation at break | 5 % |
|---|---|
| Tensile strength | 310 N/cm |
| Mesh | 108 threads/inch² |
| Easy to remove | yes |
| Available as Spools | no |
| Unwind force | 4.5 N/cm |
| Dielectric breakdown voltage | 4,900 V |
| Hand tearability | low |
| Easy to write on | no |
| Tensile strength (crosswise) | 490 N/cm |
| Suitable for die cutting | yes |
| Operation temperature up to | 260 °C |
| Abrasion resistance | very good |
Properties / Performance Values
| Elongation at break | 5 % |
|---|---|
| Tensile strength | 310 N/cm |
| Mesh | 108 threads/inch² |
| Easy to remove | yes |
| Available as Spools | no |
| Unwind force | 4.5 N/cm |
| Dielectric breakdown voltage | 4,900 V |
| Hand tearability | low |
| Easy to write on | no |
| Tensile strength (crosswise) | 490 N/cm |
| Suitable for die cutting | yes |
| Operation temperature up to | 260 °C |
| Abrasion resistance | very good |
Adhesion to Values
| Adhesion to Steel | 4.5 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel | 4.5 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
