tesa® 8854
100µm double sided translucent non-woven tape
Product Features
- High adhesion level on various kinds of foam, plastic and metal surfaces
- Excellent temperature resistance performance
- Good converting properties
Product description

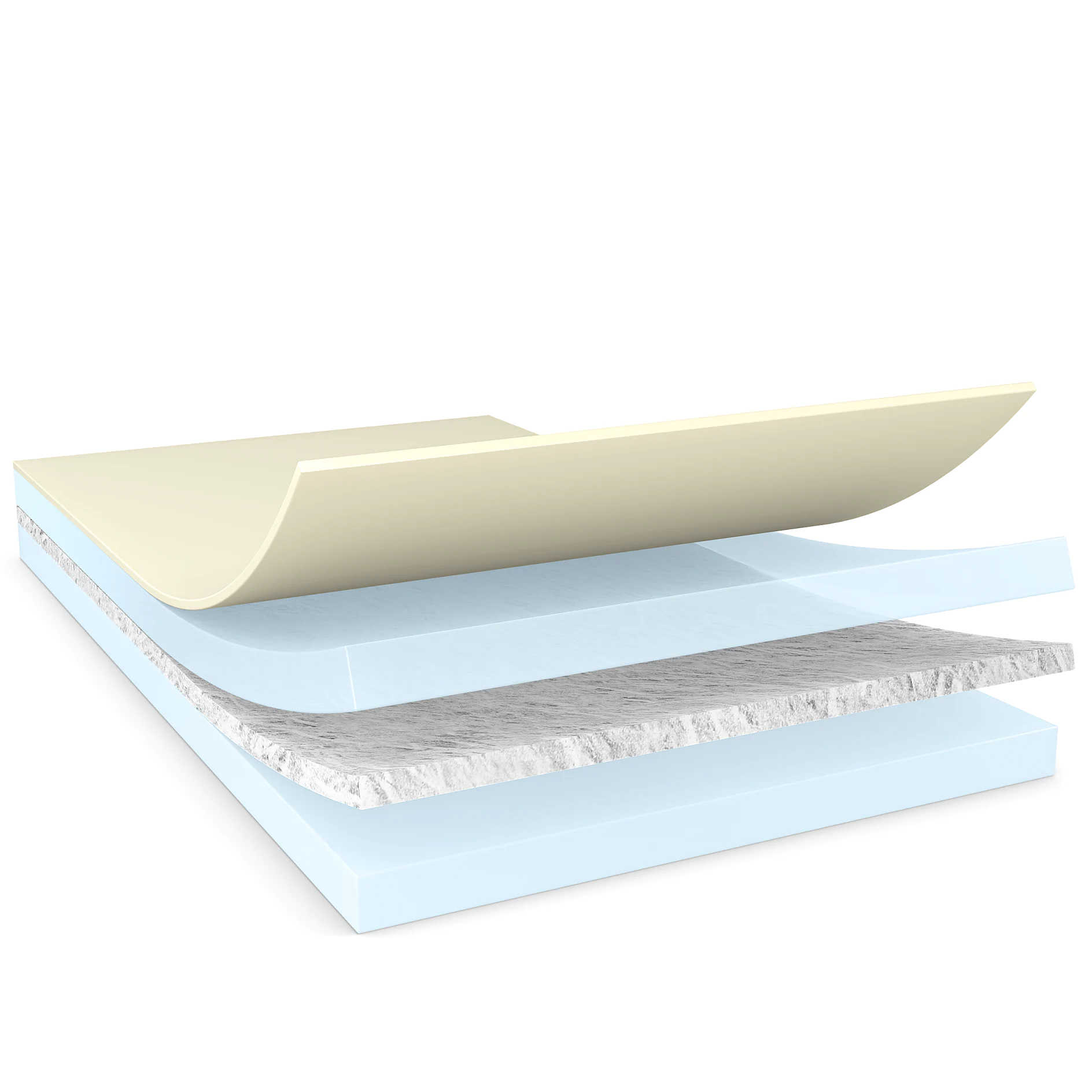

tesa® 8854 is a 100µm double sided translucent non-woven tape consisting of a non-woven backing and a tackified acrylic adhesive.
Product details and specifications
Product Features
- High adhesion level on various kinds of foam, plastic and metal surfaces
- Excellent temperature resistance performance
- Good converting properties
Application Fields
- Mounting and assembly of components into electronic devices
- Mounting of nameplates
- Lamination of foam and felt
Product Construction
| Backing material | non-woven |
|---|---|
| Colour | translucent |
| Colour of liner | brown |
| Thickness of liner | 71 µm |
| Total thickness | 100 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | glassine |
Product Construction
| Backing material | non-woven |
|---|---|
| Colour | translucent |
| Colour of liner | brown |
| Thickness of liner | 71 µm |
| Total thickness | 100 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | glassine |
Properties / Performance Values
| Humidity resistance | very good |
|---|---|
| Ageing resistance (UV) | very good |
| Tack | very good |
| Softener resistance | medium |
| Temperature resistance long term duration | 80 °C |
| Temperature resistance short term duration | 260 °C |
| Static shear resistance at 23°C | good |
| Chemical resistance | good |
Properties / Performance Values
| Humidity resistance | very good |
|---|---|
| Ageing resistance (UV) | very good |
| Tack | very good |
| Softener resistance | medium |
| Temperature resistance long term duration | 80 °C |
| Temperature resistance short term duration | 260 °C |
| Static shear resistance at 23°C | good |
| Chemical resistance | good |
Adhesion to Values
| Adhesion to ABS (initial) | 6.7 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 8.2 N/cm |
| Adhesion to Glass (initial) | 7.7 N/cm |
| Adhesion to Glass (after 14 days) | 9.8 N/cm |
| Adhesion to PC (initial) | 8.3 N/cm |
| Adhesion to PC (after 14 days) | 10 N/cm |
| Adhesion to PE (initial) | 3.4 N/cm |
| Adhesion to PE (after 14 days) | 3.8 N/cm |
| Adhesion to Steel (initial) | 8.1 N/cm |
| Adhesion to Steel (after 14 days) | 9.4 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 6.7 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 8.2 N/cm |
| Adhesion to Glass (initial) | 7.7 N/cm |
| Adhesion to Glass (after 14 days) | 9.8 N/cm |
| Adhesion to PC (initial) | 8.3 N/cm |
| Adhesion to PC (after 14 days) | 10 N/cm |
| Adhesion to PE (initial) | 3.4 N/cm |
| Adhesion to PE (after 14 days) | 3.8 N/cm |
| Adhesion to Steel (initial) | 8.1 N/cm |
| Adhesion to Steel (after 14 days) | 9.4 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
