Ink test

tesa LSE Mounting Solutions

for difficult to bond substrates

About tape assortment Features Downloads Contact Us

In order to achieve sufficient contact points for the formation of high adhesion forces, the pressure-sensitive adhesive must be able to sufficiently wet the substrate to be bonded. Wetting largely depends on the surface tension or energy of the substrate and the pressure-sensitive adhesive. LSE substrates are defined as low-surface energy tension.

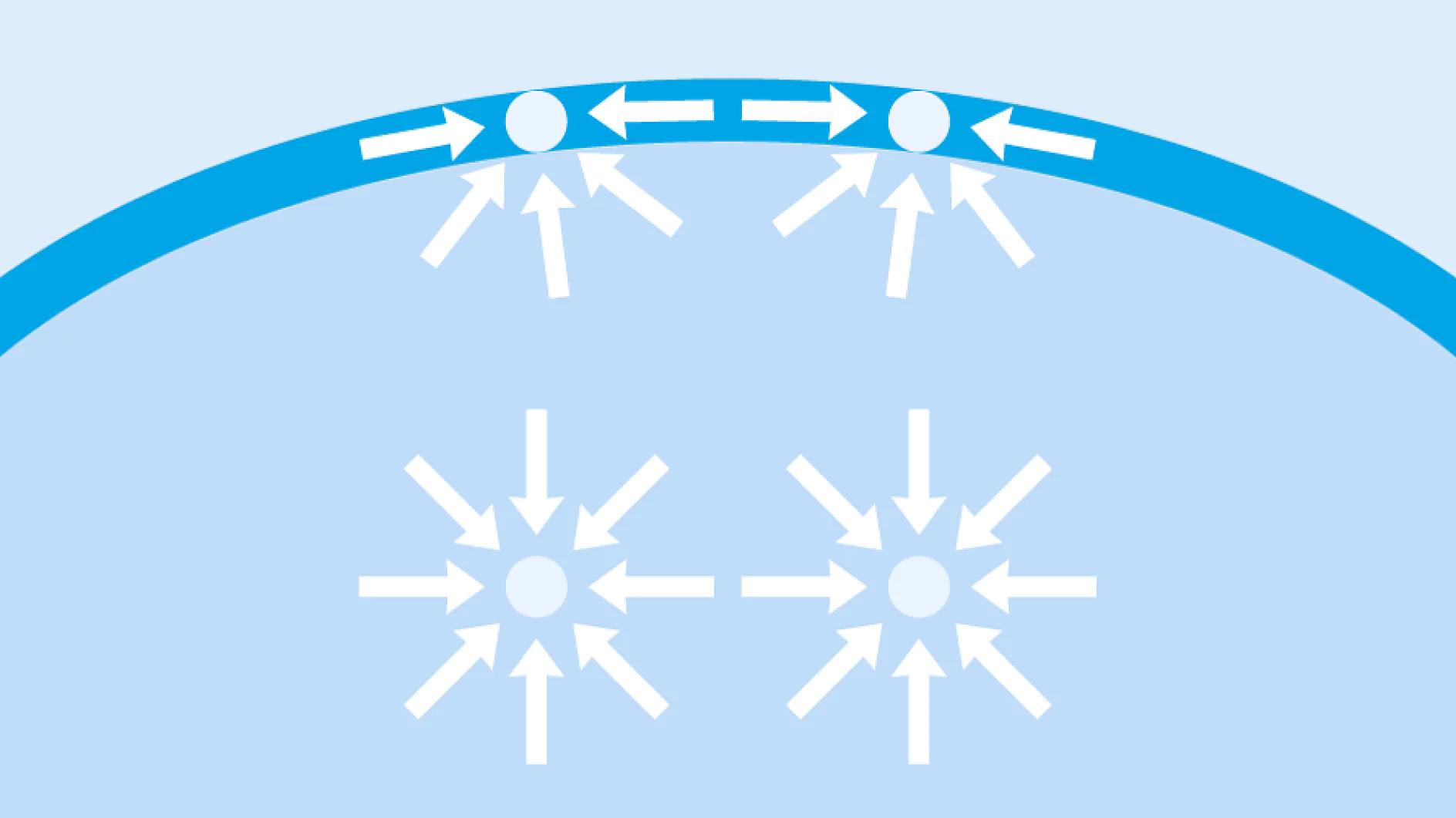

Surface tension of water molecules
Surface tension of water molecules

Double-Sided Adhesive Tape: Differential Si/Ac for Silicone and PTFE Substrates1

ProductThickness​
[µm]
Color

Liner​: Si / Ac

Standard log roll sizes:
length [m]   width [mm]
MOQ
in log roll
AdhesiveBackingPeel adhesion to Silicone [N/cm]
(initial / 14 days)
Temperature resistance
short term  [°C]
tesa® 88665115Transparent50µ PET / 80µ PCK 100 : 9801Si / AcPET6,3 / 9,5150
tesa® 6152630Transparent50µ PET / 50µ PET100 : 1.2405Si / AcPET3,0 / 4,5120
tesa® 6153250Transparent50µ PET / 50µ PET100 : 1.2405Si / AcPET3,0 / 4,5120
tesa® 61528100Transparent50µ PET / 50µ PET100 : 1.2405Si / AcPET2,8 / 4,0120
tesa® 61529140Transparent50µ PET / 50µ PET100 : 1.2405Si / AcPET3,0 / 4,0 120
tesa® 61520200Transparent50µ PET / 50µ PET100 : 1.24012Si / AcPET3,1 / 4,4120

Double-Sided Adhesive Tape: Standard LSE Surfaces1

ProductThickness​
[µm]
ColorLiner

Standard log roll width​ [mm]

AdhesiveBackingPeel adhesion to PP [N/cm] (initial/three days)Temperature resistance [°C]
tesa® 66022220TransparentBrown/Blue Logo1,150Acrylic​None14.0/16.0​200/-
tesa® 4965205TransparentMultiple1,372Acrylic​PET6.8/7.9 (14 days)​200/100
tesa® 51970220TransparentBrown1,372Acrylic​PP6.8/8.8 (14 days)​130/80
tesa® 51570110TranslucentBrown1,400 RubberNon-woven7.0/12.0 (14 days)​40/80
tesa® 755xx50, 75, 125TranslucentBrown1,372Acrylic​None​11.0 (initial on steel)​100/200
tesa® 92105500BlackTransparent610 Performance polymer foam None​25/30​–30°C to 100°C
tesa® 92108800BlackTransparent610 Performance polymer foam None​28/36​–30°C to 100°C
tesa® 921111,1BlackTransparent610 Performance polymer foam None​29/40​–30°C to 100°C
tesa®  77805500GrayRoyal Blue900​LSEAcrylic foam​26/28​​–40 to +80°C
tesa® 77808800GrayRoyal Blue900​LSEAcrylic foam​28/31​​–40 to +80°C
tesa®  778111,1GrayRoyal Blue900​LSEAcrylic foam​32/35​–40 to +80°C
tesa®  778151,5GrayRoyal Blue900​LSEAcrylic foam​36/39​–40 to +80°C
tesa® 649121,2BlackBrown1,240​RubberPE foam20/20 (after 14 days)​–40°C to reliable performance to higher temperatures
Features

Main Product Features

High bonding
Conformable
Low bonding pressure
Good wetting
Chemical resistance
Anti-repulsion
Impact resistance
Compressible
LSE performance
Quick bonding
