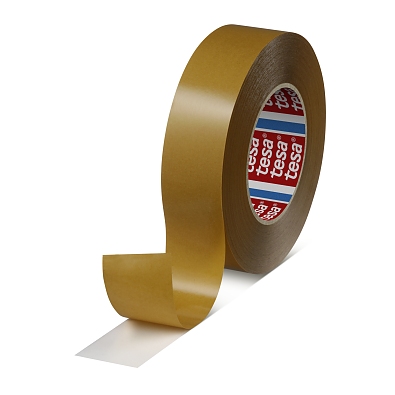

tesa® 4962

160 µm double sided translucent premium non woven tape

The product is available in our partners' shops

Sustainable Aspects

Responsibly sourced paper liner (certified)
Unbleached paper with 30% recycled fibers

Product Features

Reliable bond, often also on low surface energy surfaces
Skin contact certification according to ISO 10993-5 and ISO 10993-10
Light and aging-resistant acrylic adhesive for long-term applications

All product features

Product description

tesa® 4962 is a double-sided non-woven industrial mounting and splicing tape with a highly tackified acrylic adhesive. The premium non-woven tape is, for instance, used for mounting signs and nameplates or other mounting and high-performance lamination applications. tesa® 4962 is especially designed to connect flexible materials to one another. The mounting and splicing tape is able to withstand numerous environmental factors such as humidity, UV light, and temperatures of up to 200°C for limited periods of time. The tackified acrylic adhesive offers excellent hold on various surfaces, very high tack, and good shear strength. The adhesive is coated on a flexible and conformable cellulose non-woven backing that even conforms to difficult 3D shapes.
tesa® 4962 is also available in a 100 µm version (tesa® 4959).

Product details and specifications

Product Features

Reliable bond, often also on low surface energy surfaces
Skin contact certification according to ISO 10993-5 and ISO 10993-10
Light and aging-resistant acrylic adhesive for long-term applications
Excellent initial tack and peel adhesion
Good converting and die-cutting properties
Highly conformable to follow difficult 3D shapes due to non-woven backing

Application Fields

tesa® 4962 is ideally used for industrial mounting, high-performance lamination, and splicing applications
Mounting signs, covers, nameplates, and door linings in the automotive industry
Laminating insulation materials and foams for HVAC (heating, ventilation, and air conditioning) seals
Mounting plastic bags, dispatch bags, continuous stationery, posters, etc.
Splicing of paper and film webs

Sustainable Aspects

Responsibly sourced paper liner (certified)
Unbleached paper with 30% recycled fibers

Backing material	non-woven
Colour	translucent
Colour of liner	brown
Thickness of liner	69 µm
Total thickness	160 µm
Type of adhesive	tackified acrylic
Type of liner	paper
Weight of liner	80 g/m²

Elongation at break	3 %
Tensile strength	8 N/cm
Ageing resistance (UV)	very good
Tack	very good
Temperature resistance short term duration	200 °C
Static shear resistance at 23°C	good
Minimum temperature resistance	-40 °C
Fogging	good
Humidity resistance	very good
Chemical resistance	good
Static shear resistance at 40°C	medium
Temperature resistance long term duration	80 °C

Adhesion to ABS (initial)	11 N/cm
Adhesion to ABS (after 14 days)	12 N/cm
Adhesion to Aluminium (initial)	10 N/cm
Adhesion to Aluminium (after 14 days)	10.5 N/cm
Adhesion to PC (initial)	13 N/cm
Adhesion to PC (after 14 days)	14 N/cm
Adhesion to PC (covered side, after 14 days)	14 N/cm
Adhesion to PE (initial)	6.5 N/cm
Adhesion to PE (after 14 days)	7 N/cm
Adhesion to PET (initial)	9.5 N/cm
Adhesion to PET (after 14 days)	10.5 N/cm
Adhesion to PP (initial)	8.5 N/cm
Adhesion to PP (after 14 days)	10 N/cm
Adhesion to PS (initial)	12 N/cm
Adhesion to PS (after 14 days)	13 N/cm
Adhesion to PVC (initial)	11 N/cm
Adhesion to PVC (after 14 days)	15 N/cm
Adhesion to Steel (initial)	11.5 N/cm
Adhesion to Steel (after 14 days)	12 N/cm

Sustainability Marker valid for paper liner version.

For spools, it is recommended to use tesa® dispensers to achieve optimal results.
According to VDA278 analysis, tesa® 4962 does not contain any single substances restricted by the drafted GB regulations (China) as well as the indoor concentration guideline by Health, Labour and Welfare Ministry (Japan).

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Contact to Skin Statement_ISO10993_tesa® 4959 & 4962_10_2024 91.5 kB Product information_tesa® 04962_en-GB 114.6 kB

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Name of product	tesa® 4962	tesa® 51571	tesa® 52210	tesa® 52215	tesa® 4914 Low VOC	tesa® 4961	tesa® 51575	tesa® 68644	tesa® 4959	tesa® 68645	tesa® 51570
Total thickness	160 µm	160 µm	100 µm	150 µm	250 µm	205 µm	90 µm	100 µm	100 µm	120 µm	110 µm
Type of adhesive	tackified acrylic	synthetic rubber	water-based acrylic	water-based acrylic	tackified acrylic	natural rubber	water-based acrylic	tackified acrylic	tackified acrylic	tackified acrylic	synthetic rubber
Backing material	non-woven	non-woven	non-woven	non-woven	non-woven	flat paper	non-woven	non-woven	non-woven	non-woven	non-woven
Adhesion to Steel (initial)	11.5 N/cm	12.5 N/cm	6 N/cm	8 N/cm	7 N/cm	5.2 N/cm	3.2 N/cm	8.1 N/cm	8 N/cm	9 N/cm	12 N/cm
Adhesion to Steel (after 14 days)	12 N/cm	13 N/cm	11.2 N/cm	12 N/cm	7.8 N/cm	5.3 N/cm		9.4 N/cm	8.5 N/cm	12 N/cm	13 N/cm
Colour	translucent	translucent	translucent	translucent	translucent	white	translucent	translucent	translucent	translucent
