Additional Info
- Die cuts available as tesa® 54109
- Applicators available for high application efficiency
tesa® 51109
High-temperature fineline tape for design painting in the automotive paint shop
Product Features
- Residue-free removal on painted and non-painted substrates
- Temperature resistance up to 170°C/60 min
- Smooth demasking without tape tearing
Product description

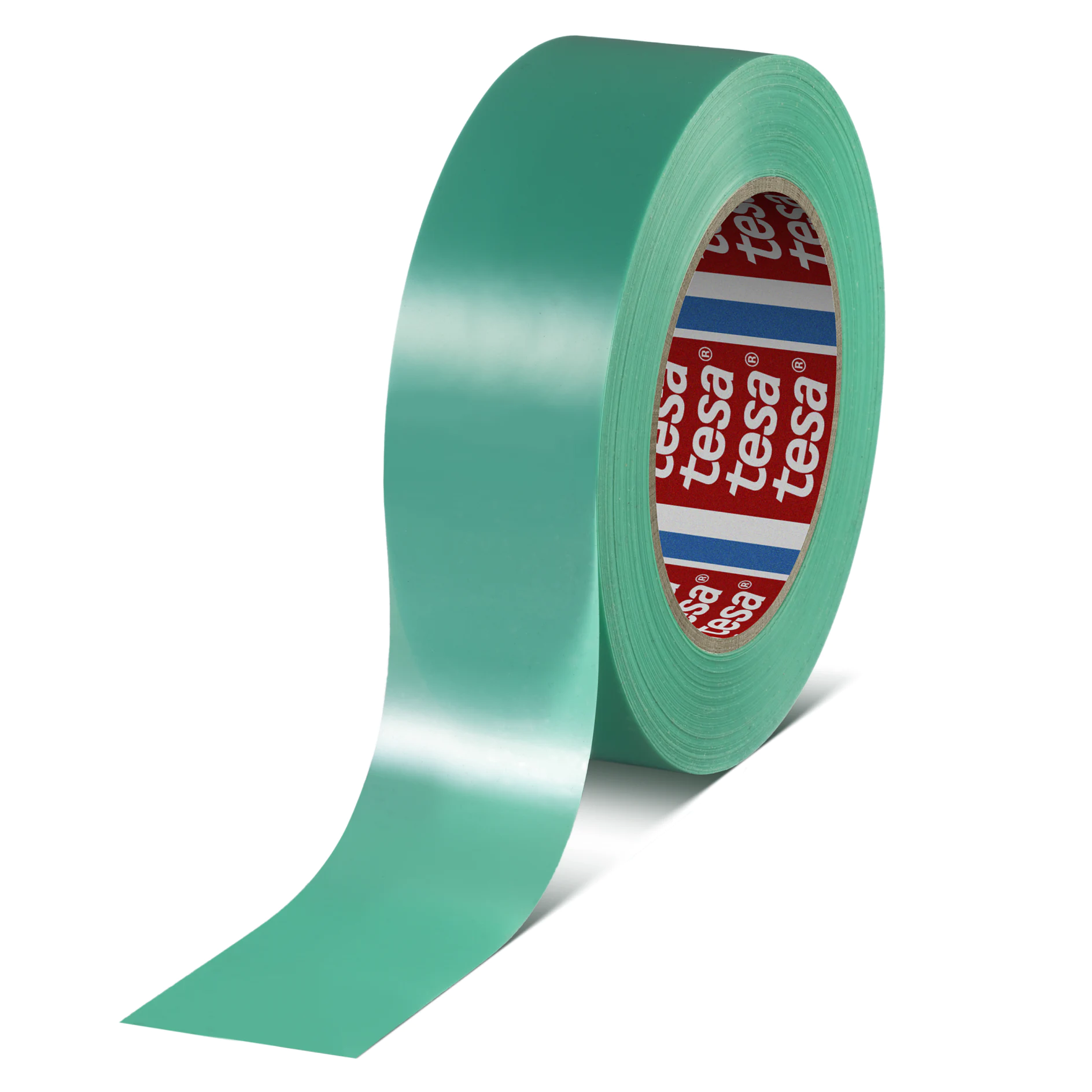

tesa® 51109 is a non-conformable high-temperature-resistant PET fineline tape with a natural rubber adhesive. It is engineered for 2-tone masking applications during OEM paint shop processes. This tape enables precise and fine split lines. To support efficient processing, both standardized and customized applicators are available.
Product details and specifications
Product Features
- Residue-free removal on painted and non-painted substrates
- Temperature resistance up to 170°C/60 min
- Smooth demasking without tape tearing
Application Fields
Suitable for various types of masking applications, e.g.:
- 2-tone painting with high oven temperatures in automotive paint shops
- Non-painted substrates like bumpers
- Masking for fine and exact color split lines
Product Construction
| Backing material | PET film |
|---|---|
| Total thickness | 80 µm |
| Type of adhesive | natural rubber |
Product Construction
| Backing material | PET film |
|---|---|
| Total thickness | 80 µm |
| Type of adhesive | natural rubber |
Properties / Performance Values
| Elongation at break | 150 % |
|---|---|
| Tensile strength | 93 N/cm |
| Temperature resistance (60 min) | 170 °C |
| Sharp colour edge | yes |
| Suitable for die cutting | yes |
| Easy to remove | yes |
Properties / Performance Values
| Elongation at break | 150 % |
|---|---|
| Tensile strength | 93 N/cm |
| Temperature resistance (60 min) | 170 °C |
| Sharp colour edge | yes |
| Suitable for die cutting | yes |
| Easy to remove | yes |
Adhesion to Values
| Adhesion to steel | 3.73 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 3.73 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
