Fineline tape for design and two-tone painting in the automotive industry
Product Features
Easy unwinding for smooth manual or semi-manual tape applications
No ghosting after drying at high temperatures (up to 160°C)
Conformable behavior for masking in narrow curves/areas
All product featuresProduct description

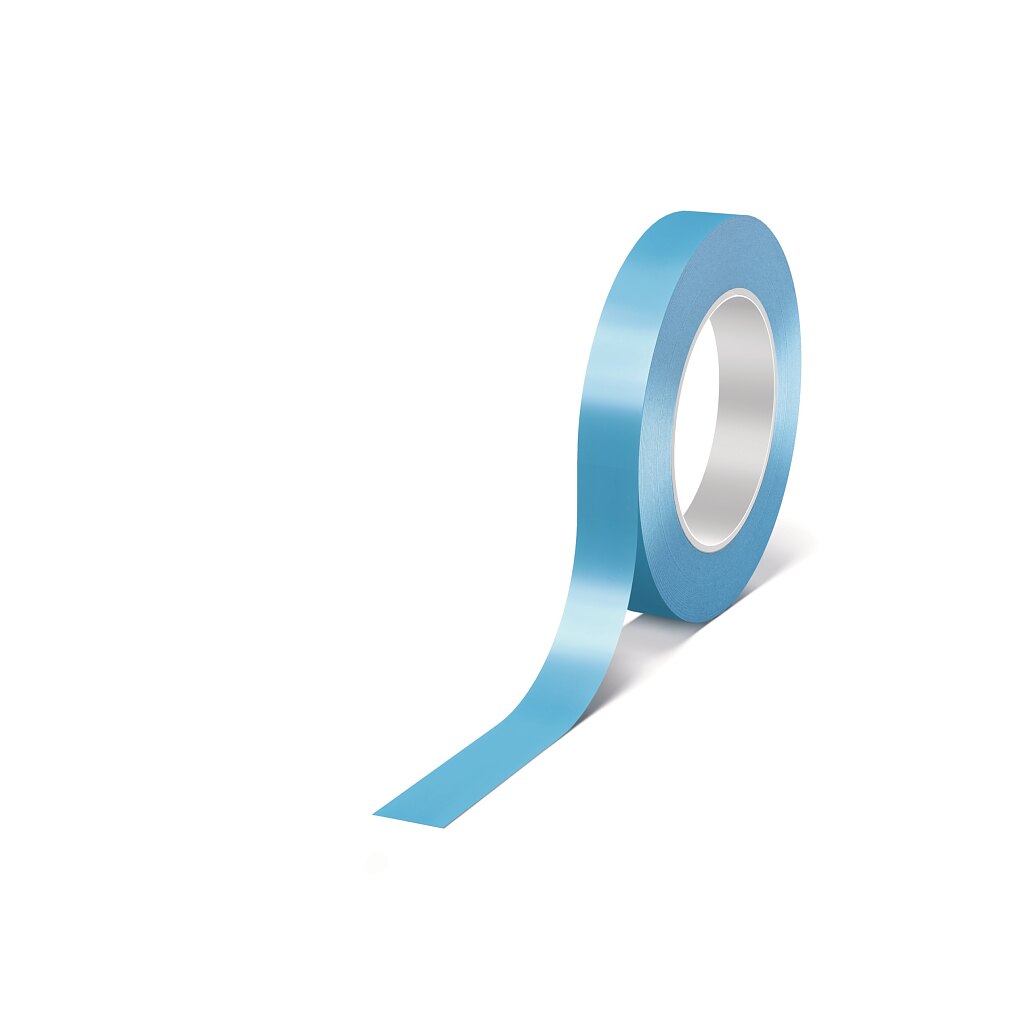

tesa® 50777 is a flexible, highly temperature resistant PVC fineline masking tape with an acrylic adhesive for a wide range of design and two-tone masking applications in the automotive industry.
The soft and flexible PVC backing allows precise masking in tight curves, such as the rear door area. Furthermore, tesa® 50777 features a release, thus ensuring easy and smooth unwinding of the tape.
The acrylic adhesive can be an alternative for paint systems where traditional natural rubber tapes leave ghosting or yellowing. The temperature resistance of 160°C allows the application of tesa® 50777 in most paint shop oven temperatures.
Standardized and customized applicators for tesa® 50777 are available to ensure efficient tape application.
Product details and specifications
Product Features
Easy unwinding for smooth manual or semi-manual tape applications
No ghosting after drying at high temperatures (up to 160°C)
Conformable behavior for masking in narrow curves/areas
Hand-tearable
Application Fields
tesa® 50777 is suitable for various types of masking applications.
Example applications are:
Two-tone painting at high temperatures in automotive paint shops
Masking for high oven drying temperatures
Masking applications in narrow curves
Semi-manual application with tooling support
To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.
Product Construction
Backing material
PVC film
Total thickness
132 µm
Type of adhesive
type: acrylic
Product Construction
Backing material
PVC film
Total thickness
132 µm
Type of adhesive
type: acrylic
Properties / Performance Values
Easy to remove
yes
Suitable for die cutting
yes
Elongation at break
240 %
Tensile strength
30 N/cm
Hand tearability
good
Flame retardance
very good
Properties / Performance Values
Easy to remove
yes
Suitable for die cutting
yes
Elongation at break
240 %
Tensile strength
30 N/cm
Hand tearability
good
Flame retardance
very good
Adhesion to Values
Adhesion to steel
2 N/cm
Adhesion to Values
Adhesion to steel
2 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
