tesa® 75007 Low VOC

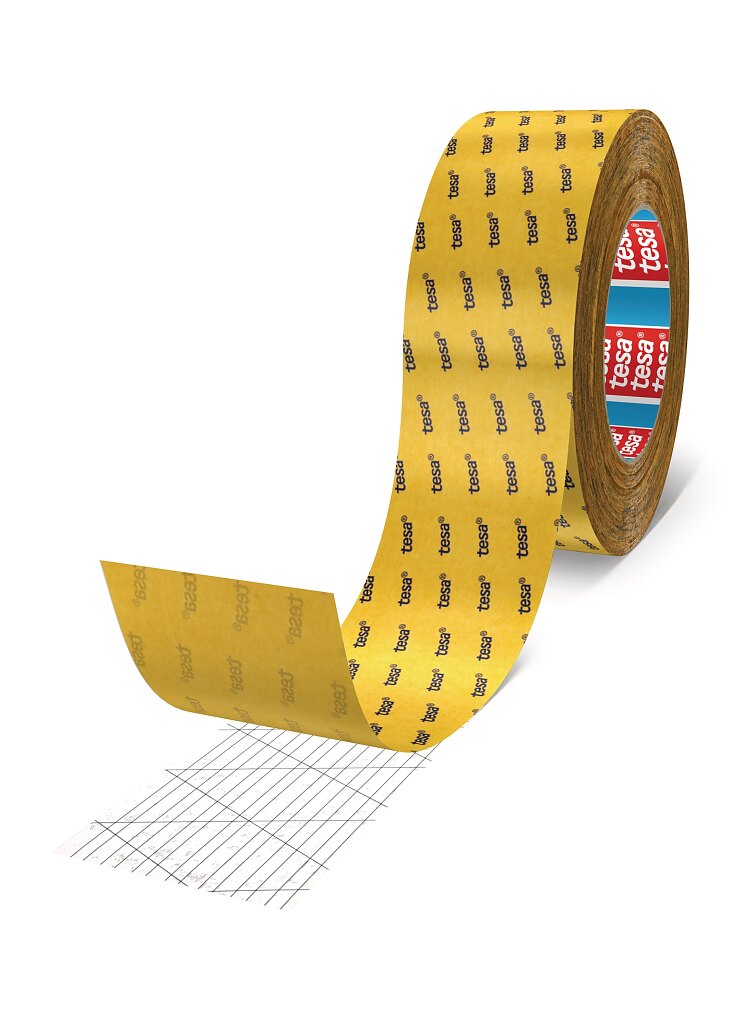

75 µm double-sided, tackified acrylic adhesive tape with PET scrim for mounting and lamination applications in automotive interiors

Product Features

Highly conformable to follow difficult 3-D shapes
Low VOC (acc. GB 27630) – no critical substances detectable
Reinforcement supports converting efficiency

All product features

Product description

tesa® 75007 is a conformable, tackified acrylic adhesive tape with a thickness of 75 µm, reinforced by a PET scrim. This tape has especially been developed for all kinds of demanding lamination and mounting applications. It shows a high humidity resistance and edge repulsion resistance. Due to its low VOC property it is particularly designed to meet automotive interior requirements.

tesa® 75007 is suitable for laminating all kinds of foam, fleece, and felt substrates and mounting light interior components.

This product is also available in 130 µm (tesa® 75013).

Product details and specifications

Product Features

Highly conformable to follow difficult 3-D shapes
Low VOC (acc. GB 27630) – no critical substances detectable
Reinforcement supports converting efficiency
Very good humidity resistance
High initial tack and excellent repulsion resistance
Secure mounting even to nonpolar plastics (PP) and composites (recycled materials)
Very good initial adhesion to a wide variety of interior substrates

Application Fields

tesa® 75007 is suitable for mounting and lamination applications.

Example applications are:

Mounting of light interior trims (plastics, LSE surfaces)
FPC (flexible printed circuits) mounting
Lamination of insulation materials
Laminates for NVH (noise, vibration, and harshness) and BSR (buzz, squeak, and rattle) prevention
Lamination of decorative fabrics
Lamination of foam for HVAC (heating, ventilation, and air conditioning) seals
Mounting of flooring systems

To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.

Backing material	none
Colour	transparent
Colour of liner	brown/blue logo
Thickness of tape	75 µm
Total thickness	75 µm
Type of adhesive	tackified acrylic
Type of liner	glassine

Backing material	none
Colour	transparent
Colour of liner	brown/blue logo
Thickness of tape	75 µm
Total thickness	75 µm
Type of adhesive	tackified acrylic
Type of liner	glassine

Fogging	good
Suitable for rough surfaces	very good
Tack	very good
Minimum temperature resistance	-40 °C
Temperature resistance max	170 °C
Suitable for die cutting	yes
Low VOC	very good

Fogging	good
Suitable for rough surfaces	very good
Tack	very good
Minimum temperature resistance	-40 °C
Temperature resistance max	170 °C
Suitable for die cutting	yes
Low VOC	very good

Adhesion to ABS (initial)	9 N/cm
Adhesion to ABS (after 3 days)	10 N/cm
Adhesion to PC (initial)	10.4 N/cm
Adhesion to PC (after 3 days)	11.3 N/cm
Adhesion to PE (initial)	4.5 N/cm
Adhesion to PE (after 3 days)	4.9 N/cm
Adhesion to PET (initial)	5.5 N/cm
Adhesion to PET (after 3 days)	5.9 N/cm
Adhesion to PP (initial)	5 N/cm
Adhesion to PP (after 3 days)	6 N/cm
Adhesion to PS (initial)	7.7 N/cm
Adhesion to PS (after 3 days)	8.9 N/cm
Adhesion to PVC (initial)	3.9 N/cm
Adhesion to PVC (after 3 days)	8.8 N/cm
Adhesion to Steel (initial)	7.3 N/cm
Adhesion to Steel (after 3 days)	8.6 N/cm

Adhesion to ABS (initial)	9 N/cm
Adhesion to ABS (after 3 days)	10 N/cm
Adhesion to PC (initial)	10.4 N/cm
Adhesion to PC (after 3 days)	11.3 N/cm
Adhesion to PE (initial)	4.5 N/cm
Adhesion to PE (after 3 days)	4.9 N/cm
Adhesion to PET (initial)	5.5 N/cm
Adhesion to PET (after 3 days)	5.9 N/cm
Adhesion to PP (initial)	5 N/cm
Adhesion to PP (after 3 days)	6 N/cm
Adhesion to PS (initial)	7.7 N/cm
Adhesion to PS (after 3 days)	8.9 N/cm
Adhesion to PVC (initial)	3.9 N/cm
Adhesion to PVC (after 3 days)	8.8 N/cm
Adhesion to Steel (initial)	7.3 N/cm
Adhesion to Steel (after 3 days)	8.6 N/cm

According to VDA278 analysis, our 75007-tapes does not contain any single substances restricted by the drafted GB regulations (China) as well as the indoor concentration guideline by Health, Labour and Welfare Ministry (Japan).

Adhesion vaules to:
PVC
PP
ABS
PC
PET
PS
PE
Are not part of the product specification

PV20 brown glassine liner / blue tesa logo
other liner version possible - on request

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
