Product information

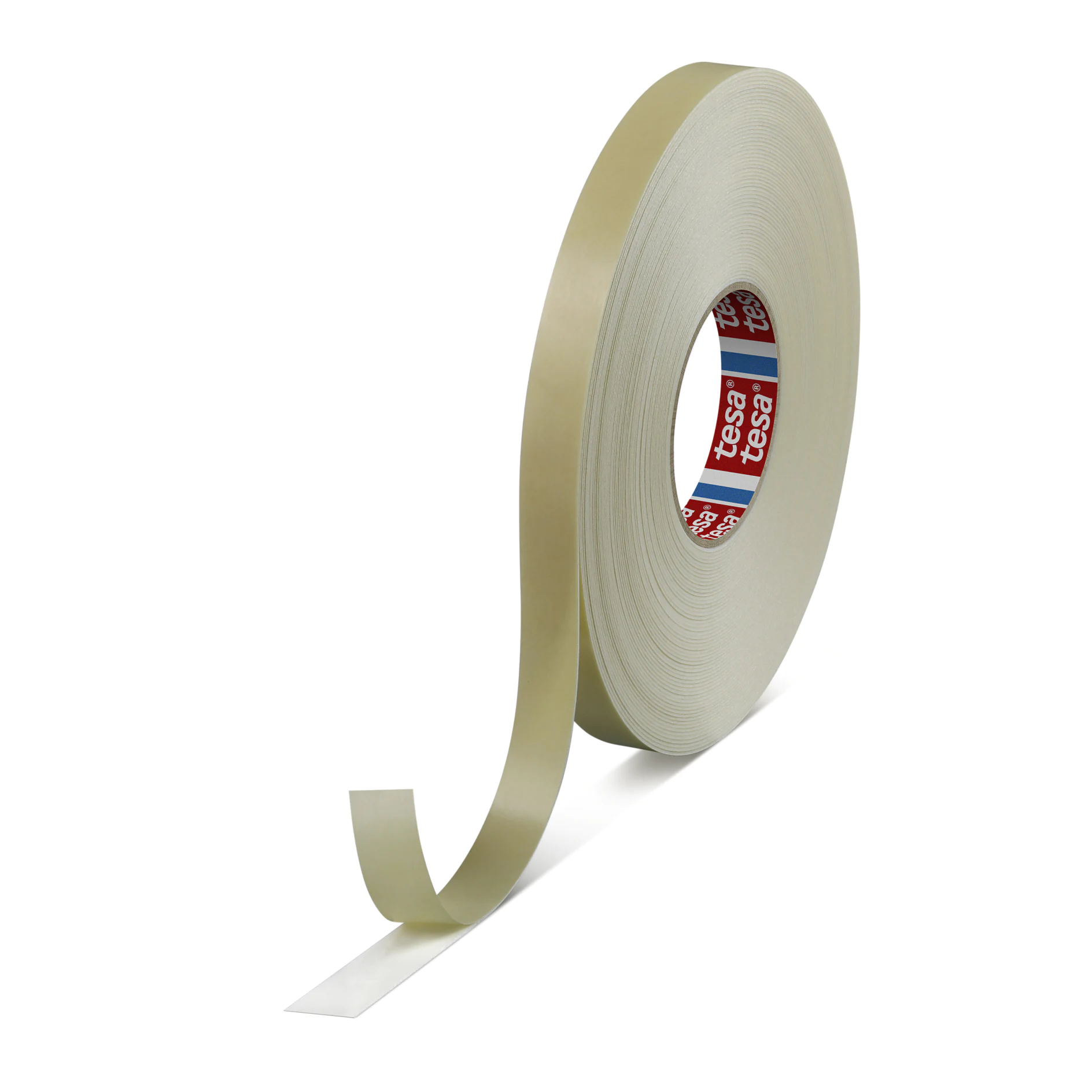

tesa® 64958

Double-sided PE foam tape



Product description

tesa® 64958 is a white double-sided tape with a PE-foam backing and a synthetic rubber adhesive.

tesa® 64958 features:
  • Highly conformable PE-foam
  • High immediate bonding strength even on rough or uneven surfaces
  • High bonding strength at low mounting pressure
  • High bonding strength on low surface energy substrates

Main applications

  • Construction of POS-displays
  • Mounting of indoor signs and posters
  • Mounting of shelf edge labelling systems
  • Additional dampening and anti-rattle
tesa-64958-1050-micrometer-double-sided-pe-foam-tape-white-649580000300-pr
tesa-64958-1050-micrometer-double-sided-pe-foam-tape-white-649580000300-pr
tesa_649580900300_LI116_left_pa
tesa_649580900100_LI116_left_pa

tesa-64958-1050-micrometer-double-sided-pe-foam-tape-white-649580000300-pr

tesa-64958-1050-micrometer-double-sided-pe-foam-tape-white-649580000300-pr

tesa_649580900300_LI116_left_pa

tesa_649580900100_LI116_left_pa

Technical properties

Elongation at break

200 %

Type of adhesive

synthetic rubber

Type of liner

glassine

Colour of liner

yellow

Tensile strength

7 N/cm

Weight of liner

80 g/m²

Total thickness

1050 µm

Thickness of liner

70 µm

Backing material

PE foam

Colour

white

Adhesion properties

Adhesion to Steel (initial)

4 N/cm

Adhesion to PE (initial)

4 N/cm

Adhesion to PC (after 14 days)

4 N/cm

Adhesion to PP (after 14 days)

4 N/cm

Adhesion to PET (after 14 days)

4 N/cm

Adhesion to PC (initial)

4 N/cm

Adhesion to PVC (initial)

4 N/cm

Adhesion to PE (after 14 days)

4 N/cm

Adhesion to PET (initial)

4 N/cm

Adhesion to PP (initial)

4 N/cm

Adhesion to Steel (after 14 days)

4 N/cm

Adhesion to PVC (after 14 days)

4 N/cm

Rating properties

Static shear resistance at 23°C

++

Resistance to chemicals

o

Humidity resistance

+

Tack

+

Ageing resistance (UV)

o

Temperature resistance long term

40 °C

Static shear resistance at 40°C

o

Temperature resistance short term

60 °C

Softener resistance

o

Additional Info

Peel Adhesion:
- immediately: foam splitting on Steel, Aluminium, ABS, PC, PS, PET, PVC, PE
- after 14 days: foam splitting on Steel, Aluminium, ABS, PC, PS, PET, PVC, PP, PE

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
