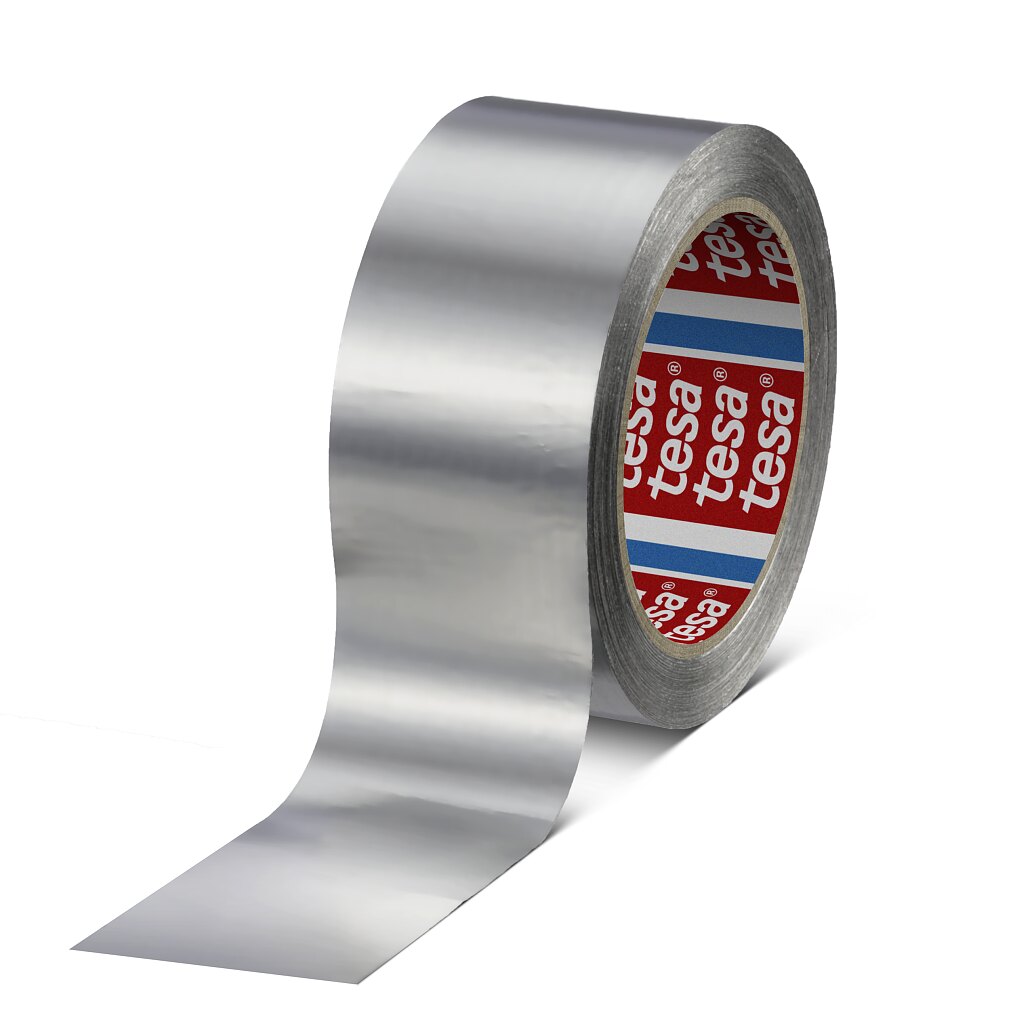

tesa® 60650

Universal aluminum tape - 50µ foil

Product description

tesa® 60650 is a universal aluminum tape based on a 50 µm (2 mil) aluminum foil and a transparent acrylic adhesive

  • Mechanical stable and conformable
  • Easy to unwind
  • Suitable for permanent applications
  • Barrier against moisture, gases and vapors
  • Electrically and thermally conductive
  • Aging resistant
  • Heat and light reflective
  • Flame retardant according to DIN 4102, class B1
  • Flame retardant according to the requirements in UL 510A

Application Fields

  • Mounting of refrigerator coils in appliance industry
  • Joining and sealing of thermal insulation, ducts and pipies
  • To make substrates electrically and thermally conductive
  • To reflect heat radiation

Product Construction

Thickness of tape 90 µm
Type of adhesive acrylic
Type of liner none
Backing material aluminium foil

Properties / Performance Values

Elongation at break 6 %
Abrasion resistance good
Backing appearance (visual) reflective
Tensile strength 40 N/cm
Temperature resistance min. -40 °C
Operation temperature up to 160 °C
Hand tearability very good
Suitable for die cutting No
Operation temperature from -40 °C
Easy to remove no
Water resistance very good

Adhesion to Values

Adhesion to PE (initial) 4.5 N/cm
Adhesion to Backing 0.5 N/cm
Adhesion to PVC (initial) 6 N/cm
Adhesion to Glass (initial) 9 N/cm
Adhesion to steel 9 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
