Additional Info
The total thickness given in the section "Technical Data" describes the thickness of the tape without liner. The thickness with liner is 175 µm (6.9 mil).

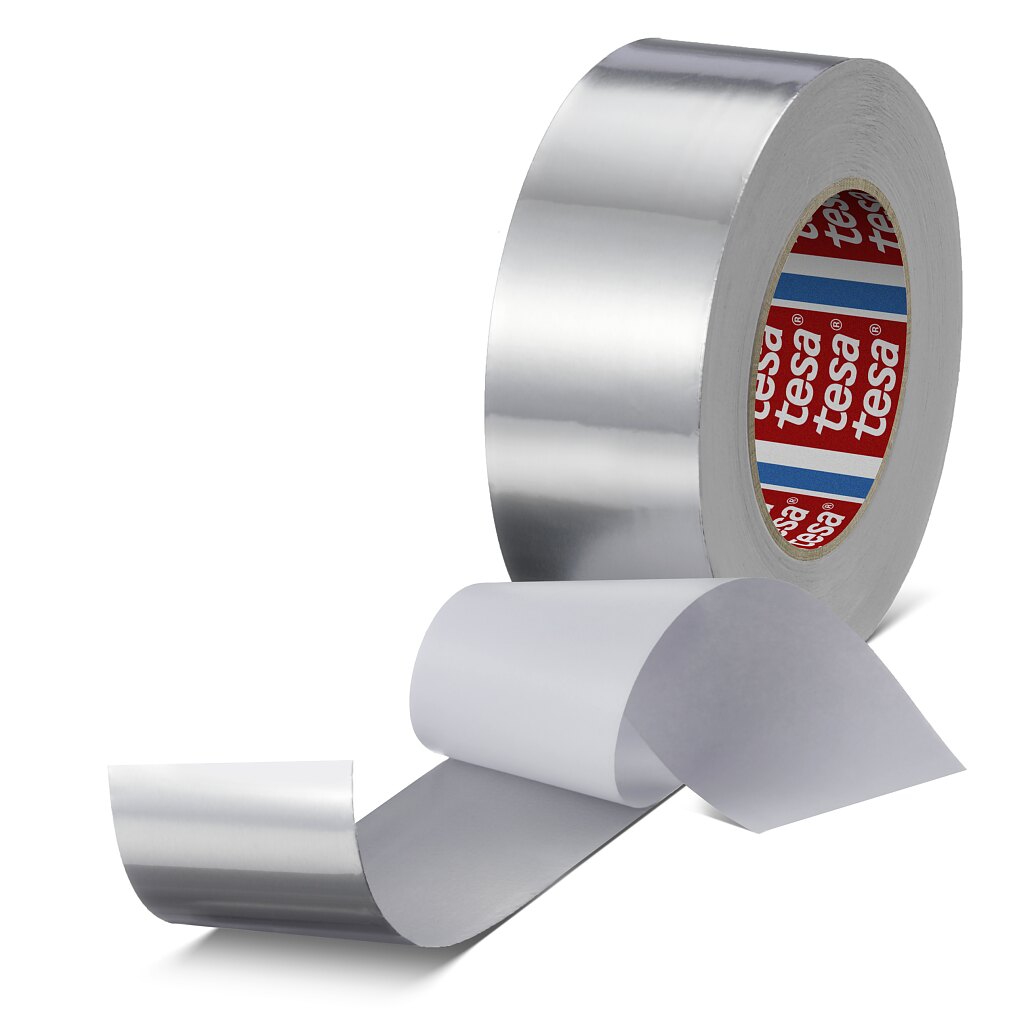

tesa® 60652
Universal aluminum tape with paper liner - 50µ foil
Product Features
- Mechanical stable and conformable
- Easily removable liner
- Suitable for permanent applications
Product description
tesa® 60652 is an aluminum tape based on a 50 µm (2 mil) aluminum foil, a transparent acrylic adhesive and a white, single-sided siliconized, 85µm thick paper liner
Features:
- Mechanical stable and conformable
- Easily removable liner
- Suitable for permanent applications
- Barrier against moisture, gases and vapors
- Electrically and thermally conductive
- Aging resistant
- Heat and light refletive
- Flame retardant according to DIN 4102, clas B1
- Flame retardant according to the requirements in UL510A
- Meets requirements of UL723
Product details and specifications
Product Features
- Mechanical stable and conformable
- Easily removable liner
- Suitable for permanent applications
- Barrier against moisture, gases and vapors
- Electrically and thermally conductive
- Aging resistant
- Heat and light refletive
- Flame retardant according to DIN 4102, clas B1
- Flame retardant according to the requirements in UL510A
- Meets requirements of UL723
Application Fields
- Mounting of refrigerator coils in appliance industry
- Joining and sealing of thermal insulation, ducts and pipes
- To make substrates electrically and thermally conductive
- To reflect heat radiation
Product Construction
| Backing material | aluminium foil |
|---|---|
| Colour of liner | white |
| Thickness of liner | 85 µm |
| Total thickness | 90 µm |
| Type of adhesive | acrylic |
| Type of liner | paper |
Product Construction
| Backing material | aluminium foil |
|---|---|
| Colour of liner | white |
| Thickness of liner | 85 µm |
| Total thickness | 90 µm |
| Type of adhesive | acrylic |
| Type of liner | paper |
Properties / Performance Values
| Elongation at break | 6 % |
|---|---|
| Tensile strength | 40 N/cm |
| Abrasion resistance | good |
| Water resistance | very good |
| Operation temperature from | -40 °C |
| Operation temperature up to | +160 °C |
| Hand tearability | very good |
| Suitable for die cutting | yes |
| Release of liner | easy |
| Backing appearance (visual) | reflective |
| Minimum temperature resistance | -40 °C |
| Liner release force | 0.3 N/cm |
| Easy to remove | no |
Properties / Performance Values
| Elongation at break | 6 % |
|---|---|
| Tensile strength | 40 N/cm |
| Abrasion resistance | good |
| Water resistance | very good |
| Operation temperature from | -40 °C |
| Operation temperature up to | +160 °C |
| Hand tearability | very good |
| Suitable for die cutting | yes |
| Release of liner | easy |
| Backing appearance (visual) | reflective |
| Minimum temperature resistance | -40 °C |
| Liner release force | 0.3 N/cm |
| Easy to remove | no |
Adhesion to Values
| Adhesion to Backing | 9 N/cm |
|---|---|
| Adhesion to Glass (initial) | 9 N/cm |
| Adhesion to PE (initial) | 4.5 N/cm |
| Adhesion to PVC (initial) | 6 N/cm |
| Adhesion to steel | 9 N/cm |
Adhesion to Values
| Adhesion to Backing | 9 N/cm |
|---|---|
| Adhesion to Glass (initial) | 9 N/cm |
| Adhesion to PE (initial) | 4.5 N/cm |
| Adhesion to PVC (initial) | 6 N/cm |
| Adhesion to steel | 9 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
