tesa® 50565

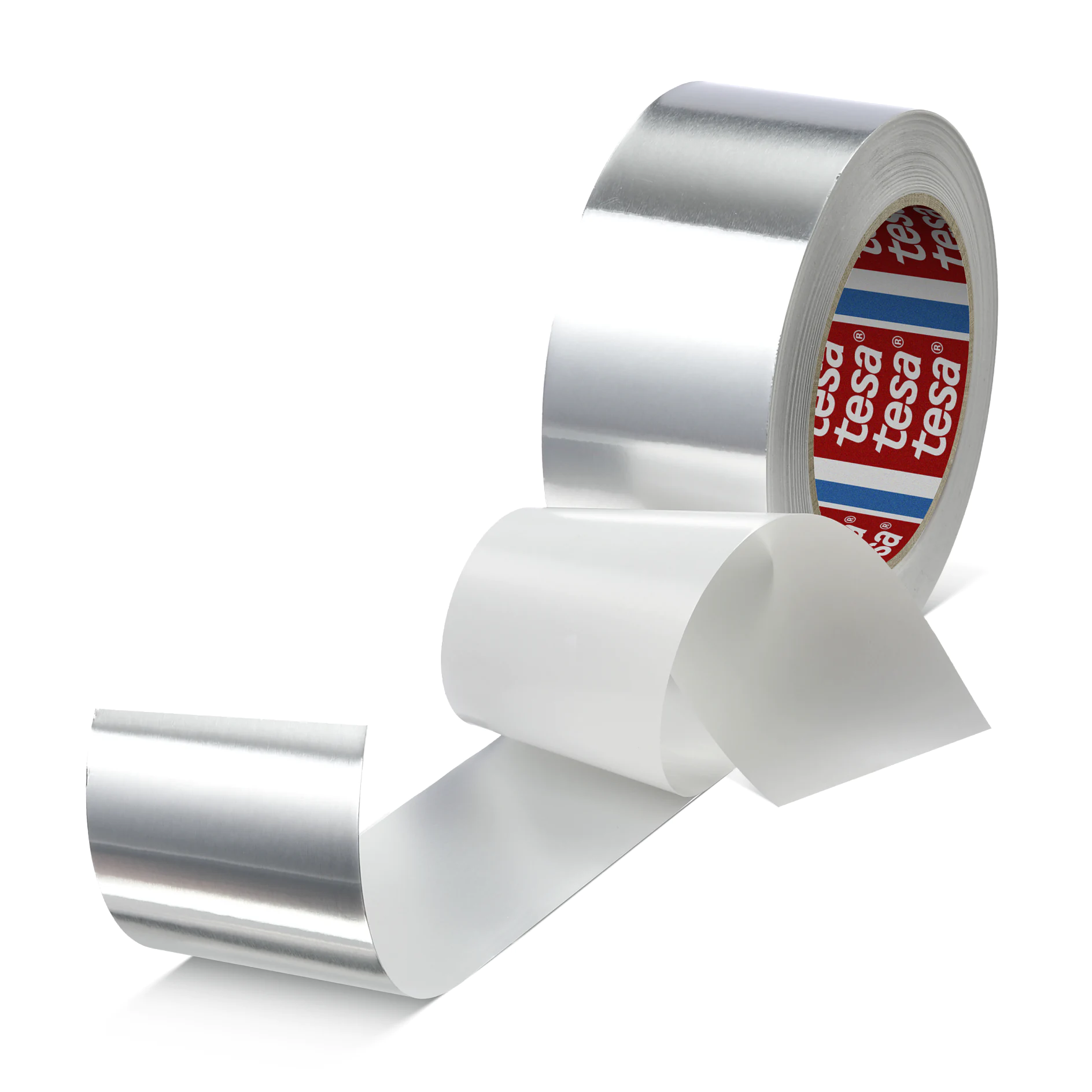

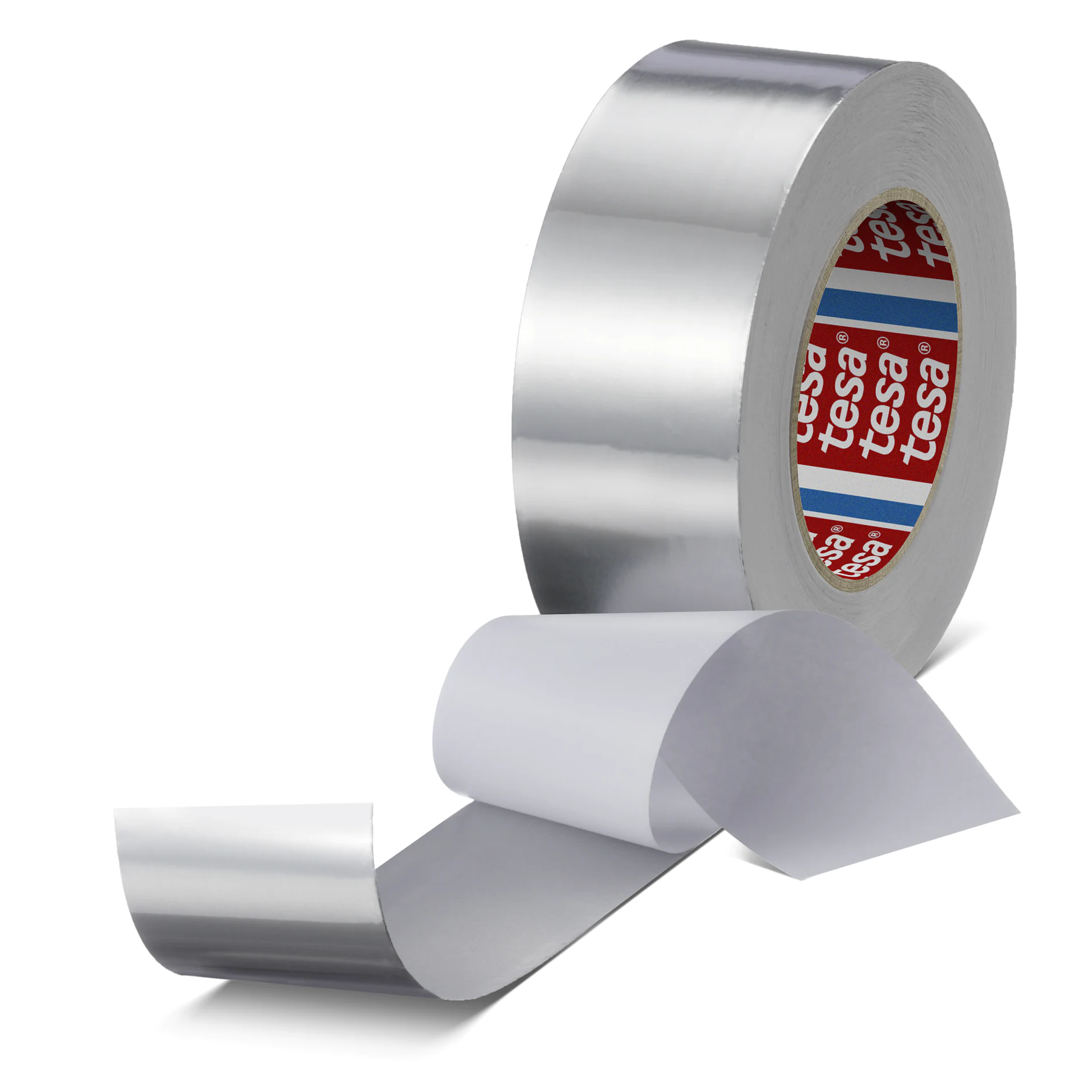

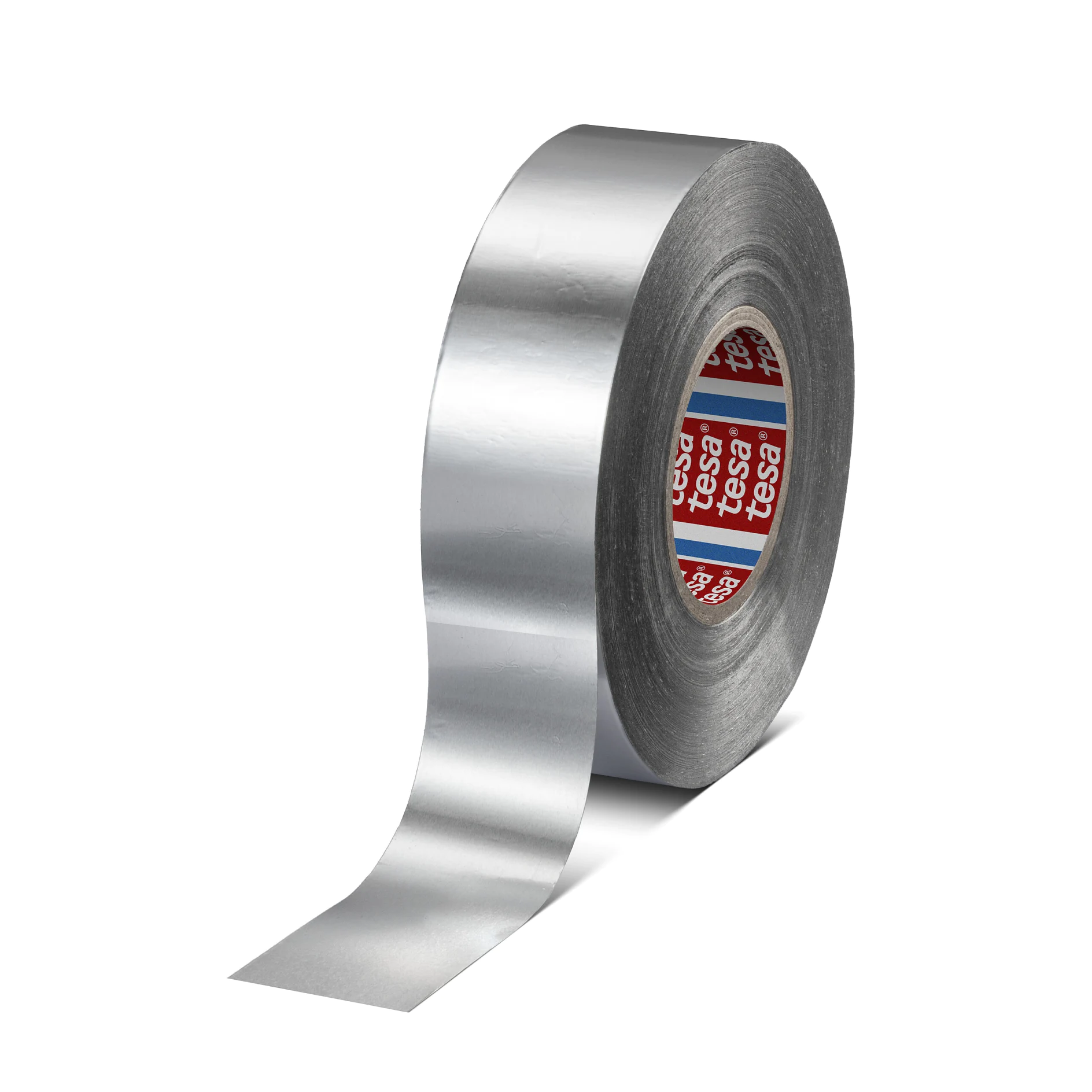

Strong 50µm aluminium tape with and without liner (PV1 and PV0)
Product description
tesa® 50565 is a strong aluminium tape, based on a 50µm aluminium foil and an acrylic adhesive.
tesa® 50565 is mainly used in the appliance industry but also for a wide range of other applications.
Features:
- good adhesion
- mechanical resistance
- moisture resistant
- vapour tight
- high thermal conductivity
- oil & acid resistant
- ageing resistant
- available without liner (PV0) and with liner (PV1)
- flame retardant (UL510)
Product details and specifications
Application Fields
- Mounting of refrigeration coils
- General purpose temperature insulation
- Sealing of ducts
- Masking, protecting, repairing, closing .
Product Construction
| Backing material | aluminium foil |
|---|---|
| Colour of liner | white |
| Thickness of liner | 65 µm |
| Total thickness | 90 µm |
| Type of adhesive | acrylic |
| Type of liner | paper |
Product Construction
| Backing material | aluminium foil |
|---|---|
| Colour of liner | white |
| Thickness of liner | 65 µm |
| Total thickness | 90 µm |
| Type of adhesive | acrylic |
| Type of liner | paper |
Properties / Performance Values
| Elongation at break | 8 % |
|---|---|
| Tensile strength | 35 N/cm |
| Suitable for die cutting | yes |
| Hand tearability | good |
| Abrasion resistance | good |
| Backing appearance (visual) | reflective |
| Water resistance | very good |
| Operation temperature from | -40 °C |
| Operation temperature up to | 160 °C |
| Minimum temperature resistance | -40 °C |
Properties / Performance Values
| Elongation at break | 8 % |
|---|---|
| Tensile strength | 35 N/cm |
| Suitable for die cutting | yes |
| Hand tearability | good |
| Abrasion resistance | good |
| Backing appearance (visual) | reflective |
| Water resistance | very good |
| Operation temperature from | -40 °C |
| Operation temperature up to | 160 °C |
| Minimum temperature resistance | -40 °C |
Adhesion to Values
| Adhesion to steel | 6 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 6 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
