tesa® 50575
Very strong 80µm aluminium tape with and without liner (PV1 and PV0)
Product description

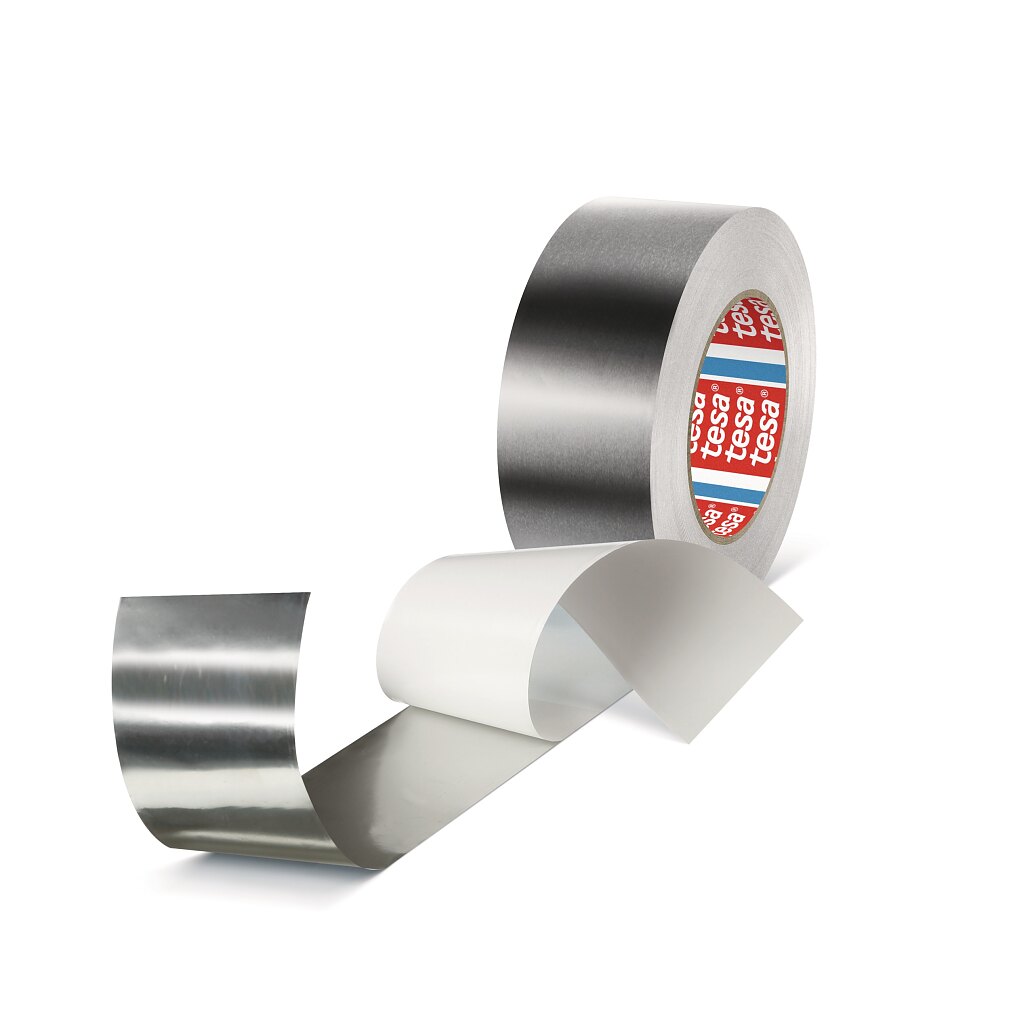

tesa® 50575 is a very strong aluminium tape based on a 80µm aluminium foil and an acrylic adhesive.
tesa® 50575 has a high tensile strength and is mainly used in the appliance industry but also for a wide range of other applications.
Features:
- good adhesion
- mechanical resistance
- moisture resistant
- vapour tight
- flame retardant
- oil & acid resistant
- high thermal conductivity
- ageing resistant
- heat and light reflective
- resistant to strong acids and base solutions
- available without liner (PV0) and with liner (PV1)
- tesa® 50575 is certified by AREVA according to requirements of the Siemens AG standard TLV 9027/01/06 for nuclear power station: total halogen content < 1000 ppm total sulphur content
Product details and specifications
Application Fields
- Masking during paint stripping
- Mounting of refrigerator coils
- General purpose temperature insulation
- Sealing of ducts
- Masking, protecting, repairing, closing .
Product Construction
| Backing material | aluminium foil |
|---|---|
| Colour of liner | white |
| Thickness of liner | 65 µm |
| Total thickness | 120 µm |
| Type of adhesive | acrylic |
| Type of liner | paper |
Product Construction
| Backing material | aluminium foil |
|---|---|
| Colour of liner | white |
| Thickness of liner | 65 µm |
| Total thickness | 120 µm |
| Type of adhesive | acrylic |
| Type of liner | paper |
Properties / Performance Values
| Elongation at break | 5 % |
|---|---|
| Tensile strength | 65 N/cm |
| Minimum temperature resistance | -40 °C |
| Abrasion resistance | very good |
| Operation temperature up to | 160 °C |
| Operation temperature from | -40 °C |
| Hand tearability | good |
| Suitable for die cutting | yes |
| Backing appearance (visual) | reflective |
| Water resistance | very good |
Properties / Performance Values
| Elongation at break | 5 % |
|---|---|
| Tensile strength | 65 N/cm |
| Minimum temperature resistance | -40 °C |
| Abrasion resistance | very good |
| Operation temperature up to | 160 °C |
| Operation temperature from | -40 °C |
| Hand tearability | good |
| Suitable for die cutting | yes |
| Backing appearance (visual) | reflective |
| Water resistance | very good |
Adhesion to Values
| Adhesion to steel | 4 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 4 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
