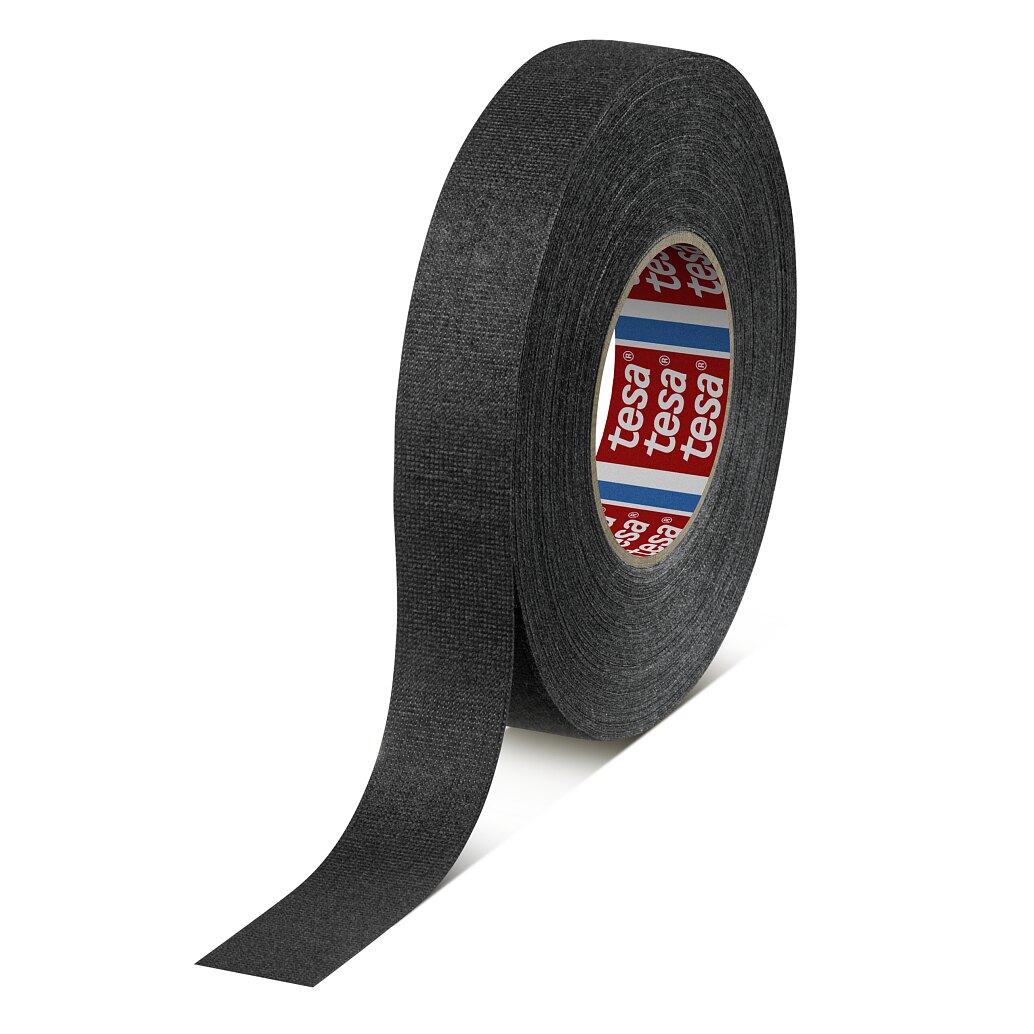

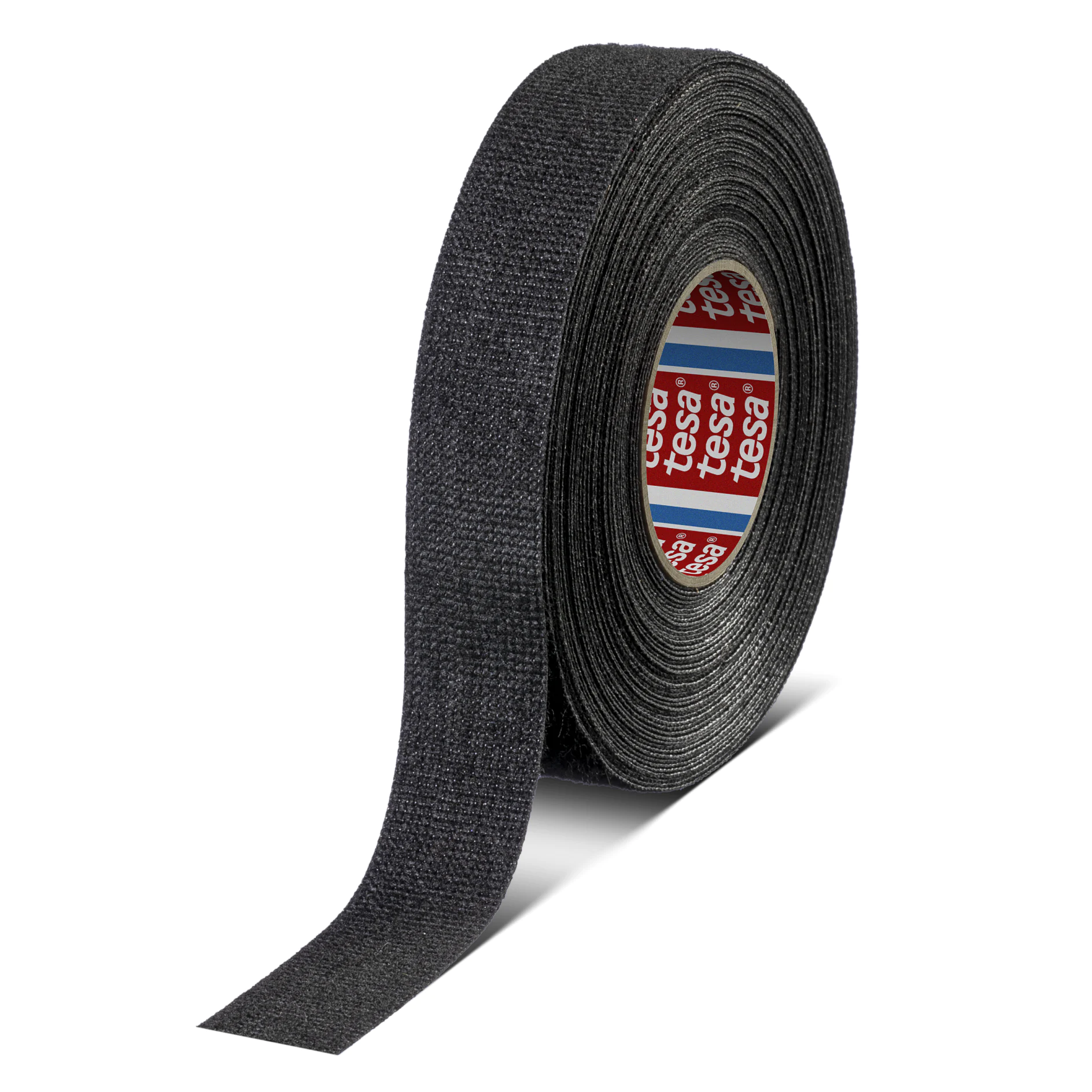

tesa® 51609
PET fleece wire harness tape for the passenger compartment optimized for automatic bundling
Product description
tesa® 51609 is the universal tape for wire harness bundling in the passenger compartment. It combines important features as noise damping, abrasion resistance and bundling strength while keeping harnesses flexible supporting an easy harness assembly process at the OEM. tesa® 51609 is optimized for automatic wrapping equipment.
Features:
- noise dampening
- abrasion resistant
- flexible and smooth
- tear resistant
- stable and low unwind force
- resistant to ageing
- strong adhesion
- handtearable
Product details and specifications
Application Fields
Wire Harnessing
Product Construction
| Backing material | PET fleece |
|---|---|
| Total thickness | 280 µm |
| Type of adhesive | rubber based |
Product Construction
| Backing material | PET fleece |
|---|---|
| Total thickness | 280 µm |
| Type of adhesive | rubber based |
Properties / Performance Values
| Elongation at break | 20 % |
|---|---|
| Tensile strength | 40 N/cm |
| Unwind force (roll width ≤ 9mm) | 4 N/roll (30 m/min) |
| Abrasion resistance (10mm mandrel, LV312) | Class B |
| Minimum temperature resistance | -40 °C |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Temperature resistance max | 105 °C |
| Noise damping (LV312) | Class C |
| Unwind force (roll width > 9mm) | 4 N/roll (30 m/min) |
Properties / Performance Values
| Elongation at break | 20 % |
|---|---|
| Tensile strength | 40 N/cm |
| Unwind force (roll width ≤ 9mm) | 4 N/roll (30 m/min) |
| Abrasion resistance (10mm mandrel, LV312) | Class B |
| Minimum temperature resistance | -40 °C |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Temperature resistance max | 105 °C |
| Noise damping (LV312) | Class C |
| Unwind force (roll width > 9mm) | 4 N/roll (30 m/min) |
Adhesion to Values
| Adhesion to steel | 3 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 3 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
