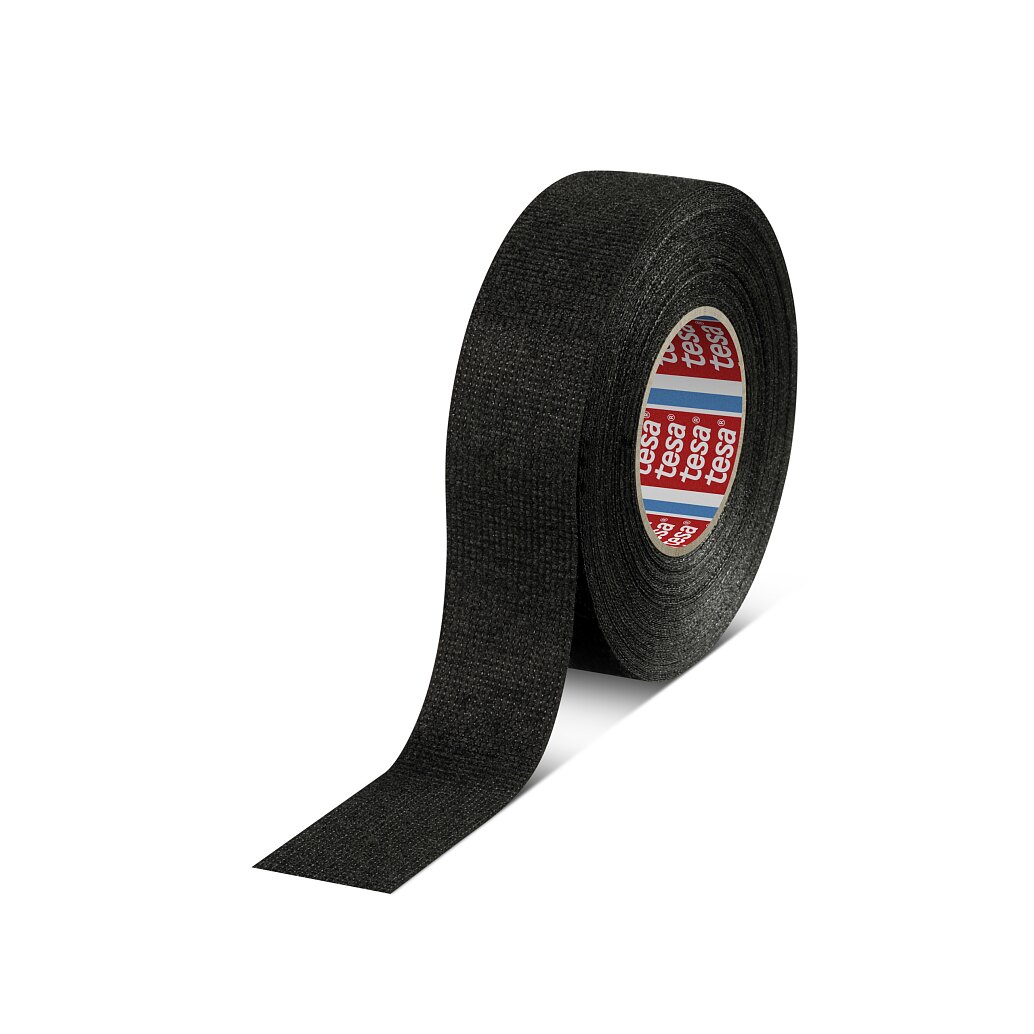

tesa® 51608
PET fleece wire harness tape for the passenger compartment
Product description
tesa® 51608 is the universal tape for wire harness bundling in the passenger compartment. It combines features such as noise damping, abrasion resistance and bundling strength while keeping harnesses flexible enabling an easy harness assembly process at the OEM. tesa® 51608 is for manual application.
Features:
- noise damping
- abrasion resistant
- flexible and smooth
- tear resistant
- stable unwind force
- resistant to ageing
- strong adhesion
- handtearable
Product details and specifications
Application Fields
Wire Harnessing
Product Construction
| Backing material | PET fleece |
|---|---|
| Total thickness | 280 µm |
| Type of adhesive | rubber based |
Product Construction
| Backing material | PET fleece |
|---|---|
| Total thickness | 280 µm |
| Type of adhesive | rubber based |
Properties / Performance Values
| Elongation at break | 20 % |
|---|---|
| Tensile strength | 40 N/cm |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Abrasion resistance (10mm mandrel, LV312) | Class B |
| Noise damping (LV312) | Class C |
| Temperature resistance max | 105 °C |
| Unwind force (roll width ≤ 9mm) | 9 N/roll (30 m/min) |
| Unwind force (roll width > 9mm) | 9 N/roll (30 m/min) |
| Minimum temperature resistance | -40 °C |
Properties / Performance Values
| Elongation at break | 20 % |
|---|---|
| Tensile strength | 40 N/cm |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Abrasion resistance (10mm mandrel, LV312) | Class B |
| Noise damping (LV312) | Class C |
| Temperature resistance max | 105 °C |
| Unwind force (roll width ≤ 9mm) | 9 N/roll (30 m/min) |
| Unwind force (roll width > 9mm) | 9 N/roll (30 m/min) |
| Minimum temperature resistance | -40 °C |
Adhesion to Values
| Adhesion to steel | 3 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 3 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

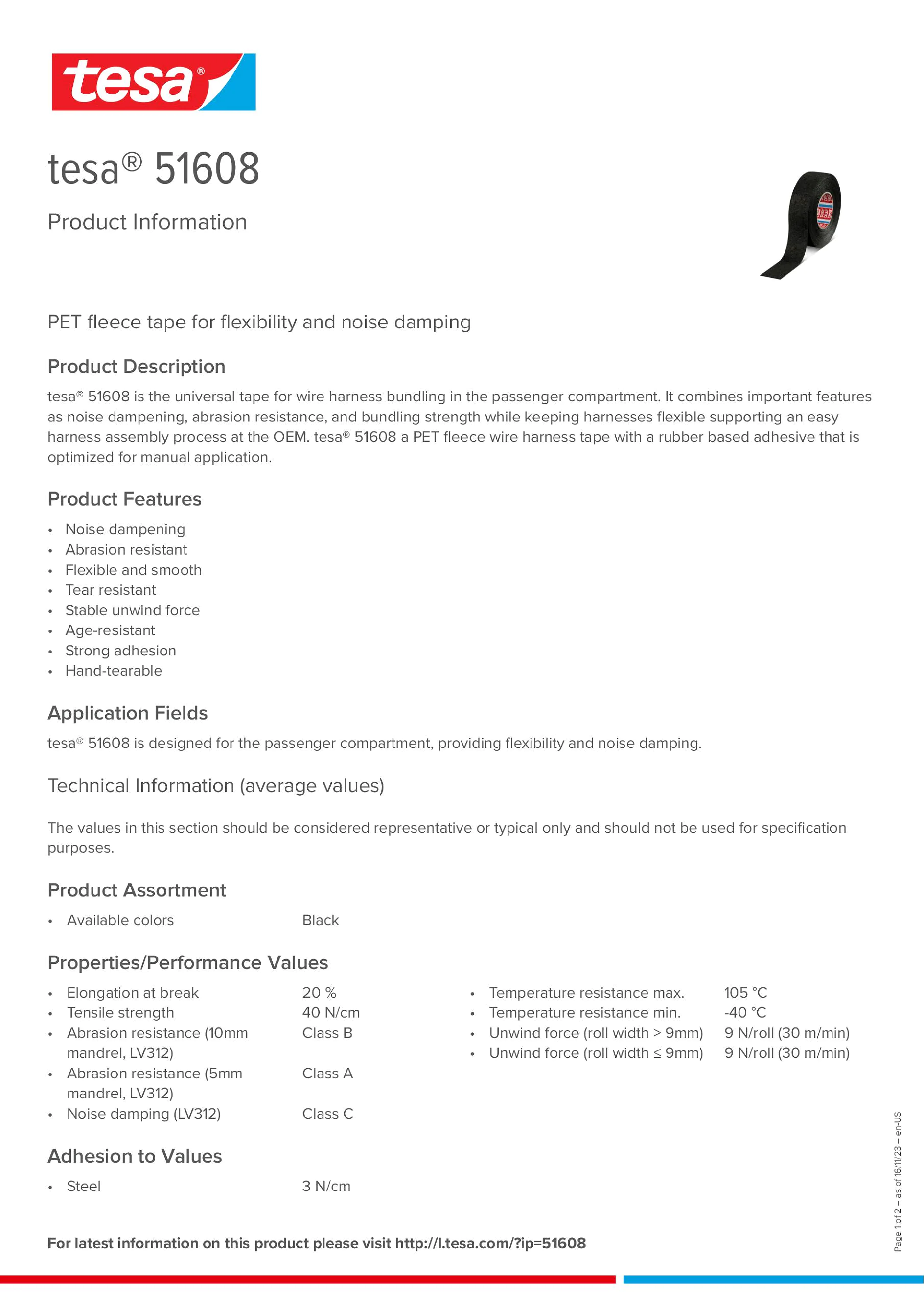

Downloads
Download the files below for more technical details and information on this product.
