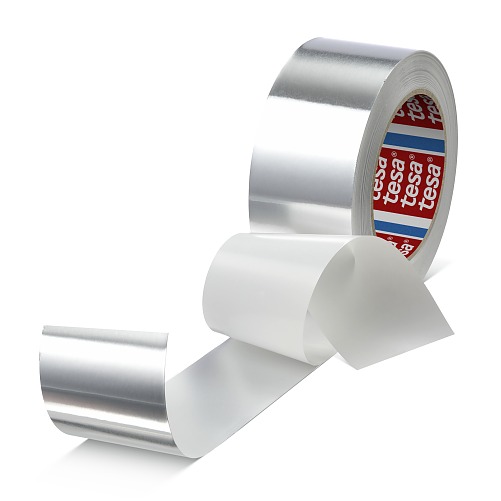

tesa® 50525 PV1
Conformable 30µm aluminium tape with liner
Product Features
- Good adhesion
- Conformable
- Moisture resistant
Product description
tesa® 50525 PV1 is a conformable aluminium tape, based on a 30µm aluminium foil and an acrylic adhesive.
Product details and specifications
Product Features
- Good adhesion
- Conformable
- Moisture resistant
- Vapour tight
- High thermal conductivity
- Ageing-resistant
- tesa® 50525 PV1 is a very flexible tape mainly used in the appliance industry and also for a wide range of other applications.
Application Fields
- Mounting of refrigeration coils
- General purpose temperature insulation
- Sealing of ducts
- Masking, protecting, repairing, closing
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | aluminium foil |
| Color of liner | white |
| Liner Type | paper |
| Thickness of liner | 65 µm |
| Total thickness | 60 µm |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | aluminium foil |
| Color of liner | white |
| Liner Type | paper |
| Thickness of liner | 65 µm |
| Total thickness | 60 µm |
Properties / Performance Values
| Elongation at break | 5 % |
|---|---|
| Tensile strength | 23 N/cm |
| Abrasion resistance | good |
| Easy to remove | no |
| Temperature resistance min. | -40 °C |
| Operation temperature from | -40 °C |
| Operation temperature up to | 160 °C |
| Backing appearance (visual) | reflective |
| Water resistance | very good |
| Hand tearability | yes |
Properties / Performance Values
| Elongation at break | 5 % |
|---|---|
| Tensile strength | 23 N/cm |
| Abrasion resistance | good |
| Easy to remove | no |
| Temperature resistance min. | -40 °C |
| Operation temperature from | -40 °C |
| Operation temperature up to | 160 °C |
| Backing appearance (visual) | reflective |
| Water resistance | very good |
| Hand tearability | yes |
Adhesion to Values
| Adhesion to Backing | 4 N/cm |
|---|---|
| Adhesion to Steel | 5 N/cm |
Adhesion to Values
| Adhesion to Backing | 4 N/cm |
|---|---|
| Adhesion to Steel | 5 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
