Product information

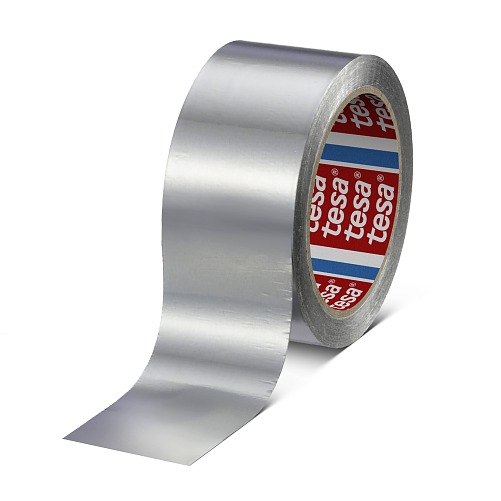

tesa® 60630

Conformable aluminum tape - 30µ foil



Product description

tesa® 60630 is a conformable aluminum tape based on a 30 µm (1.2 mil) aluminum foil, a transparent acrylic adhesive.

Features:
  • Conformable to curved surfaces
  • Easy to unwind
  • Suitable for permanent applications
  • Barrier against moisture, gases and vapors
  • Electrically and thermally conductive
  • Aging resistant
  • Heat and light reflective
  • Flame retardant according to DIN 4102, class B1
  • Flame retardant according to the requirements in UL 510A

Main applications

  • Mounting of refrigerator coils in appliance industry
  • Joining and sealing of thermal insulation and ducts
  • To make substrates electrically and thermally conductive
  • To reflect heat radiation
tesa_60630_pr_001
tesa_60630_pr_001
tesa-60630-60650-60670-conformable-aluminum-tape-01-ap
tesa-60630-60650-60670-conformable-aluminum-tape-step1of5-ap
tesa-60630-60650-60670-conformable-aluminum-tape-step2of5-ap
tesa-60630-60650-60670-conformable-aluminum-tape-step3of5-ap
tesa-60630-60650-60670-conformable-aluminum-tape-step4of5-ap
tesa-60630-60650-60670-conformable-aluminum-tape-step5of5-ap

tesa_60630_pr_001

tesa_60630_pr_001

tesa-60630-60650-60670-conformable-aluminum-tape-01-ap

tesa-60630-60650-60670-conformable-aluminum-tape-step1of5-ap

tesa-60630-60650-60670-conformable-aluminum-tape-step2of5-ap

tesa-60630-60650-60670-conformable-aluminum-tape-step3of5-ap

tesa-60630-60650-60670-conformable-aluminum-tape-step4of5-ap

tesa-60630-60650-60670-conformable-aluminum-tape-step5of5-ap

Technical properties

Elongation at break

3 %

Surface finish

reflective

Type of adhesive

acrylic

Temperature resistance min.

-40 °C

Temperature resistance max.

160 °C

Tensile strength

25 N/cm

Total thickness

65 µm

Backing material

aluminium foil

Adhesion to steel

8 N/cm

Adhesion properties

Adhesion to PE (initial)

4 N/cm

Adhesion to PVC (initial)

5.5 N/cm

Adhesion to Glass (initial)

7 N/cm

Rating properties

Abrasion resistance

+

Suitable for die cutting

No

Hand tearability

++

Water resistance

++

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
