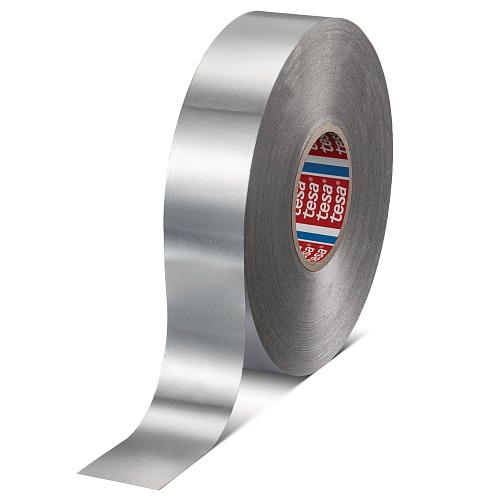

tesa® 60654
Aluminum laminated PET tape
Product Features
- The aluminum layer ensures thermal conductivity to increase heat transfer
- The PET layer enhances the dispensing performance of the tapes
- Excellent conformability enables a tight bond of the cooling tubes to the refrigerator housing
Product description
tesa® 60654 is a single-coated adhesive tape with a polyester-aluminum laminate as a backing. The polyester film on the outer layer is coated with a silicone-based release system. The aluminum foil in the inner layer is coated with a transparent acrylic adhesive. The product comes without additional liner.
Product details and specifications
Product Features
- The aluminum layer ensures thermal conductivity to increase heat transfer
- The PET layer enhances the dispensing performance of the tapes
- Excellent conformability enables a tight bond of the cooling tubes to the refrigerator housing
- The tape has a very good initial adhesion to relevant plastics and metals
Application Fields
- Developed especially for the white goods industry
- The tape is used in the automated production of refrigerators and freezers
- It bonds the metallic cooling tubes to the plastic bodies
Product Construction
| Adhesive Type | modified acrylic |
|---|---|
| Backing material | Al-PET barrier laminate |
| Liner Type | none |
| Total thickness | 90 µm |
Product Construction
| Adhesive Type | modified acrylic |
|---|---|
| Backing material | Al-PET barrier laminate |
| Liner Type | none |
| Total thickness | 90 µm |
Properties / Performance Values
| Elongation at break | 13 % |
|---|---|
| Tensile strength | 60 N/cm |
| Temperature resistance min. | -20 °C |
| Operation temperature from | -20 °C |
| Operation temperature up to | 120 °C |
Properties / Performance Values
| Elongation at break | 13 % |
|---|---|
| Tensile strength | 60 N/cm |
| Temperature resistance min. | -20 °C |
| Operation temperature from | -20 °C |
| Operation temperature up to | 120 °C |
Adhesion to Values
| Adhesion to Backing | 0.2 N/cm |
|---|---|
| Adhesion to Steel | 10 N/cm |
Adhesion to Values
| Adhesion to Backing | 0.2 N/cm |
|---|---|
| Adhesion to Steel | 10 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
