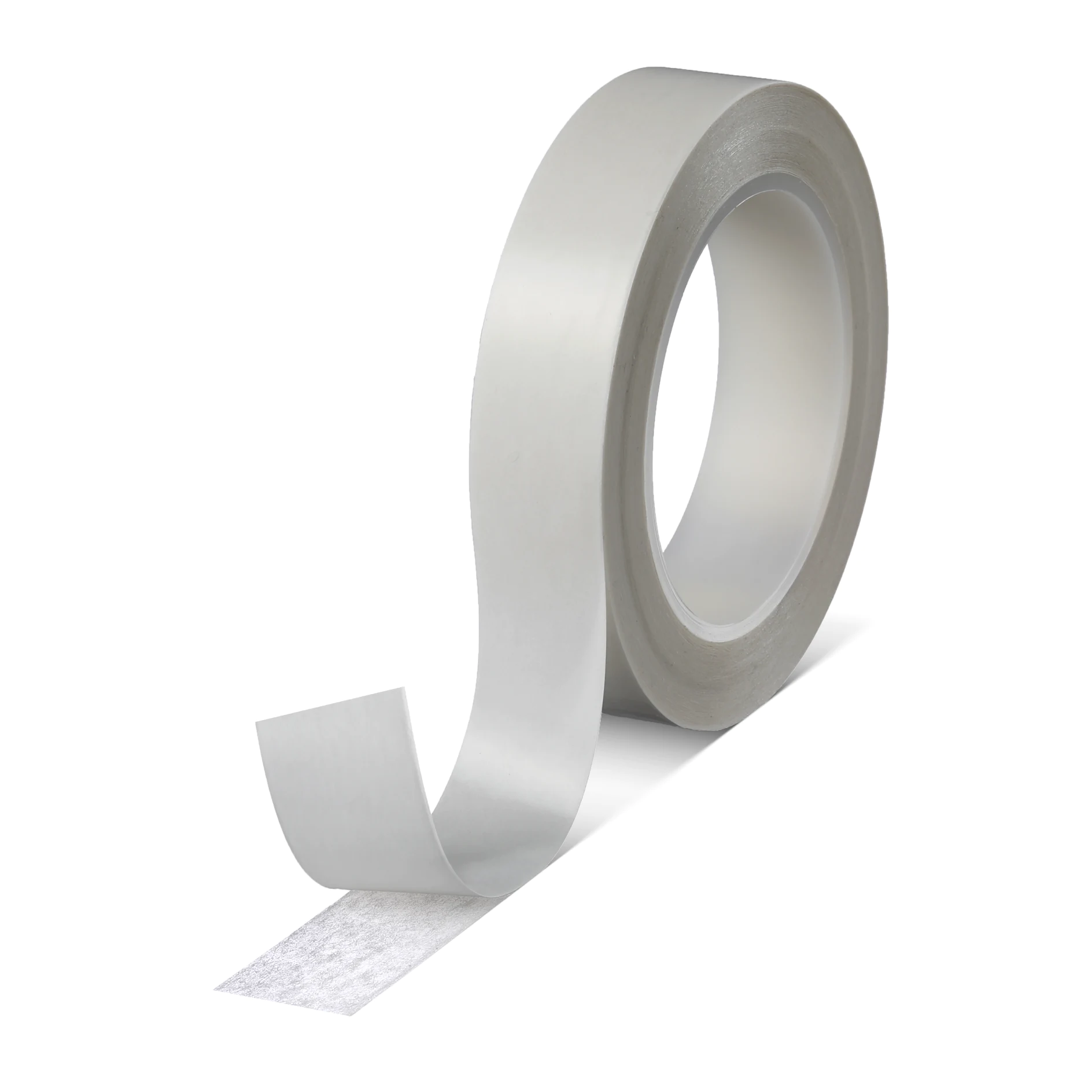

tesa® 4987
125 µm double sided translucent premium non woven tape
Product Features
- Excellent initial tack and peel adhesion
- Reliable bond, often also on low surface energy surfaces
- Light and aging-resistant acrylic adhesive for long-term applications
Product description
tesa® 4987 is a double-sided non-woven industrial mounting and splicing tape with a highly tackified acrylic adhesive. The premium non-woven tape is, for instance, used for mounting signs and nameplates or other mounting and high-performance lamination applications. tesa® 4987 is especially designed to connect flexible materials to one another. The mounting and splicing tape is able to withstand numerous environmental factors such as humidity, UV light, and temperatures of up to 200°C for limited periods of time. The tackified acrylic adhesive offers excellent hold on various surfaces, very high tack, and good shear strength. The adhesive is coated on a flexible and conformable cellulose non-woven backing that even conforms to difficult 3D shapes.
Product details and specifications
Product Features
- Excellent initial tack and peel adhesion
- Reliable bond, often also on low surface energy surfaces
- Light and aging-resistant acrylic adhesive for long-term applications
- Good converting and die-cutting properties
- Highly conformable to follow difficult 3D shapes due to non-woven backing
Application Fields
- tesa® 4987 is ideally used for industrial mounting, high-performance lamination, and splicing applications
- Mounting signs, covers and nameplates
- Laminating insulation materials and foams for HVAC (heating, ventilation, and air conditioning) seals
- Mounting plastic bags, dispatch bags, continuous stationery, posters, etc.
- Splicing of paper and film webs
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | non-woven |
| Color | translucent |
| Color of liner | white |
| Liner Type | glassine |
| Thickness of liner | 84 µm |
| Total thickness | 125 µm |
| Weight of liner | 100 g/m² |
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | non-woven |
| Color | translucent |
| Color of liner | white |
| Liner Type | glassine |
| Thickness of liner | 84 µm |
| Total thickness | 125 µm |
| Weight of liner | 100 g/m² |
Properties / Performance Values
| Elongation at break | 3 % |
|---|---|
| Tensile strength | 8 N/cm |
| Static shear resistance at 40°C | medium |
| Chemical Resistance | good |
| Ageing resistance (UV) | good |
| Temperature resistance long term | 80 °C |
| Tack | good |
| Temperature resistance min. | -40 °C |
| Static shear resistance at 23°C | good |
| Temperature resistance short term | 200 °C |
| Softener resistance | medium |
| Humidity resistance | good |
Properties / Performance Values
| Elongation at break | 3 % |
|---|---|
| Tensile strength | 8 N/cm |
| Static shear resistance at 40°C | medium |
| Chemical Resistance | good |
| Ageing resistance (UV) | good |
| Temperature resistance long term | 80 °C |
| Tack | good |
| Temperature resistance min. | -40 °C |
| Static shear resistance at 23°C | good |
| Temperature resistance short term | 200 °C |
| Softener resistance | medium |
| Humidity resistance | good |
Adhesion to Values
| Adhesion to ABS (initial) | 8 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 10.8 N/cm |
| Adhesion to Aluminium (initial) | 7.7 N/cm |
| Adhesion to Aluminium (after 14 days) | 10.1 N/cm |
| Adhesion to PC (initial) | 9.3 N/cm |
| Adhesion to PC (after 14 days) | 10.4 N/cm |
| Adhesion to PE (initial) | 4.1 N/cm |
| Adhesion to PE (after 14 days) | 4.8 N/cm |
| Adhesion to PET (initial) | 6.9 N/cm |
| Adhesion to PET (after 14 days) | 8.7 N/cm |
| Adhesion to PP (initial) | 5.6 N/cm |
| Adhesion to PP (after 14 days) | 6.2 N/cm |
| Adhesion to PS (initial) | 8.5 N/cm |
| Adhesion to PS (after 14 days) | 10.3 N/cm |
| Adhesion to PVC (initial) | 7 N/cm |
| Adhesion to PVC (after 14 days) | 11.4 N/cm |
| Adhesion to Steel (initial) | 9 N/cm |
| Adhesion to Steel (after 14 days) | 11.2 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 8 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 10.8 N/cm |
| Adhesion to Aluminium (initial) | 7.7 N/cm |
| Adhesion to Aluminium (after 14 days) | 10.1 N/cm |
| Adhesion to PC (initial) | 9.3 N/cm |
| Adhesion to PC (after 14 days) | 10.4 N/cm |
| Adhesion to PE (initial) | 4.1 N/cm |
| Adhesion to PE (after 14 days) | 4.8 N/cm |
| Adhesion to PET (initial) | 6.9 N/cm |
| Adhesion to PET (after 14 days) | 8.7 N/cm |
| Adhesion to PP (initial) | 5.6 N/cm |
| Adhesion to PP (after 14 days) | 6.2 N/cm |
| Adhesion to PS (initial) | 8.5 N/cm |
| Adhesion to PS (after 14 days) | 10.3 N/cm |
| Adhesion to PVC (initial) | 7 N/cm |
| Adhesion to PVC (after 14 days) | 11.4 N/cm |
| Adhesion to Steel (initial) | 9 N/cm |
| Adhesion to Steel (after 14 days) | 11.2 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
