Additional Info
The Adhesion to Steel data is tested according to ASTM-3330

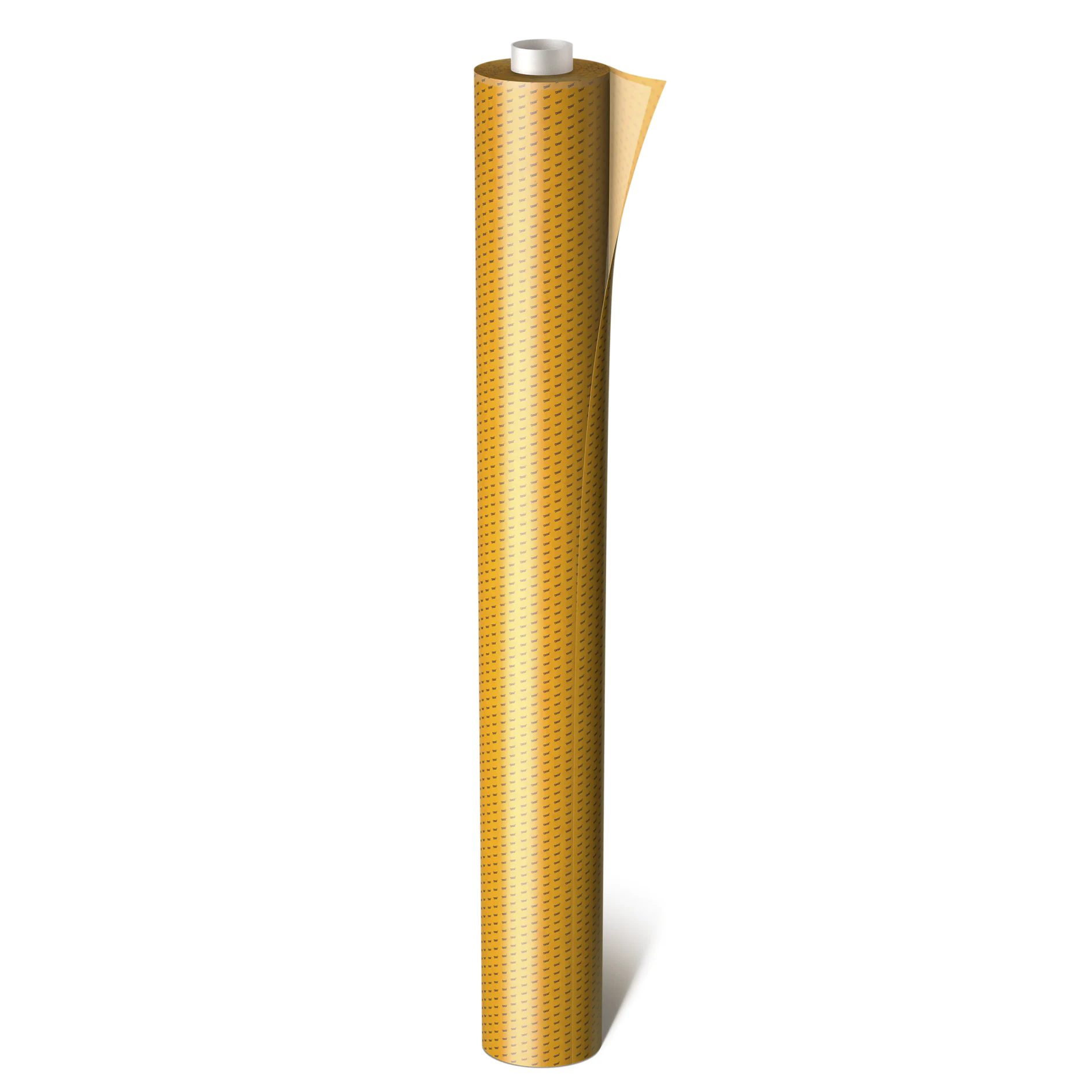

tesa® 88644
160μm double coated tissue tape
Product Features
- Good adhesion to a variety of polar surfaces
- Sufficient adhesion to non-polar surfaces
- Excellent holding power at escalated temperature
Product description
tesa® 88644 is a 160μm double coated tissue tape consisting of a tissue backing and a tackified acrylic adhesive.
Product details and specifications
Product Features
- Good adhesion to a variety of polar surfaces
- Sufficient adhesion to non-polar surfaces
- Excellent holding power at escalated temperature
- Good Anti-repulsion performance
- Suitable for permanent applications
Application Fields
- Name plate mounting

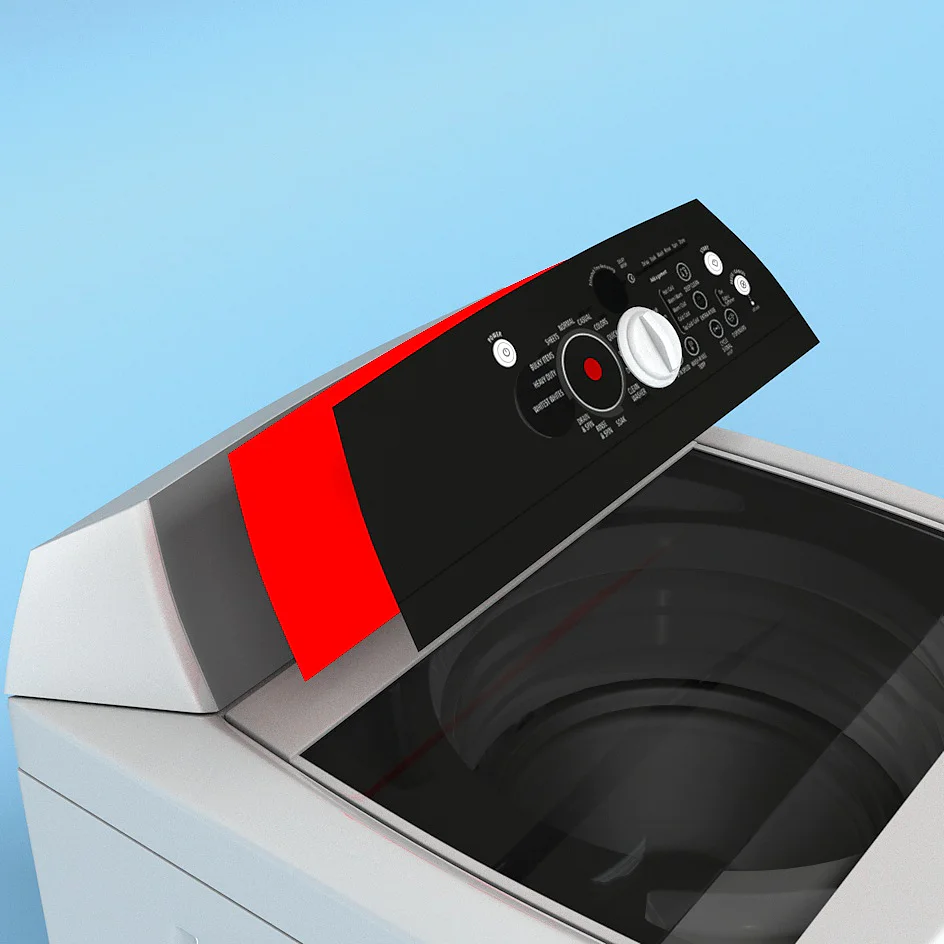

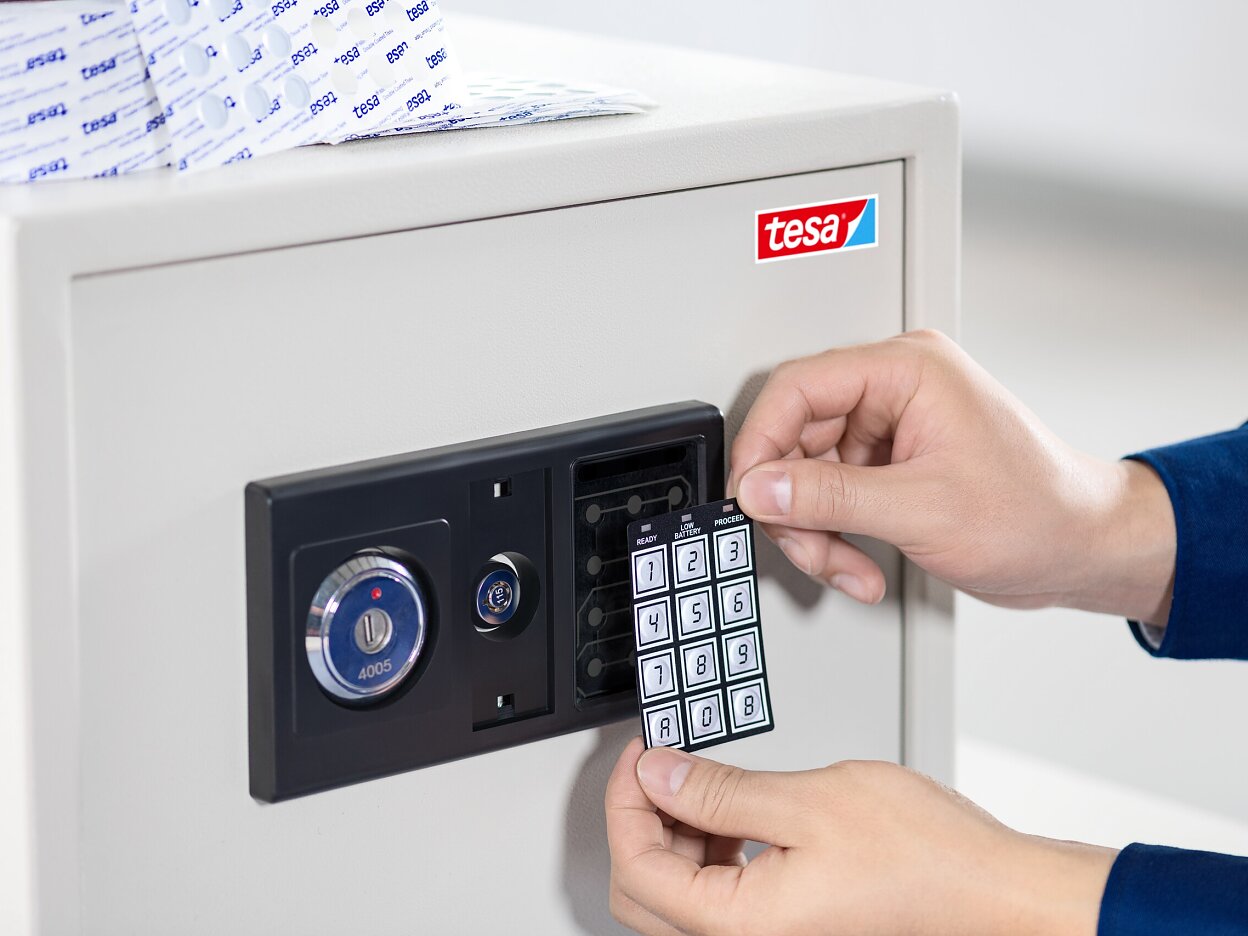

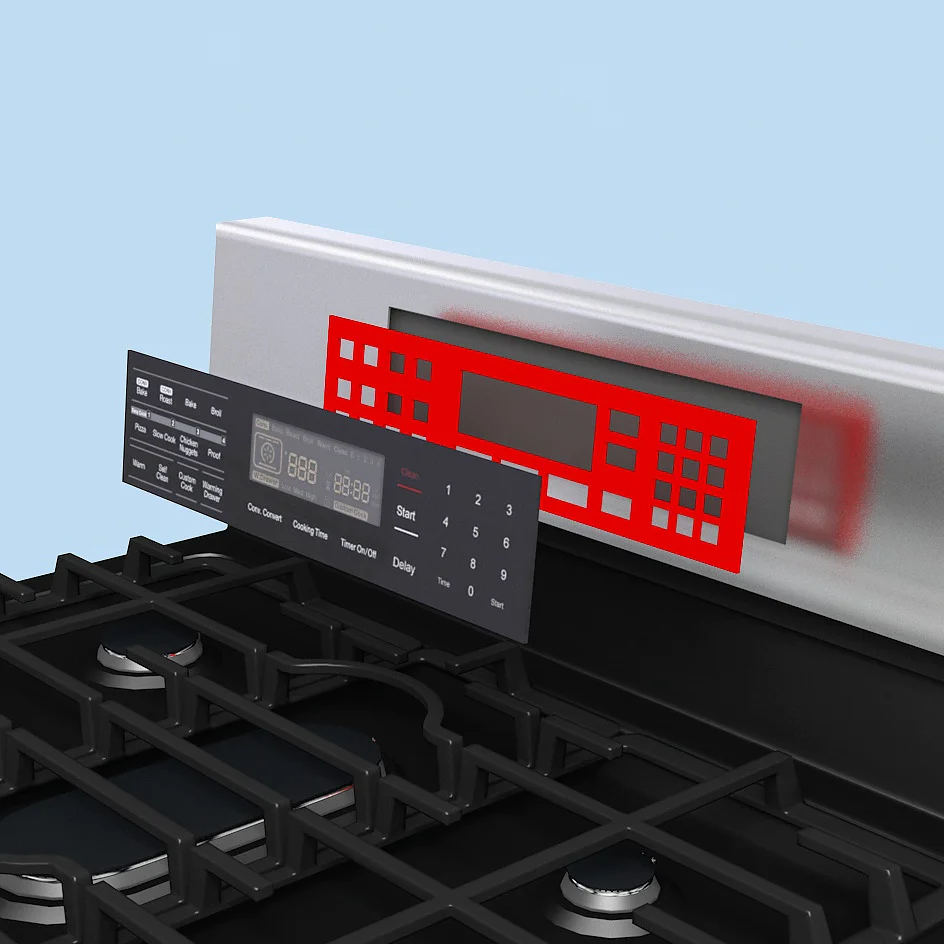

- Membrane switch mounting
- Foam lamination
- Textile lamination

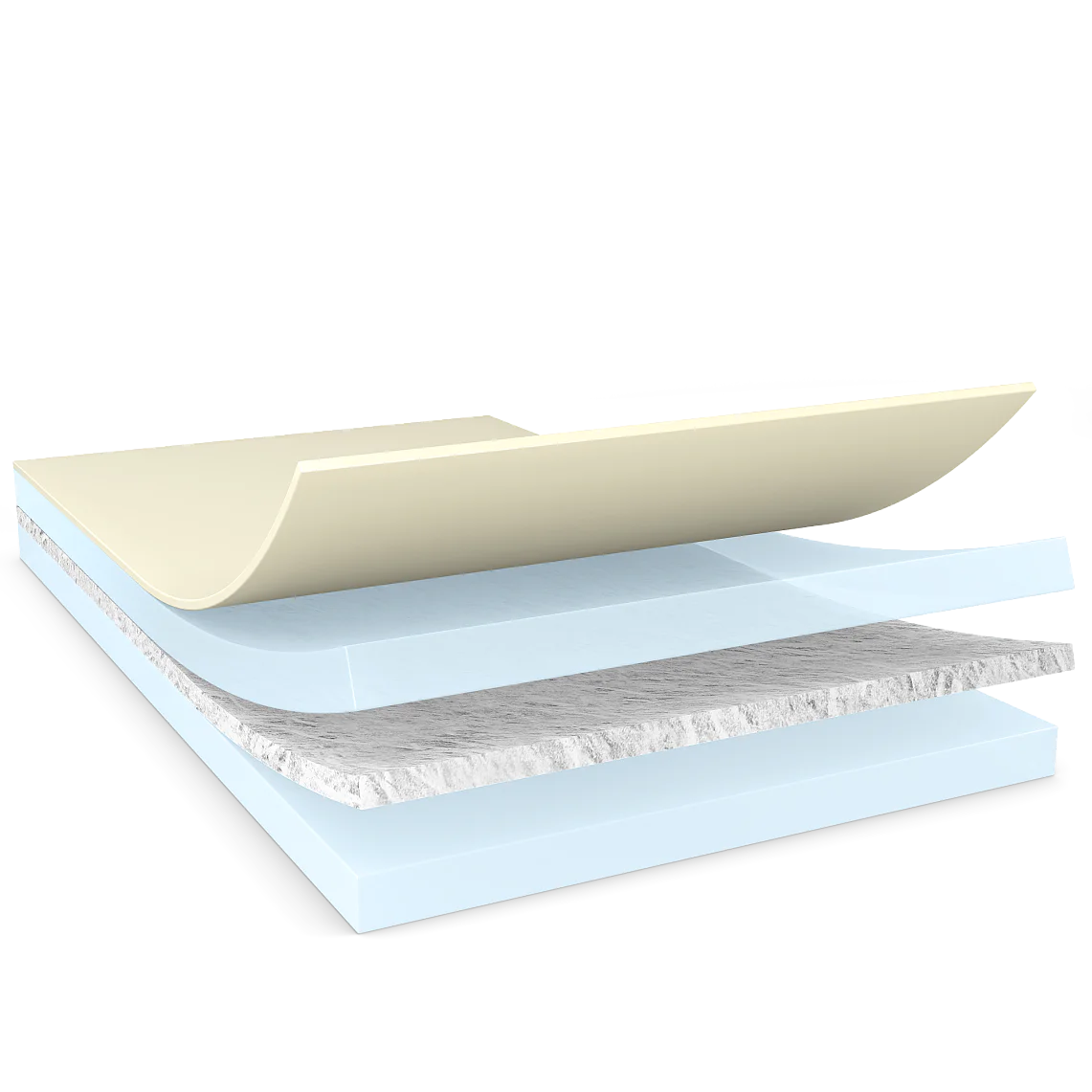

Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | non-woven |
| Color | translucent |
| Color of liner | white/blue logo |
| Liner Type | PE-coated paper |
| Thickness of liner | 130 µm |
| Total thickness | 160 µm |
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | non-woven |
| Color | translucent |
| Color of liner | white/blue logo |
| Liner Type | PE-coated paper |
| Thickness of liner | 130 µm |
| Total thickness | 160 µm |
Properties / Performance Values
| Static shear resistance at 70°C | very good |
|---|---|
| Temperature resistance long term | 80 °C |
| Temperature resistance short term | 160 °C |
| Tack | good |
Properties / Performance Values
| Static shear resistance at 70°C | very good |
|---|---|
| Temperature resistance long term | 80 °C |
| Temperature resistance short term | 160 °C |
| Tack | good |
Adhesion to Values
| Adhesion to ABS (initial) | 7.7 N/cm |
|---|---|
| Adhesion to ABS (after 3 days) | 9.9 N/cm |
| Adhesion to Glass (initial) | 8.3 N/cm |
| Adhesion to Glass (after 3 days) | 9.7 N/cm |
| Adhesion to PC (initial) | 7.9 N/cm |
| Adhesion to PC (after 3 days) | 9.8 N/cm |
| Adhesion to PE (initial) | 3.8 N/cm |
| Adhesion to PE (after 3 days) | 5.1 N/cm |
| Adhesion to PET (initial) | 6.5 N/cm |
| Adhesion to PP (initial) | 6.2 N/cm |
| Adhesion to PP (after 3 days) | 8.1 N/cm |
| Adhesion to PVC (initial) | 5.2 N/cm |
| Adhesion to Steel (initial) | 7.9 N/cm |
| Adhesion to Steel (after 3 days) | 10.2 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 7.7 N/cm |
|---|---|
| Adhesion to ABS (after 3 days) | 9.9 N/cm |
| Adhesion to Glass (initial) | 8.3 N/cm |
| Adhesion to Glass (after 3 days) | 9.7 N/cm |
| Adhesion to PC (initial) | 7.9 N/cm |
| Adhesion to PC (after 3 days) | 9.8 N/cm |
| Adhesion to PE (initial) | 3.8 N/cm |
| Adhesion to PE (after 3 days) | 5.1 N/cm |
| Adhesion to PET (initial) | 6.5 N/cm |
| Adhesion to PP (initial) | 6.2 N/cm |
| Adhesion to PP (after 3 days) | 8.1 N/cm |
| Adhesion to PVC (initial) | 5.2 N/cm |
| Adhesion to Steel (initial) | 7.9 N/cm |
| Adhesion to Steel (after 3 days) | 10.2 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
