Additional Info
Liner variants:
PV43/53 white PE-coated paper with blue tesa logo
PV44/54 white / non printed PE-coated paper
PV43/53 white PE-coated paper with blue tesa logo
PV44/54 white / non printed PE-coated paper
tesa® 68614
100µm double sided non-woven tape
Product Features
- High bonding strength on various kinds of substrates
- Good temperature resistance performance
Product description
tesa® 68614 is a translucent, double-sided self-adhesive tape consisting of a non-woven backing and a tackified acrylic adhesive.
Product details and specifications
Product Features
- High bonding strength on various kinds of substrates
- Good temperature resistance performance
Application Fields
- General purpose mounting applications

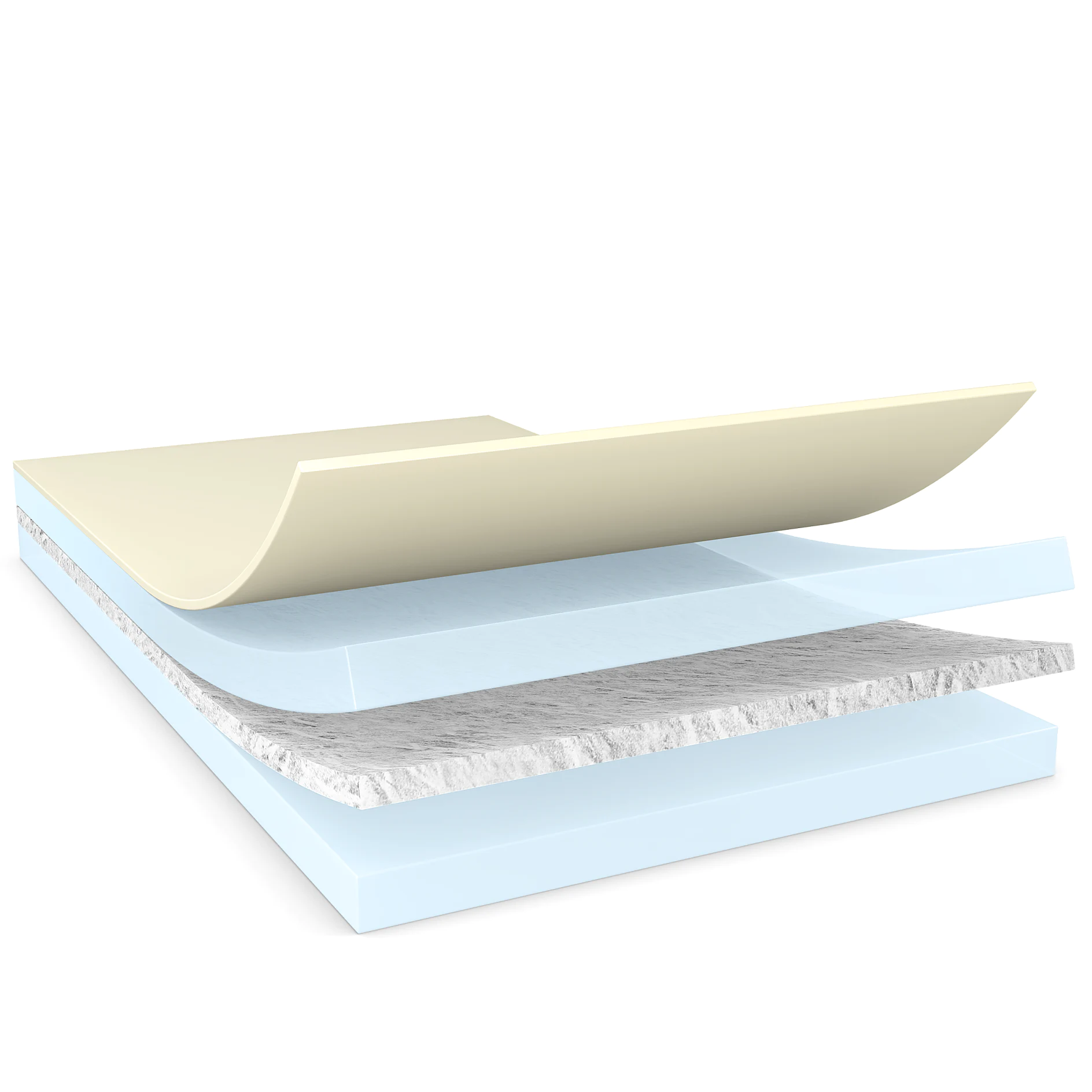

Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | non-woven |
| Color | translucent |
| Liner Type | PE-coated paper |
| Total thickness | 100 µm |
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | non-woven |
| Color | translucent |
| Liner Type | PE-coated paper |
| Total thickness | 100 µm |
Properties / Performance Values
| Chemical Resistance | medium |
|---|---|
| Fogging | good |
| Temperature resistance short term | 150 °C |
| Static shear resistance at 70°C | good |
| Static shear resistance at 23°C | very good |
| Temperature resistance long term | 70 °C |
| Tack | good |
| Humidity resistance | good |
| Ageing resistance (UV) | good |
Properties / Performance Values
| Chemical Resistance | medium |
|---|---|
| Fogging | good |
| Temperature resistance short term | 150 °C |
| Static shear resistance at 70°C | good |
| Static shear resistance at 23°C | very good |
| Temperature resistance long term | 70 °C |
| Tack | good |
| Humidity resistance | good |
| Ageing resistance (UV) | good |
Adhesion to Values
| Adhesion to ABS (initial) | 7.5 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 9.3 N/cm |
| Adhesion to PC (initial) | 7.7 N/cm |
| Adhesion to PC (after 14 days) | 7.1 N/cm |
| Adhesion to PE (initial) | 4.4 N/cm |
| Adhesion to PE (after 14 days) | 5.6 N/cm |
| Adhesion to PET (initial) | 7.5 N/cm |
| Adhesion to PET (after 14 days) | 7.7 N/cm |
| Adhesion to PP (initial) | 5.9 N/cm |
| Adhesion to PP (after 14 days) | 7.3 N/cm |
| Adhesion to PVC (initial) | 6 N/cm |
| Adhesion to PVC (after 14 days) | 9 N/cm |
| Adhesion to Steel (initial) | 6 N/cm |
| Adhesion to Steel (after 14 days) | 10 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 7.5 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 9.3 N/cm |
| Adhesion to PC (initial) | 7.7 N/cm |
| Adhesion to PC (after 14 days) | 7.1 N/cm |
| Adhesion to PE (initial) | 4.4 N/cm |
| Adhesion to PE (after 14 days) | 5.6 N/cm |
| Adhesion to PET (initial) | 7.5 N/cm |
| Adhesion to PET (after 14 days) | 7.7 N/cm |
| Adhesion to PP (initial) | 5.9 N/cm |
| Adhesion to PP (after 14 days) | 7.3 N/cm |
| Adhesion to PVC (initial) | 6 N/cm |
| Adhesion to PVC (after 14 days) | 9 N/cm |
| Adhesion to Steel (initial) | 6 N/cm |
| Adhesion to Steel (after 14 days) | 10 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
