Additional Info
Liner variants:
PV0 white PE coated paper plain
PV4 white PE coated paper with blue tesa logo
PV0 white PE coated paper plain
PV4 white PE coated paper with blue tesa logo

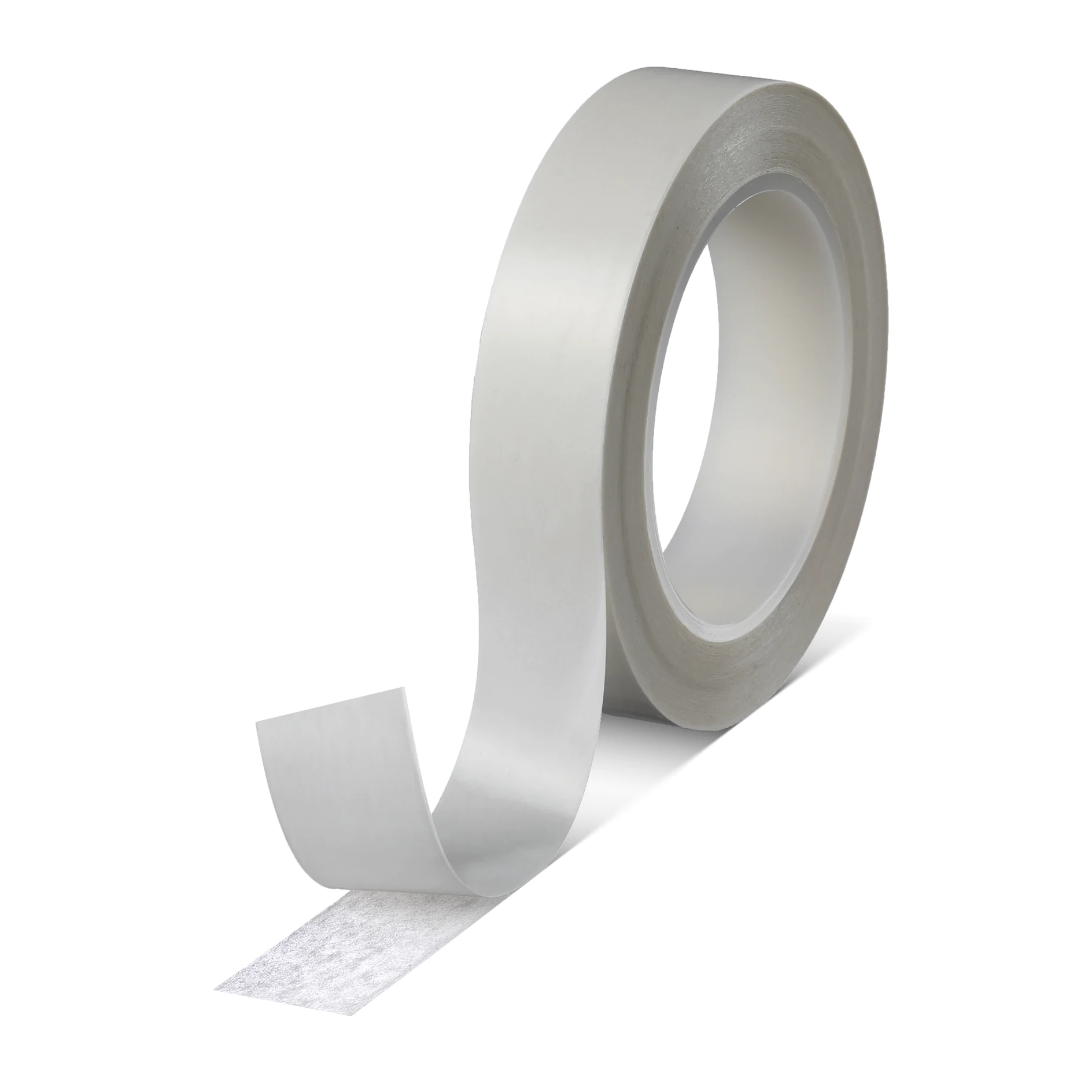

Double-sided non woven tape
tesa® 4943 is a double-sided tape consisting of a non woven backing equipped with a solvent based tackified acrylic adhesive.
Adhesive Type | tackified acrylic |
---|---|
Backing material | non-woven |
Color | translucent |
Color of liner | white |
Liner Type | PE-coated paper |
Thickness of liner | 120 µm |
Total thickness | 100 µm |
Type of adhesive (covered side) | tackified acrylic |
Adhesive Type | tackified acrylic |
---|---|
Backing material | non-woven |
Color | translucent |
Color of liner | white |
Liner Type | PE-coated paper |
Thickness of liner | 120 µm |
Total thickness | 100 µm |
Type of adhesive (covered side) | tackified acrylic |
Elongation at break | 2 % |
---|---|
Tensile strength | 9 N/cm |
Ageing resistance (UV) | good |
Static shear resistance at 23°C | good |
Tack | good |
Temperature resistance short term | 100 °C |
Humidity resistance | good |
Chemical Resistance | medium |
Static shear resistance at 70°C | good |
Fogging | good |
Temperature resistance long term | 70 °C |
Static shear resistance at 40°C | medium |
Elongation at break | 2 % |
---|---|
Tensile strength | 9 N/cm |
Ageing resistance (UV) | good |
Static shear resistance at 23°C | good |
Tack | good |
Temperature resistance short term | 100 °C |
Humidity resistance | good |
Chemical Resistance | medium |
Static shear resistance at 70°C | good |
Fogging | good |
Temperature resistance long term | 70 °C |
Static shear resistance at 40°C | medium |
Adhesion to ABS (initial) | 6.6 N/cm |
---|---|
Adhesion to ABS (after 14 days) | 7.1 N/cm |
Adhesion to Aluminium (initial) | 3.6 N/cm |
Adhesion to Aluminium (after 14 days) | 4.2 N/cm |
Adhesion to PC (initial) | 7.7 N/cm |
Adhesion to PC (after 14 days) | 7.1 N/cm |
Adhesion to PET (initial) | 4.6 N/cm |
Adhesion to PET (after 14 days) | 5.4 N/cm |
Adhesion to PS (initial) | 6.9 N/cm |
Adhesion to PVC (initial) | 6.1 N/cm |
Adhesion to PVC (after 14 days) | 10.8 N/cm |
Adhesion to Steel (initial) | 5.5 N/cm |
Adhesion to Steel (after 14 days) | 8.1 N/cm |
Adhesion to ABS (initial) | 6.6 N/cm |
---|---|
Adhesion to ABS (after 14 days) | 7.1 N/cm |
Adhesion to Aluminium (initial) | 3.6 N/cm |
Adhesion to Aluminium (after 14 days) | 4.2 N/cm |
Adhesion to PC (initial) | 7.7 N/cm |
Adhesion to PC (after 14 days) | 7.1 N/cm |
Adhesion to PET (initial) | 4.6 N/cm |
Adhesion to PET (after 14 days) | 5.4 N/cm |
Adhesion to PS (initial) | 6.9 N/cm |
Adhesion to PVC (initial) | 6.1 N/cm |
Adhesion to PVC (after 14 days) | 10.8 N/cm |
Adhesion to Steel (initial) | 5.5 N/cm |
Adhesion to Steel (after 14 days) | 8.1 N/cm |
Download the files below for more technical details and information on this product.
