Product information

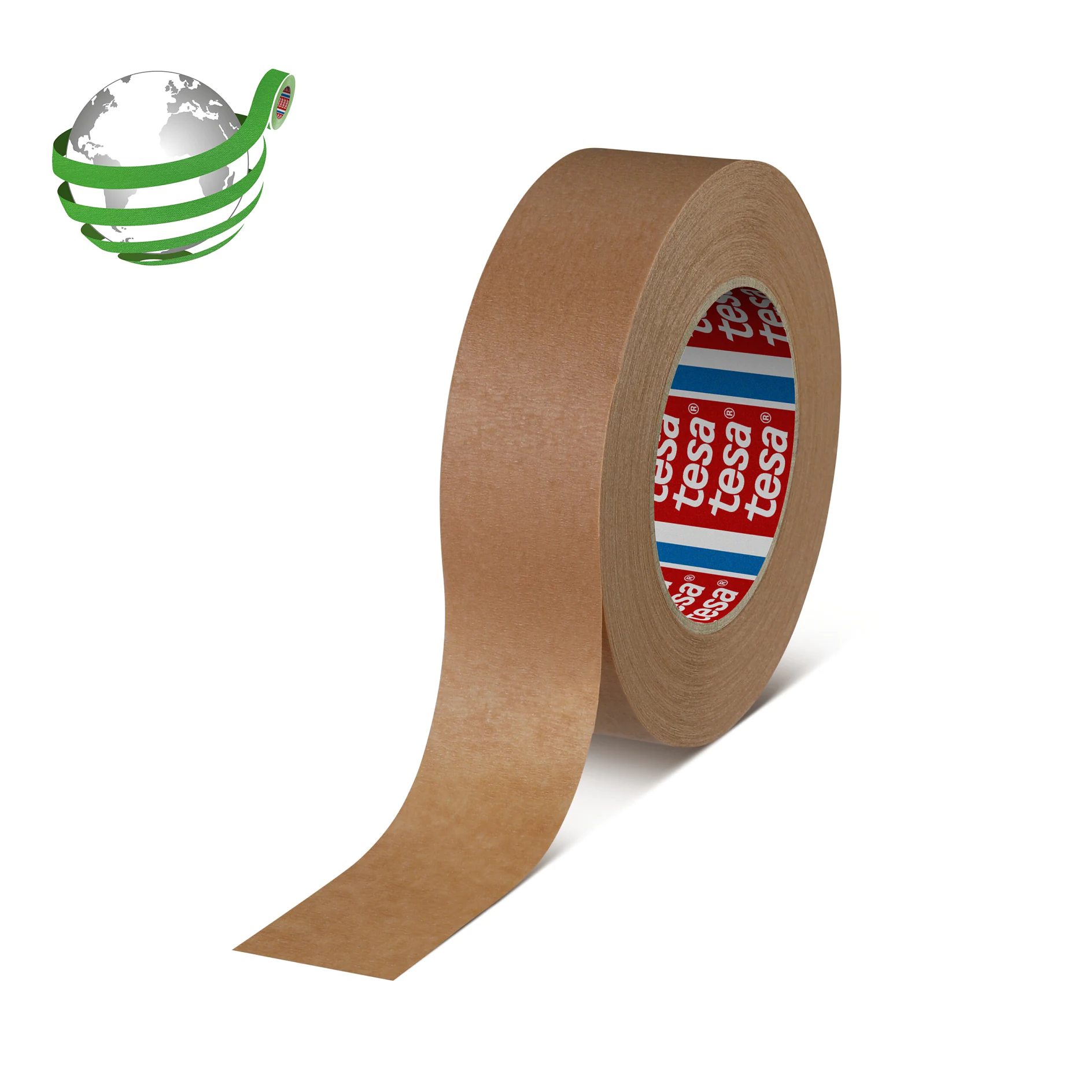

tesa® 4309 PV1

Car masking tape with a balanced adhesive strength for ambitious lacquering work - excellent flexibility for curves, easy to handle.



Product description

tesa® 4309 is a car masking tape used by painting businesses for challenging paint jobs. The slightly creped car masking tape is particularly stretchable and flexible, allowing critical areas such as corners to be masked easily. It can also be torn by hand and is easy to handle. Thanks to a natural rubber adhesive mass, the supple car masking tape has outstanding adhesive strength, is watertight with very good adhesion to paint and fillers, and enables sharp paint contour edges. The paper masking tape resists temperatures of up to 120 °C and can be pulled off easily without residue after oven drying.

Main applications

  • tesa® 4309 is ideal for demanding masking tasks
  • The masking tape can be used with various surfaces like metal, rubber, glass, and plastic
  • The high-temperature masking tape can be used for oven-drying
  • The tape is hand-tearable
  • The tape offers excellent paint anchorage on reverse side
tesa-4309-pv1-masking-tape-for-paint-spraying-120c-brown-043090001301-pr
tesa_04309_ap_001_fullsize
tesa_04309_ap_002_fullsize
tesa-4309-masking-tape-for-paint-spraying-01-ap
tesa-4309-masking-tape-for-paint-spraying-step1of7-ap
tesa-4309-masking-tape-for-paint-spraying-step2of7-ap
tesa-4309-masking-tape-for-paint-spraying-step3of7-ap
tesa-4309-masking-tape-for-paint-spraying-step4of7-ap
tesa-4309-masking-tape-for-paint-spraying-step5of7-ap
tesa-4309-masking-tape-for-paint-spraying-step6of7-ap
tesa-4309-masking-tape-for-paint-spraying-step7of7-ap

tesa-4309-pv1-masking-tape-for-paint-spraying-120c-brown-043090001301-pr

tesa_04309_ap_001_fullsize

tesa_04309_ap_002_fullsize

tesa-4309-masking-tape-for-paint-spraying-01-ap

tesa-4309-masking-tape-for-paint-spraying-step1of7-ap

tesa-4309-masking-tape-for-paint-spraying-step2of7-ap

tesa-4309-masking-tape-for-paint-spraying-step3of7-ap

tesa-4309-masking-tape-for-paint-spraying-step4of7-ap

tesa-4309-masking-tape-for-paint-spraying-step5of7-ap

tesa-4309-masking-tape-for-paint-spraying-step6of7-ap

tesa-4309-masking-tape-for-paint-spraying-step7of7-ap

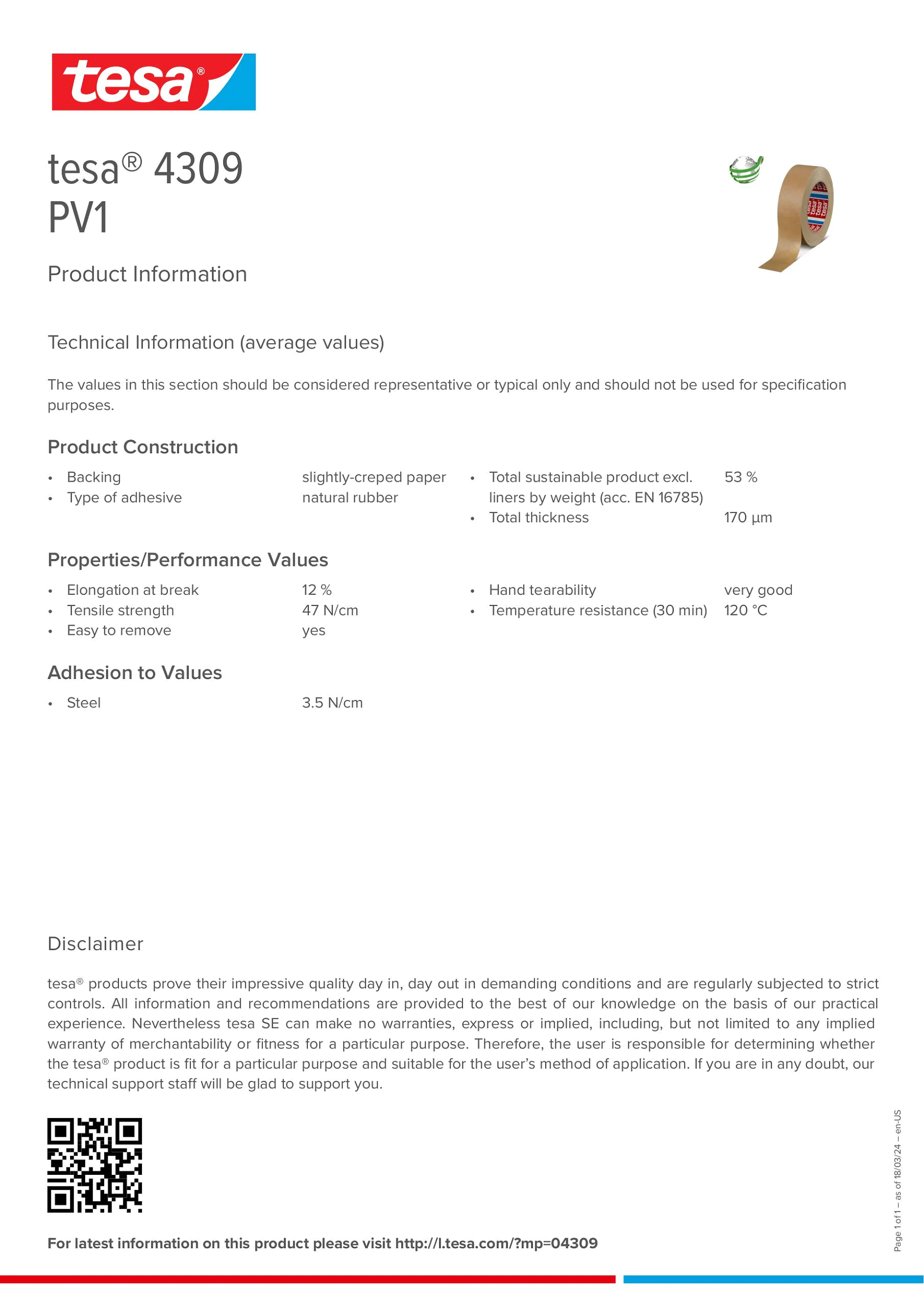

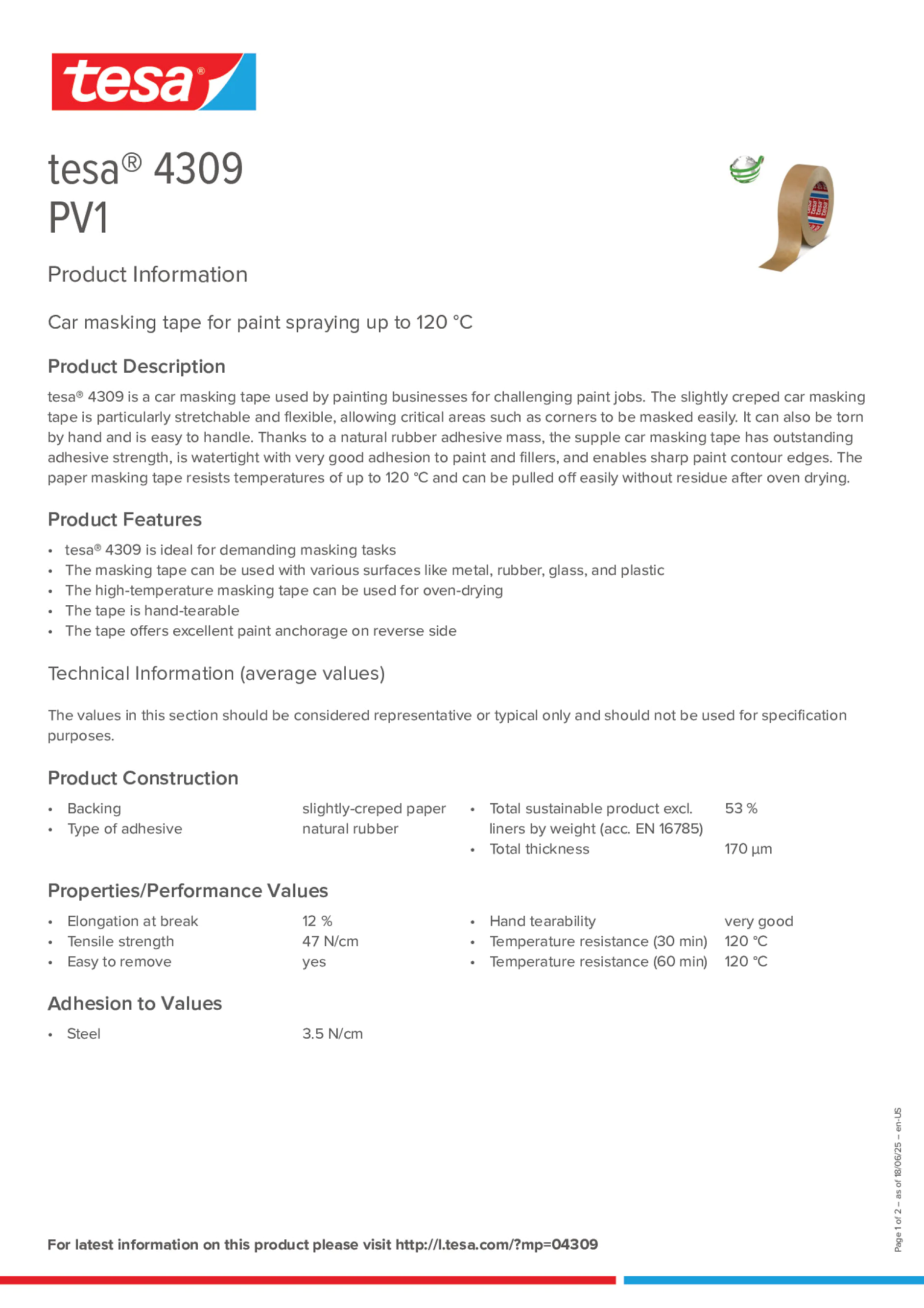

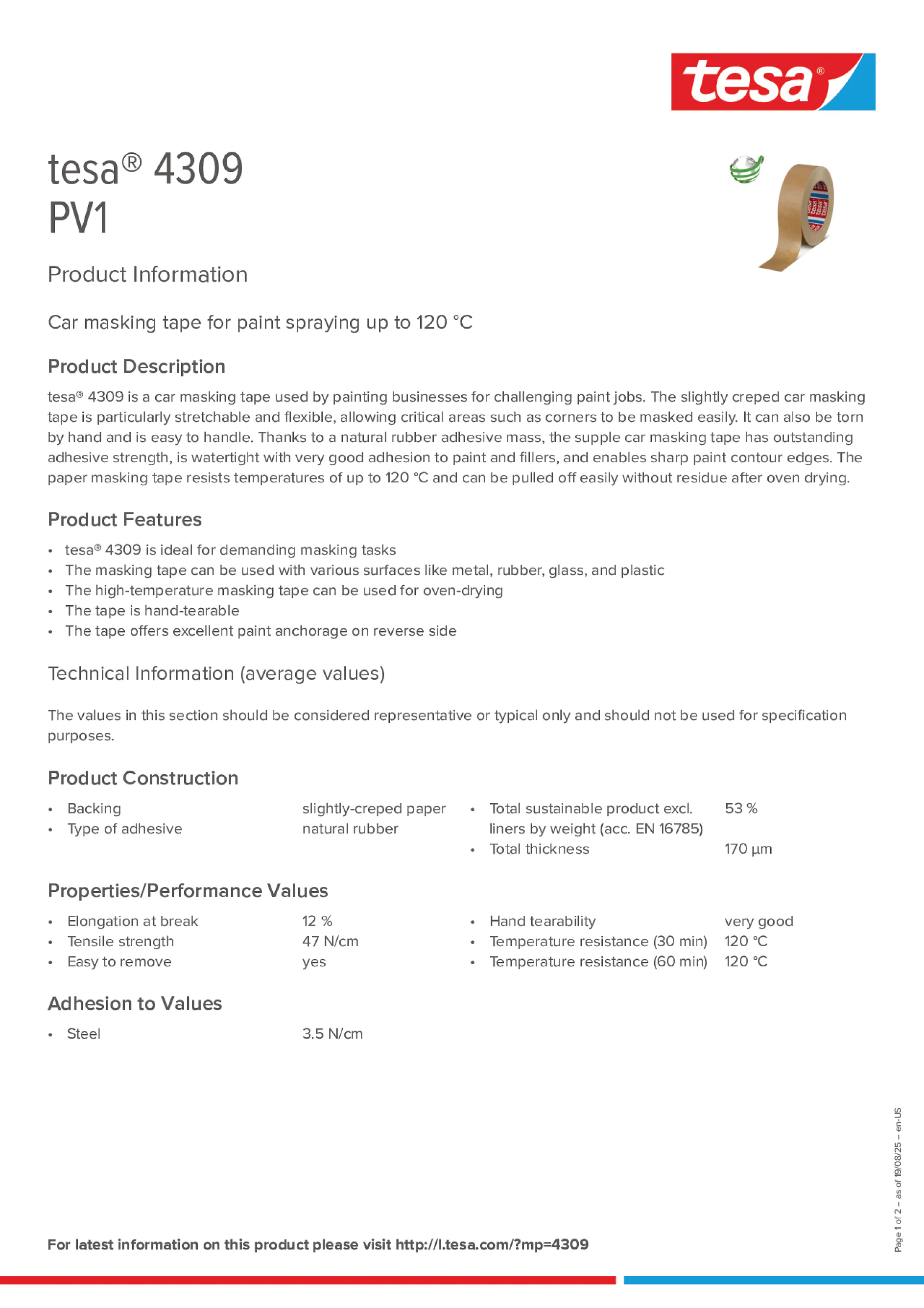

Technical properties

Backing material

slightly-creped paper

Total thickness

170 µm

Type of adhesive

natural rubber

Adhesion to steel

3.5 N/cm

Elongation at break

12 %

Tensile strength

47 N/cm

Temperature resistance

120 °C

Rating properties

Hand tearability

++

Easy to remove

yes

Paint anchorage

++

Sharp colour edge

+

Conformability

+

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
