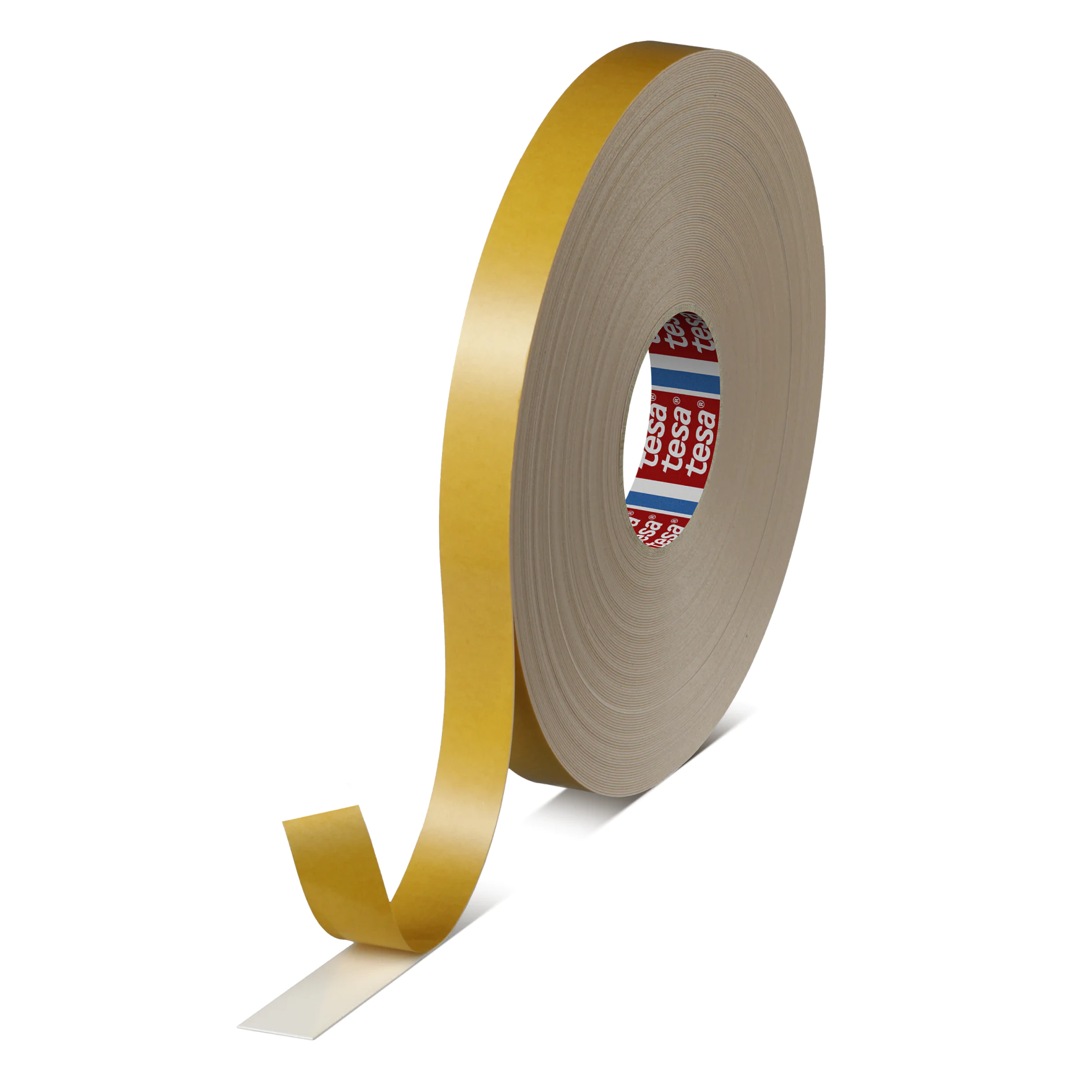

tesa® 62934

Double-sided PE-foam mounting tape


The product is available in our partners' shops
Product Features
  • Versatile adhesive for high immediate adhesion on numerous substrates
  • High ultimate adhesion level for a secure bonding performance
  • Fully outdoor suitable: UV, water and ageing resistant
All product features
Product description

tesa® 62934 is a double-sided PE-foam tape for constructive mounting applications. It consists of a highly conformable PE-foam backing and a tackified acrylic adhesive.

Product benefits:

  • Versatile adhesive for high immediate adhesion on numerous substrates
  • High ultimate adhesion level for a secure bonding performance
  • UV, water and ageing resistant
  • Compensates for differing thermal expansion of dissimilar materials
  • High immediate bonding strength even at low bonding pressure
  • Very good cold shock absorbtion


Product details and specifications

Product Features

  • Versatile adhesive for high immediate adhesion on numerous substrates
  • High ultimate adhesion level for a secure bonding performance
  • Fully outdoor suitable: UV, water and ageing resistant
  • Compensates for differing thermal expansion of dissimilar materials
  • High immediate bonding strength even at low bonding pressure
  • Very good cold shock absorbtion

Application Fields

  • Decorative aluminium cover screens on brown goods
  • Doorhandles in kitchen furniture
  • Moulded plastic parts
  • Mirrors and coloured glass panels
Backing material PE foam
Colour black/white
Total thickness 800 µm
Type of adhesive tackified acrylic
Elongation at break 250 %
Tensile strength 8 N/cm
Humidity resistance very good
Static shear resistance at 40°C good
Ageing resistance (UV) good
Temperature resistance long term duration 80 °C
Temperature resistance short term duration 80 °C
Tack good
Static shear resistance at 23°C good
Softener resistance medium
Adhesion to ABS (initial) 17 N/cm
Adhesion to ABS (after 14 days) 17 N/cm
Adhesion to Aluminium (initial) 17 N/cm
Adhesion to Aluminium (after 14 days) 17 N/cm
Adhesion to PC (initial) 15 N/cm
Adhesion to PC (after 14 days) 17 N/cm
Adhesion to PE (initial) 2.7 N/cm
Adhesion to PE (after 14 days) 2.8 N/cm
Adhesion to PET (initial) 12.5 N/cm
Adhesion to PET (after 14 days) 17 N/cm
Adhesion to PP (initial) 2.8 N/cm
Adhesion to PP (after 14 days) 5.5 N/cm
Adhesion to PS (initial) 15 N/cm
Adhesion to PS (after 14 days) 17 N/cm
Adhesion to PVC (initial) 17 N/cm
Adhesion to PVC (after 14 days) 17 N/cm
Adhesion to Steel (initial) 17 N/cm
Adhesion to Steel (after 14 days) 17 N/cm
Liner variants:
PV0 brown glassine paper (71 µm)
PV14 white PE-coated paper (120 µm)
PV10 red filmic liner (120 µm)

tesa® 62934 has been tested by TÜV Rheinland, Germany. The test confirms the longterm adhesion performance after IEC 61215 / 61646 climate tests and a 85°C temperature resistance. (TÜV report number 21209595).

Peel Adhesion:
- immediate: foam splitting on Steel, Aluminium, ABS
- after 14 days: foam splitting on Steel, Aluminium, ABS, PC, PS, PET, PVC
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Get in contact with us!

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product tesa® 62934 tesa® flameXtinct 45001 tesa® 55576 tesa® 62510 tesa® 62516 tesa® 62512 tesa® 62932 tesa® 62455 tesa® 4976 tesa® 62530 tesa® 62508 tesa® 62520
Total thickness
800 µm
1,000 µm
1,200 µm
1,000 µm
1,600 µm
1,200 µm
500 µm
1,000 µm
540 µm
3,000 µm
800 µm
2,000 µm
Type of adhesive
tackified acrylic
FR acrylic
acrylic
tackified acrylic
tackified acrylic
tackified acrylic
tackified acrylic
water-based acrylic
tackified acrylic
tackified acrylic
tackified acrylic
tackified acrylic
Backing material
PE foam
FR PE foam
PE foam
PE foam
PE foam
PE foam
PE foam
PE foam
PU foam
PE foam
PE foam
PE foam
Colour
black/white
white
white
black/white
black/white
black/white
black/white
white
black
black/white
black/white
black/white
Adhesion to Steel (initial)
17 N/cm
19.2 N/cm
5.5 N/cm
13.5 N/cm
13.5 N/cm
13.5 N/cm
13 N/cm
10 N/cm
6 N/cm
13.5 N/cm
6 N/cm
Adhesion to Steel (after 14 days)
17 N/cm
22 N/cm
13.5 N/cm
13.5 N/cm
13.5 N/cm
17 N/cm
12 N/cm
6 N/cm
13.5 N/cm
6 N/cm
Adhesion to PVC (initial)
17 N/cm
3 N/cm
13.5 N/cm
5.5 N/cm
8 N/cm
14.5 N/cm
6 N/cm
5.5 N/cm
6 N/cm
8 N/cm
6 N/cm
