tesa® 62626
300µm double sided black high performance foam tape
Product Features
- Thickness: 300µm
- Very high bonding strength
- Highly conformable foam backing provides excellent shock resistance
Product description

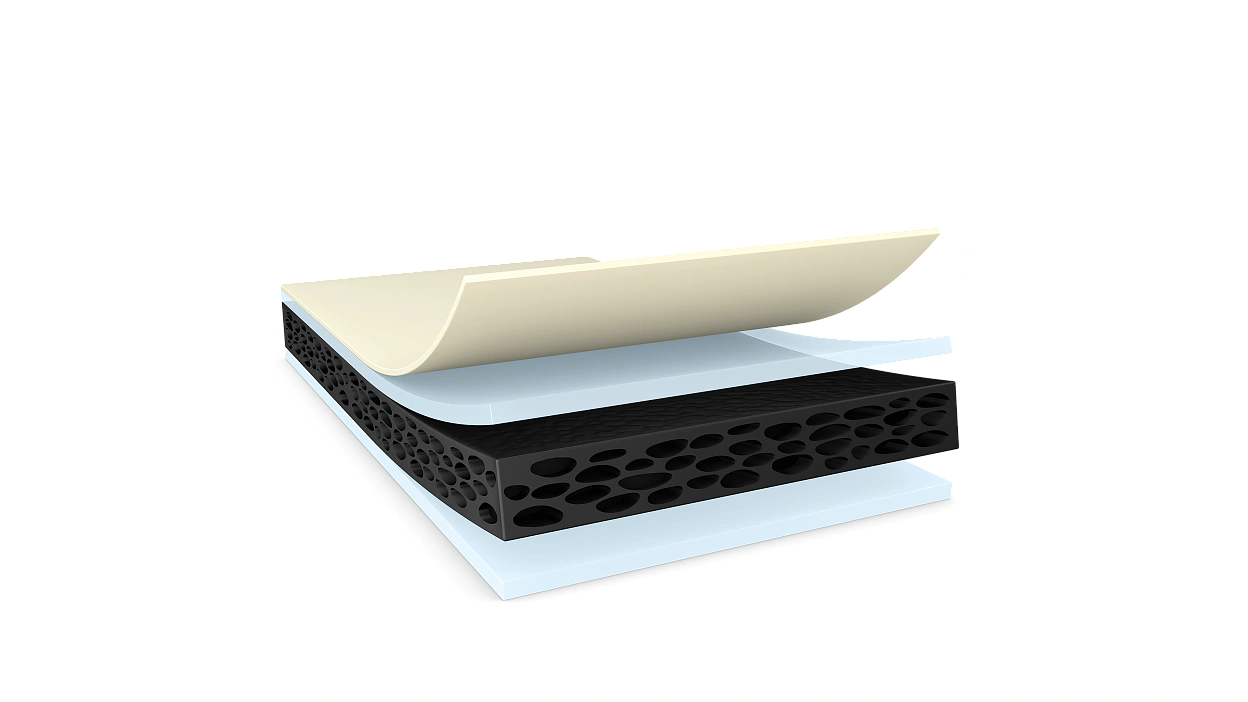

tesa® 62626 is a black double sided thin foam tape. The tape is equipped with a tackified acrylic adhesive.
Product details and specifications
Product Features
- Thickness: 300µm
- Very high bonding strength
- Highly conformable foam backing provides excellent shock resistance
- Superior push out resistance due to strong high performance adhesive
- Good sealing function versus humidity and dust
- Waterproofness
Application Fields

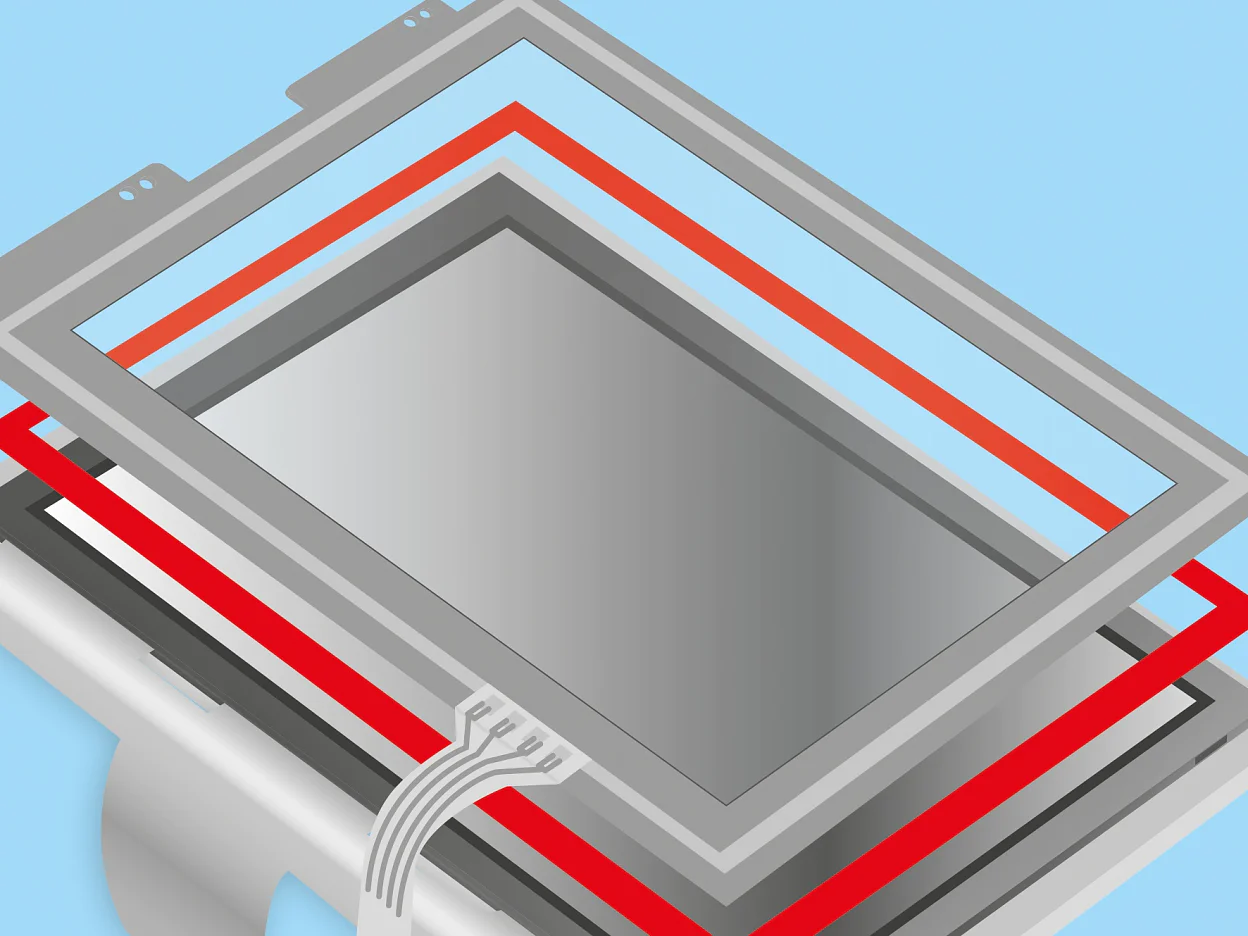

- Touch panel mounting
- Lens mounting in mobile phones
- LCD cover / front panel mounting in notebooks
- Mounting on uneven surfaces and rough surfaces
| Backing material | PE foam |
|---|---|
| Colour | black |
| Thickness of liner | 50 µm |
| Total thickness | 300 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | PET |
| Elongation at break | 340 % |
|---|---|
| Tensile strength | 6.7 N/cm |
| Static shear resistance at 40°C | very good |
| Static shear resistance at 23°C | very good |
| Adhesion to ABS (initial) | 12 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 15.5 N/cm |
| Adhesion to Aluminium (initial) | 12 N/cm |
| Adhesion to Aluminium (after 14 days) | 14.5 N/cm |
| Adhesion to Glass (initial) | 15 N/cm |
| Adhesion to Glass (after 14 days) | 16 N/cm |
| Adhesion to PC (initial) | 15 N/cm |
| Adhesion to PC (after 14 days) | 16 N/cm |
| Adhesion to PMMA (initial) | 15 N/cm |
| Adhesion to PMMA (after 14 days) | 16 N/cm |
| Adhesion to Steel (initial) | 13 N/cm |
| Adhesion to Steel (after 14 days) | 16 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
