tesa® 61054
250μm d/s black flexible acrylic foam tape
Product Features
- Thickness: 250 μm
- Very high shock performance
- Very high thermal and cold shock resistance
Product description

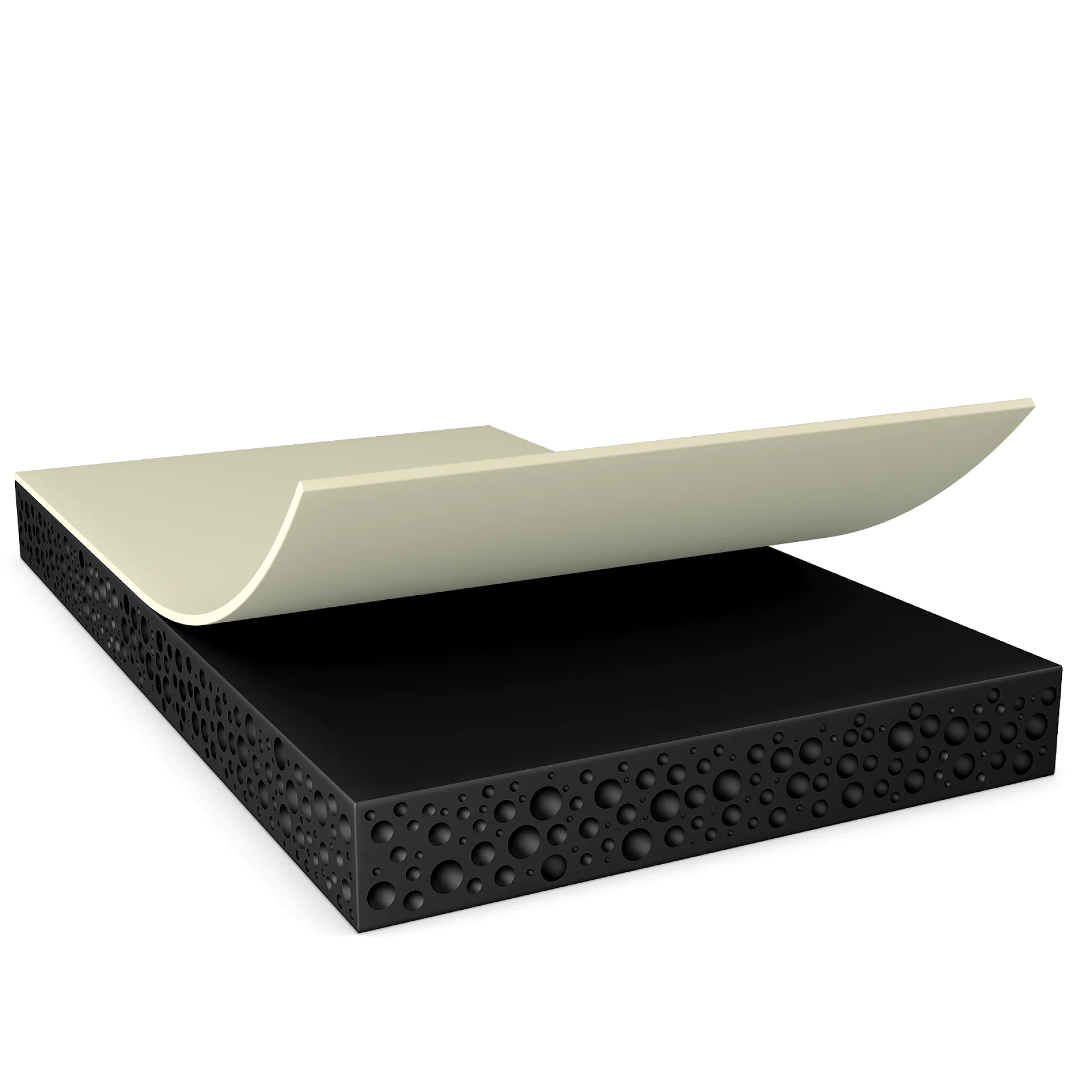

tesa® 61054 is a double-sided black tape consisting of a high shock absorbing black acrylic foam.
Product details and specifications
Product Features
- Thickness: 250 μm
- Very high shock performance
- Very high thermal and cold shock resistance
- Very high bonding strength for wide temperature range
- Good anti-repulsion properties to prevent lifting
- Waterproofing
- Light blocking
Application Fields
- Display or touch panel mounting for electronic devices and infotainment systems
- Compensation of mechanical stress (e.g. gap filling and thermal elongation)
- Mounting of waterproof designs
| Backing material | Acrylic |
|---|---|
| Colour | black |
| Colour of liner | transparent |
| Thickness of liner | 75 µm |
| Total thickness | 250 µm |
| Type of adhesive | modified acrylic |
| Type of liner | PET |
| Weight of liner | 105 g/m² |
| Temperature resistance long term duration | 90 °C |
|---|---|
| Transmittance (380 - 780nm) < | 0.001 % |
| Ageing resistance (UV) | very good |
| Temperature resistance short term duration | 180 °C |
| Static shear resistance at 40°C | very good |
| Adhesion to Aluminium (initial) | 8.5 N/cm |
|---|---|
| Adhesion to Aluminium (after 3 days) | 15.5 N/cm |
| Adhesion to Glass (initial) | 17 N/cm |
| Adhesion to Glass (after 3 days) | 18.5 N/cm |
| Adhesion to PC (initial) | 14 N/cm |
| Adhesion to PC (after 3 days) | 28.7 N/cm |
| Adhesion to Steel (initial) | 16 N/cm |
| Adhesion to Steel (after 14 days) | 19 N/cm |
| Adhesion to Steel (after 3 days) | 19 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
