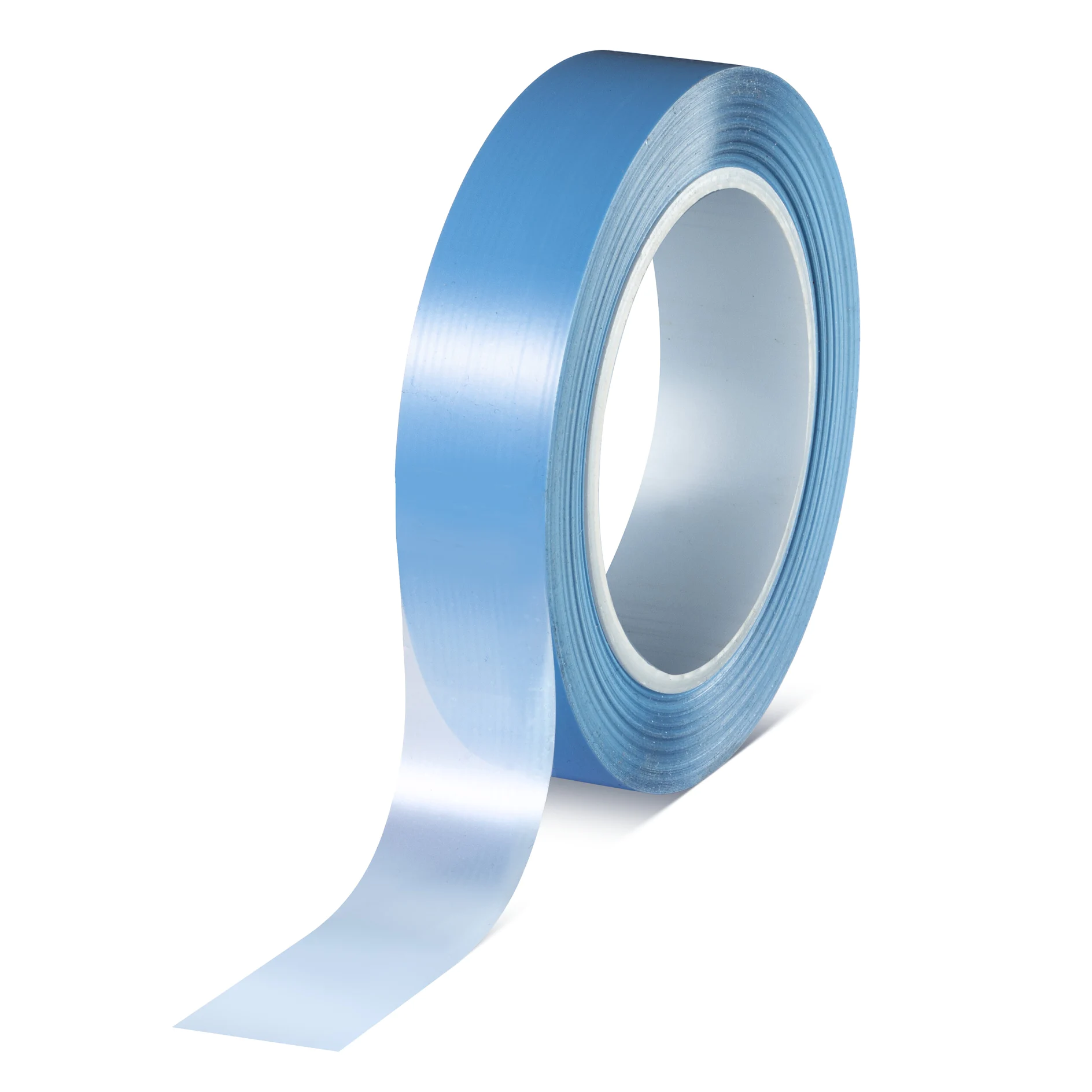

tesa® 61022 Electrical Insulation

56 µm PCR-PET tape for Electrical Insulation applications


Sustainable Aspects
  • 70% Post-Consumer Recycled (PCR) PET-backing
  • Water-based technology
  • No liner
Product Features
  • Dielectric breakdown and leakage current protection
  • Anti-Repulsion performance
  • Reworkability

Product description

tesa® 61022 is a 56 µm PCR-PET tape with a water-based acrylic adhesive. tesa® 61022 was designed for electrical insulation applications. The tape is available in tawny and blue.


Product details and specifications

Product Features

  • Dielectric breakdown and leakage current protection
  • Anti-Repulsion performance
  • Reworkability

Application Fields

  • Cell-Wrapping
  • Metal-Part Insulation

Sustainable Aspects

  • 70% Post-Consumer Recycled (PCR) PET-backing
  • Water-based technology
  • No liner
Backing material PET film
Total thickness 56
Type of adhesive water-based acrylic
Elongation at break 80 %
Tensile strength 50
CTI (adhesive side) 600 V
Breakdown voltage 6 KV
CTI (backing side) 400 V
Adhesion to steel 3.2 N/cm
The product is available in blue and tawny and is especially used for converters.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Get in contact with us!

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product tesa® 61022 Electrical Insulation tesa® 61003 PV1 tesa® 61002 PV1 tesa® 61001 tesa® 58316 tesa® 58315 tesa® 58314 tesa® 58311 Fire Protection Tape tesa® 58330 tesa® 58347 tesa® 58338 PV1
Total thickness
56
56 µm
56 µm
56 µm
33 µm
35 µm
25
1,150 µm
55 µm
110 µm
85 µm
Type of adhesive
water-based acrylic
water-based acrylic
water-based acrylic
water-based acrylic
acrylic
acrylic
acrylic
acrylic
acrylic
water-based acrylic
water-based acrylic
Backing material
PET film
PET film
PET film
PET
Post consumer recycled PET
PP film
PP film
fibreglass
PET film
PET film
PET film
