tesa® 58347
110 µm PET tape for Electrical Insulation applications
Product Features
- Dielectric breakdown and leakage current protection
- Anti-Repulsion performance
- Optimized for process automation and automated in-line detection
Product description

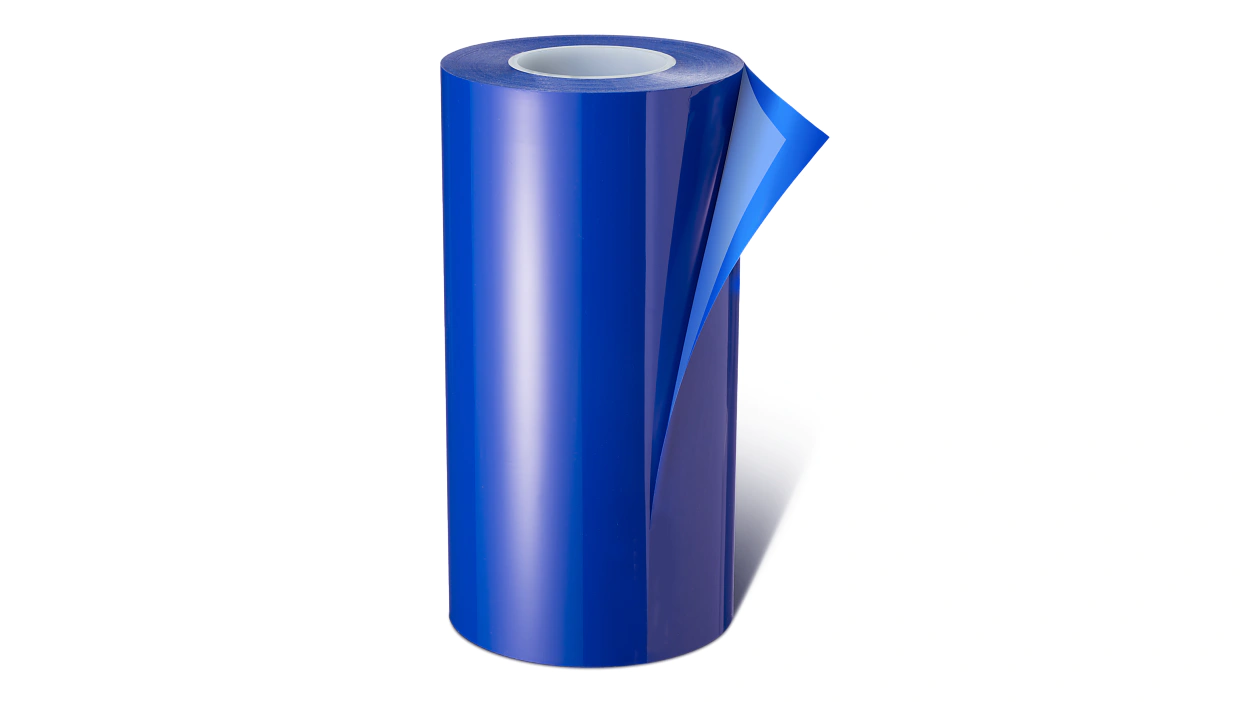

tesa® 58347 is a blue 110 µm PET sandwich tape with a water-based acrylic adhesive. tesa® 58347 has been designed for electrical insulation applications in EV batteries.
Product details and specifications
Product Features
- Dielectric breakdown and leakage current protection
- Anti-Repulsion performance
- Optimized for process automation and automated in-line detection
- Reworkability
Application Fields
- Cell-Wrapping
- Metal-Part Insulation
Product Construction
| Backing material | PET film |
|---|---|
| Colour of liner | transparent |
| Thickness of liner | 23 µm |
| Total thickness | 110 µm |
| Type of adhesive | water-based acrylic |
| Type of liner | PET film |
Product Construction
| Backing material | PET film |
|---|---|
| Colour of liner | transparent |
| Thickness of liner | 23 µm |
| Total thickness | 110 µm |
| Type of adhesive | water-based acrylic |
| Type of liner | PET film |
Properties / Performance Values
| Elongation at break | 50 % |
|---|---|
| Tensile strength | 60 N/cm |
| Breakdown voltage | 9 KV |
| CTI (adhesive side) | 600 V |
| Liner removal force | 10 cN/cm |
| CTI (backing side) | 600 V |
Properties / Performance Values
| Elongation at break | 50 % |
|---|---|
| Tensile strength | 60 N/cm |
| Breakdown voltage | 9 KV |
| CTI (adhesive side) | 600 V |
| Liner removal force | 10 cN/cm |
| CTI (backing side) | 600 V |
Adhesion to Values
| Adhesion to steel | 4.1 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 4.1 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
