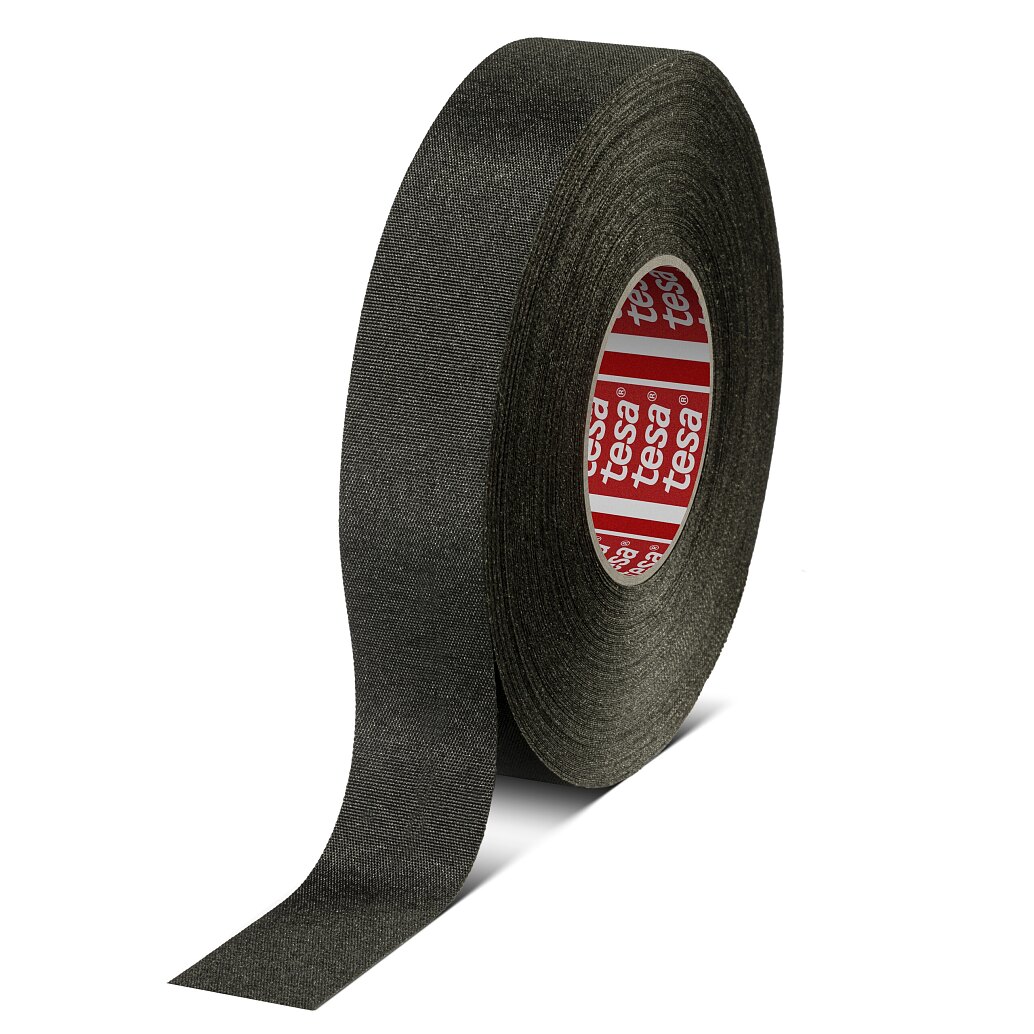

tesa® 51036 PV01
PET cloth tape for high abrasion protection
Product description
tesa® 51036 is a PET cloth wire harness tape with an advanced acrylic adhesive (triple A®).
Major Features:
- High temperature resistance 150°C/3000h
- High abrasion resistance
Colour: Black and orange
Product details and specifications
Application Fields
tesa® 51036 is designed for the engine compartment, providing high abrasion protection.
Product Construction
| Backing material | PET cloth |
|---|---|
| Total thickness | 260 µm |
| Type of adhesive | advanced acrylic |
Product Construction
| Backing material | PET cloth |
|---|---|
| Total thickness | 260 µm |
| Type of adhesive | advanced acrylic |
Properties / Performance Values
| Elongation at break | 40 % |
|---|---|
| Tensile strength | 275 N/cm |
| Unwind force (roll width > 9mm) | 11 N/roll (30 m/min) |
| Minimum temperature resistance | -40 °C |
| Abrasion resistance (5mm mandrel, LV312) | Class D |
| Temperature resistance max | 150 °C |
| Noise damping (LV312) | Class A |
| Unwind force (roll width ≤ 9mm) | 11 N/roll (30 m/min) |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
Properties / Performance Values
| Elongation at break | 40 % |
|---|---|
| Tensile strength | 275 N/cm |
| Unwind force (roll width > 9mm) | 11 N/roll (30 m/min) |
| Minimum temperature resistance | -40 °C |
| Abrasion resistance (5mm mandrel, LV312) | Class D |
| Temperature resistance max | 150 °C |
| Noise damping (LV312) | Class A |
| Unwind force (roll width ≤ 9mm) | 11 N/roll (30 m/min) |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
Adhesion to Values
| Adhesion to steel | 5 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 5 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
