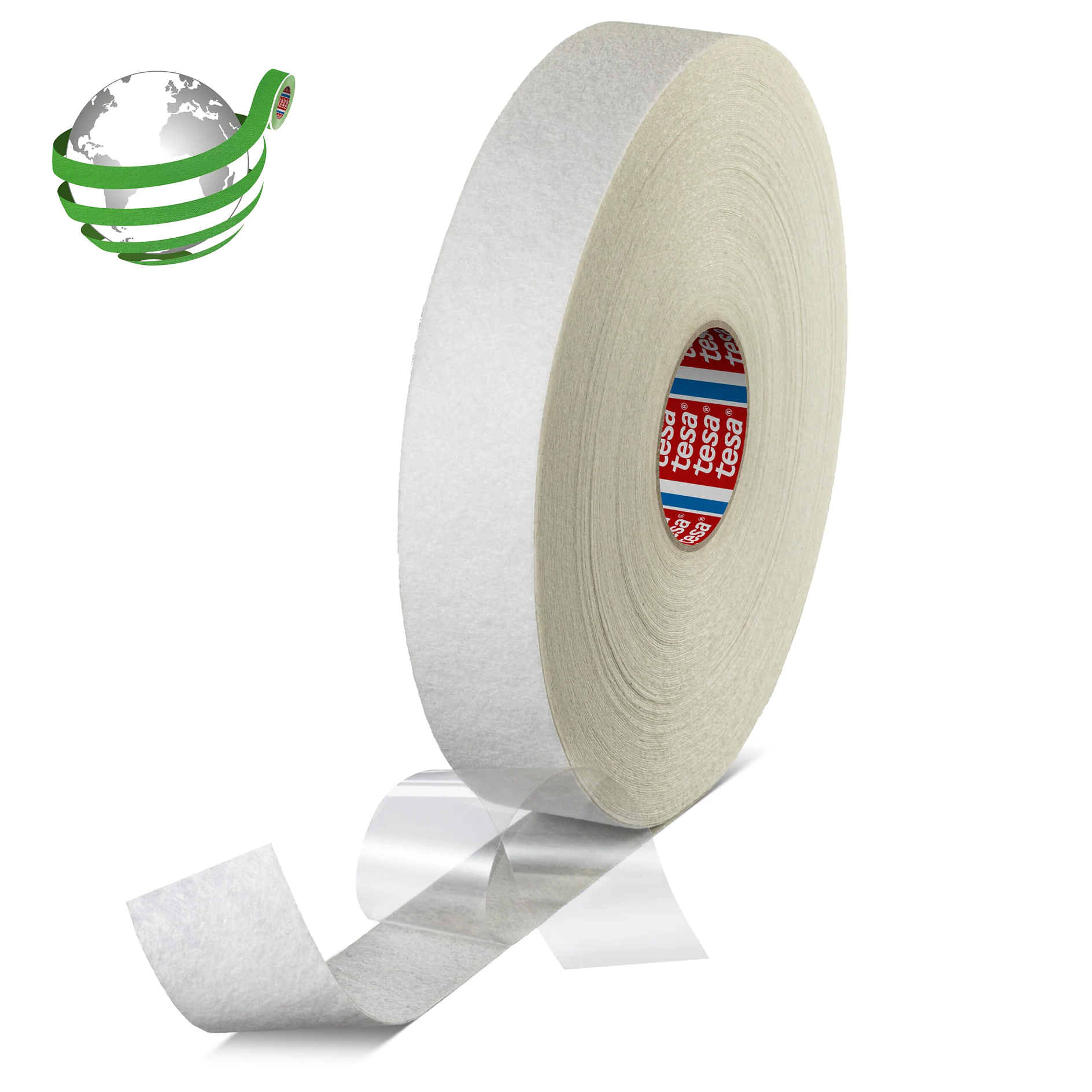

tesa® 50118 PV1 Ultra Low VOC

540 µm water-based acrylic adhesive with PET fleece backing for mounting application in automotive interiors

Product Features

Excellent damping properties
Low VOC (according to GB 27630) – no critical substances detectable
High peel resistance on irregular, rough, and nonpolar surfaces

All product features

Product description

tesa® 50118 PV1 is a 540 µm PET fleece tape with a water-based acrylic adhesive. This tape has been designed for a wide range of automotive interior applications like cable mounting and BSR prevention (buzz, squeak, and rattle prevention). Due to its low VOC property it is particularly designed to meet automotive interior requirements.
This tape is characterized by a high adhesion strength on critical surfaces like nonpolar and rough substrates.
tesa® 50118 PV1 is available in black and white and as a die-cut solution and is suitable for automatic dispensers.

Product details and specifications

Product Features

Excellent damping properties
Low VOC (according to GB 27630) – no critical substances detectable
High peel resistance on irregular, rough, and nonpolar surfaces
High shear strength
Tear resistant
Suitable for automatic tape dispensers

Application Fields

tesa® 50118 PV1 is suitable for mounting cables and wire harnesses on different components inside a car. It ensures quick and secure fixation of flat and round cables with excellent damping properties (BSR prevention).

Example applications are:

Mounting cables to headliners
BSR prevention in inner doors, dashboards, display frames, seat belt buckles, and other things

To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.

Backing material	PET fleece
Colour	black/white
Colour of liner	yellow
Thickness of liner	75 µm
Thickness of tape	540 µm
Type of adhesive	acrylic
Type of liner	glassine
Weight of liner	90 g/m²

Backing material	PET fleece
Colour	black/white
Colour of liner	yellow
Thickness of liner	75 µm
Thickness of tape	540 µm
Type of adhesive	acrylic
Type of liner	glassine
Weight of liner	90 g/m²

Elongation at break	70 %
Tensile strength	31 N/cm
Hand tearability	low
Static shear resistance	very good
Noise damping (LV312)	Class C
Temperature resistance short term duration	160 °C
Tack	very good
Suitable for rough surfaces	very good
Low VOC	very good

Elongation at break	70 %
Tensile strength	31 N/cm
Hand tearability	low
Static shear resistance	very good
Noise damping (LV312)	Class C
Temperature resistance short term duration	160 °C
Tack	very good
Suitable for rough surfaces	very good
Low VOC	very good

Adhesion to PET (initial)	8.5 N/cm
Adhesion to PET fleece Headliner A (initial)	3.9 N/cm
Adhesion to PET fleece surface (after 3 days)	5.2 N/cm
Adhesion to PET fleece Headliner A (after 3 days)	5.9 N/cm
Adhesion to PET fleece surface (initial)	5.2 N/cm
Adhesion to PET (after 3 days)	9.1 N/cm

Adhesion to PET (initial)	8.5 N/cm
Adhesion to PET fleece Headliner A (initial)	3.9 N/cm
Adhesion to PET fleece surface (after 3 days)	5.2 N/cm
Adhesion to PET fleece Headliner A (after 3 days)	5.9 N/cm
Adhesion to PET fleece surface (initial)	5.2 N/cm
Adhesion to PET (after 3 days)	9.1 N/cm

Kiss-cut solutions or die-cuts are available under tesa® 54118PV1 (white and black)
tesa’s automation and application department provides customized equipment and self-designed application tools to enhance productivity

Adhesion values to:
PET
PET fleece surface
PET fleece Headliner A
Are not part of the product specification

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Safety data sheet_tesa® 50118_en-GB_v16 131.4 kB Product information_tesa® 50118_en-GB 67.1 kB

Contact us

Thank you for your message.

We will conctact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® 50118 PV1 Ultra Low VOC	tesa® 50118 PV2 Low VOC	tesa® 50400	tesa® 52215	tesa® 50118 PV0 Ultra Low VOC	tesa® 50128 Low VOC	tesa® 58364
Type of adhesive	acrylic	modified acrylic	acrylic	water-based acrylic	acrylic	modified acrylic	tackified acrylic
Backing material	PET fleece	PET fleece	PET / non-woven	non-woven	PET fleece	non-woven	PET
Thickness of tape	540 µm	540 µm	350 µm		570 µm	390 µm	200 µm
Tensile strength	31 N/cm	31 N/cm	8.5 N/cm	10 N/cm	35 N/cm	33 N/cm
Tack	very good	very good	very good	good	good	very good
Total thickness				150 µm
