Additional Info
- Meets requirements of LV 312-1 dielectric strength 7500 Volts (3 layer)
- Meets requirements of the Siemens AG standard TLV 9027/01/06 for the usage in nuclear power plants

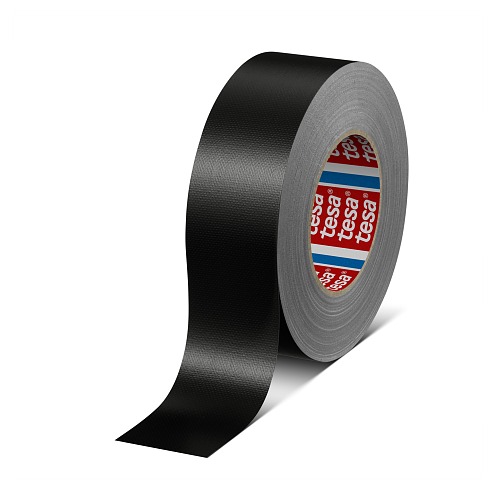

tesa® 4688
Standard polyethylene coated cloth tape
Product Features
- Strong adhesion, even on rough surfaces
- Waterproof
- Easy to unwind
Product description
tesa® 4688 is a standard grade polyethylene coated cloth tape. It is based on a 55 mesh woven PET/rayon fabric backing coated with a pressure sensitive natural rubber adhesive. tesa® 4688 is a typical repairing tape, convenient for a variety of needs with very good handling characteristics. Available in various colors.
Product details and specifications
Product Features
- Strong adhesion, even on rough surfaces
- Waterproof
- Easy to unwind
- Total halogen content < 1000 ppm
- Total sulphur content < 1000 ppm
Application Fields
- For maintenance in nuclear power plants
- Marking, masking, surface protecting
- Bonding of construction films
- Bundling of cables
| Backing material | PE extruded cloth |
|---|---|
| Total thickness | 260 µm |
| Type of adhesive | natural rubber |
| Type of liner | none |
| Elongation at break | 9 % |
|---|---|
| Tensile strength | 52 N/cm |
| Dielectric breakdown voltage | 2,900 V |
| Water resistance | good |
| Abrasion resistance | good |
| Straight tear edges | good |
| Temperature resistance (30 min) | 110 °C |
| Hand tearability | good |
| Temperature resistance (removability from aluminum after 30 min exposure) | 110 °C |
| Mesh | 55 count per square inch |
| Adhesion to steel | 4.5 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
