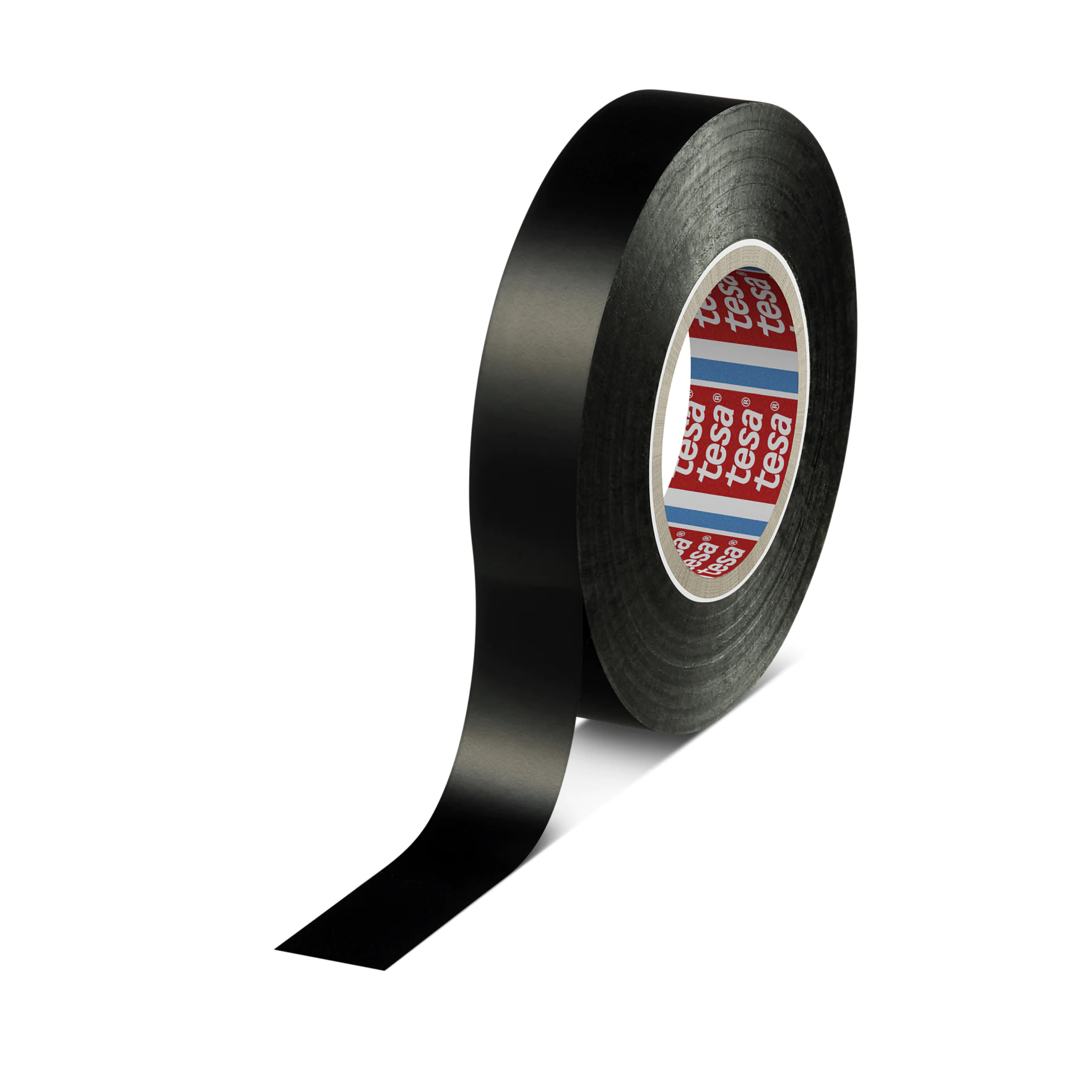

tesa® 4182 PV2
PVC film tape
Product description
tesa® 4182 PV2 is a PVC film tape with an acrylic adhesive for basic bundling of automotive harnesses used in the passenger compartment of vehicles. The tape is convenient to use due to its constant unwind force, flexible backing, and hand-tearability. It is optimized for manual application.
Product details and specifications
Application Fields
Wire Harnessing
Product Construction
| Backing material | PVC film |
|---|---|
| Total thickness | 104 µm |
| Type of adhesive | acrylic |
Product Construction
| Backing material | PVC film |
|---|---|
| Total thickness | 104 µm |
| Type of adhesive | acrylic |
Properties / Performance Values
| Elongation at break | 250 % |
|---|---|
| Tensile strength | 25 N/cm |
| Noise damping (LV312) | Class A |
| Unwind force (roll width ≤ 9mm) | 7.5 N/roll (30 m/min) |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Minimum temperature resistance | -25 °C |
| Temperature resistance max | 105 °C |
| Unwind force (roll width > 9mm) | 7.5 N/roll (30 m/min) |
| Abrasion resistance (10mm mandrel, LV312) | Class A |
Properties / Performance Values
| Elongation at break | 250 % |
|---|---|
| Tensile strength | 25 N/cm |
| Noise damping (LV312) | Class A |
| Unwind force (roll width ≤ 9mm) | 7.5 N/roll (30 m/min) |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Minimum temperature resistance | -25 °C |
| Temperature resistance max | 105 °C |
| Unwind force (roll width > 9mm) | 7.5 N/roll (30 m/min) |
| Abrasion resistance (10mm mandrel, LV312) | Class A |
Adhesion to Values
| Adhesion to steel | 1.8 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 1.8 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
