Additional Info
The Adhesion to Steel data is tested according to ASTM-3330

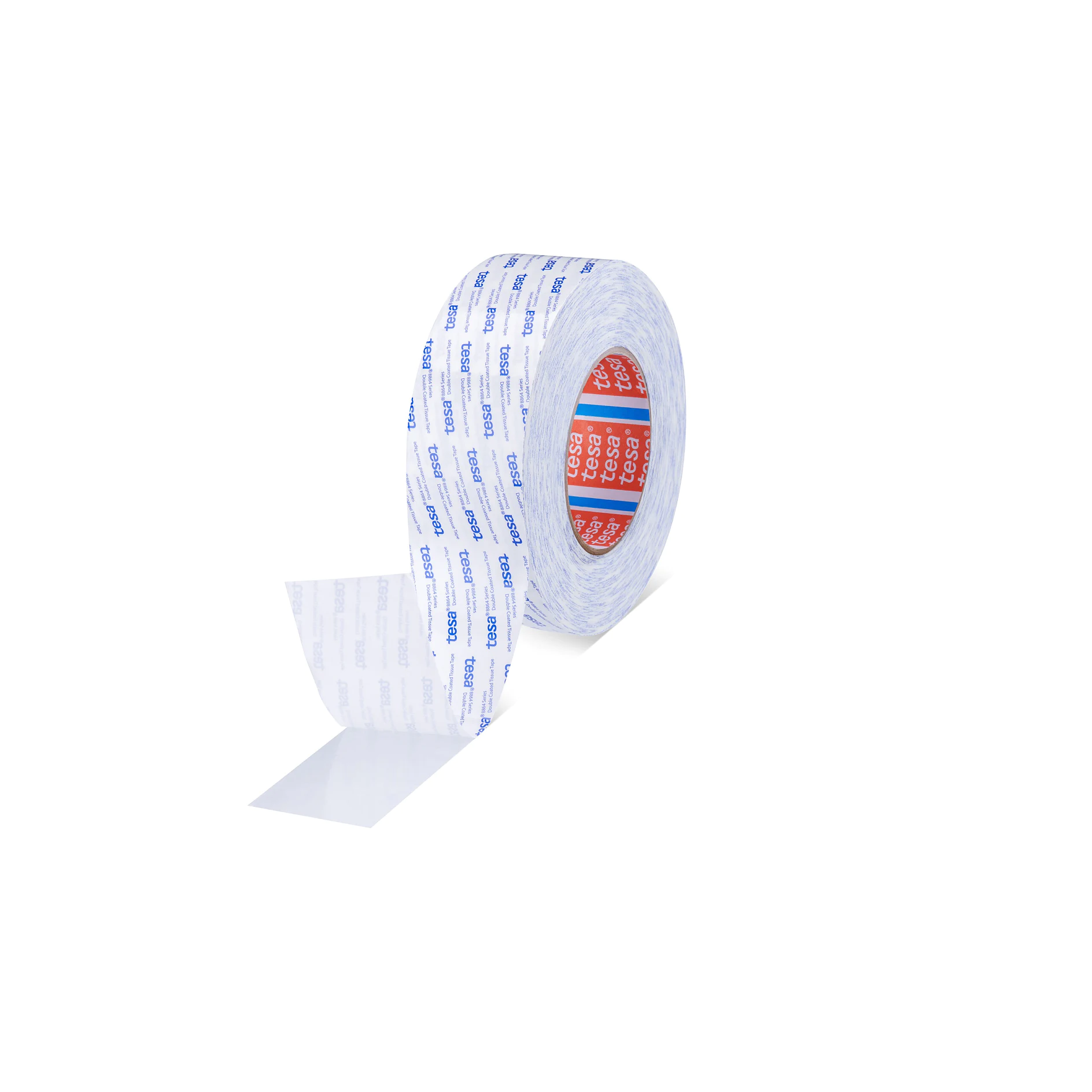

tesa® 88641
100μm double coated tissue tape
Product Features
- Excellent adhesion to a variety of polar surfaces
- Easily removable liner
- Suitable for permanent applications
Product description
tesa® 88641 is a 100μm double coated tissue tape consisting of a tissue backing and a tackified acrylic adhesive.
Product details and specifications
Product Features
- Excellent adhesion to a variety of polar surfaces
- Easily removable liner
- Suitable for permanent applications
Application Fields
- Name plate mounting
- POS mounting
- Foam Lamination
- Envelop sealing
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | non-woven |
| Color | translucent |
| Color of liner | white/blue logo |
| Liner Type | PE-coated paper |
| Thickness of liner | 116 µm |
| Total thickness | 100 µm |
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | non-woven |
| Color | translucent |
| Color of liner | white/blue logo |
| Liner Type | PE-coated paper |
| Thickness of liner | 116 µm |
| Total thickness | 100 µm |
Properties / Performance Values
| Temperature resistance long term | 70 °C |
|---|---|
| Tack | good |
| Temperature resistance short term | 110 °C |
Properties / Performance Values
| Temperature resistance long term | 70 °C |
|---|---|
| Tack | good |
| Temperature resistance short term | 110 °C |
Adhesion to Values
| Adhesion to ABS (initial) | 12.9 N/cm |
|---|---|
| Adhesion to ABS (after 3 days) | 14.8 N/cm |
| Adhesion to Glass (initial) | 12 N/cm |
| Adhesion to Glass (after 3 days) | 13.7 N/cm |
| Adhesion to PC (initial) | 12.9 N/cm |
| Adhesion to PC (after 3 days) | 15 N/cm |
| Adhesion to PE (initial) | 3.1 N/cm |
| Adhesion to PE (after 3 days) | 4 N/cm |
| Adhesion to PET (initial) | 6.9 N/cm |
| Adhesion to PP (initial) | 2 N/cm |
| Adhesion to PP (after 3 days) | 4.9 N/cm |
| Adhesion to PVC (initial) | 5 N/cm |
| Adhesion to Steel (initial) | 9.1 N/cm |
| Adhesion to Steel (after 3 days) | 10.9 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 12.9 N/cm |
|---|---|
| Adhesion to ABS (after 3 days) | 14.8 N/cm |
| Adhesion to Glass (initial) | 12 N/cm |
| Adhesion to Glass (after 3 days) | 13.7 N/cm |
| Adhesion to PC (initial) | 12.9 N/cm |
| Adhesion to PC (after 3 days) | 15 N/cm |
| Adhesion to PE (initial) | 3.1 N/cm |
| Adhesion to PE (after 3 days) | 4 N/cm |
| Adhesion to PET (initial) | 6.9 N/cm |
| Adhesion to PP (initial) | 2 N/cm |
| Adhesion to PP (after 3 days) | 4.9 N/cm |
| Adhesion to PVC (initial) | 5 N/cm |
| Adhesion to Steel (initial) | 9.1 N/cm |
| Adhesion to Steel (after 3 days) | 10.9 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
