tesa® 60827

64 μm single sided black electrically conductive aluminum tape

Product Features

Excellent electrical conductivity in X-Y direction
Suitable for automatic application with tear resistant PET backing
Reliable aging performance

All product features

Product description

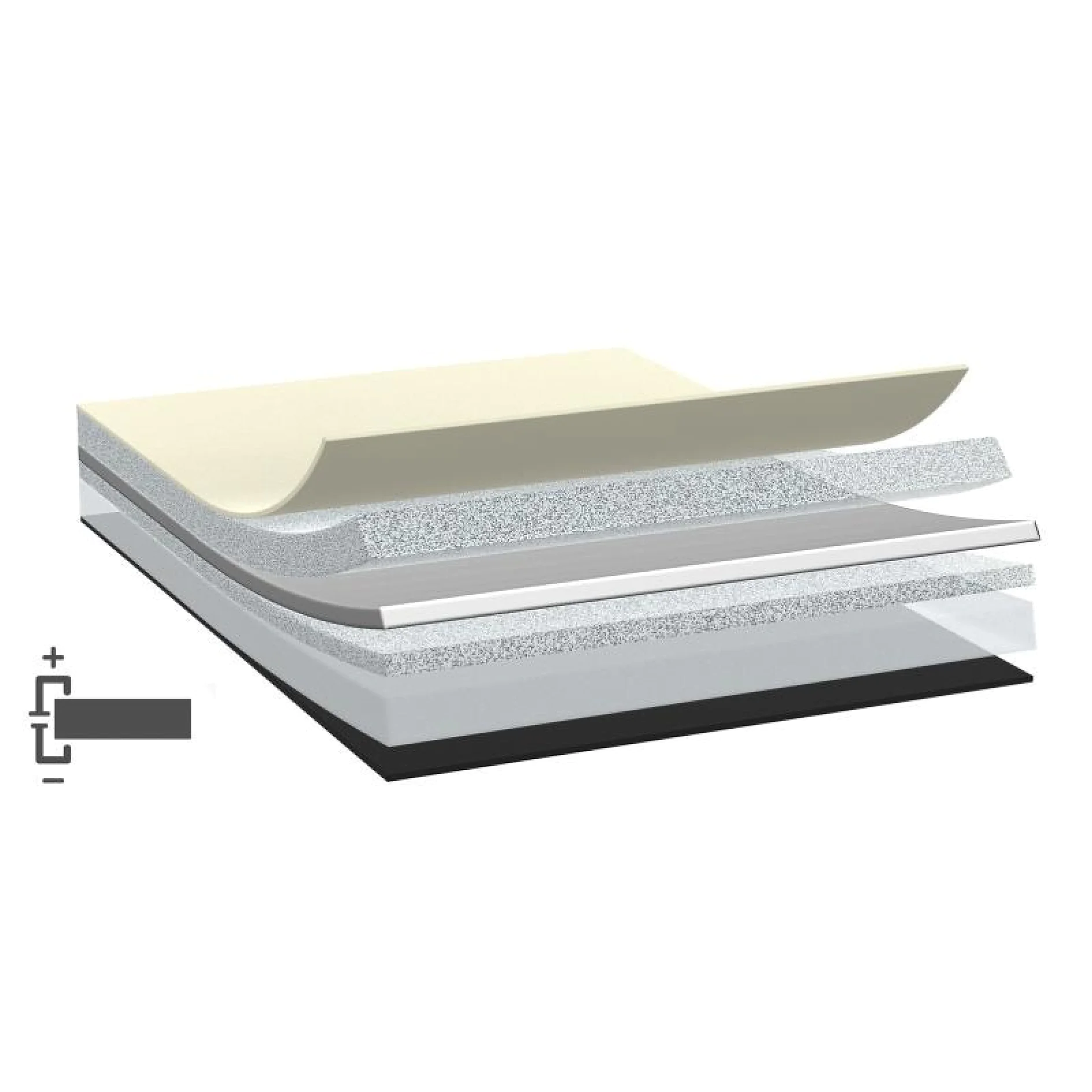

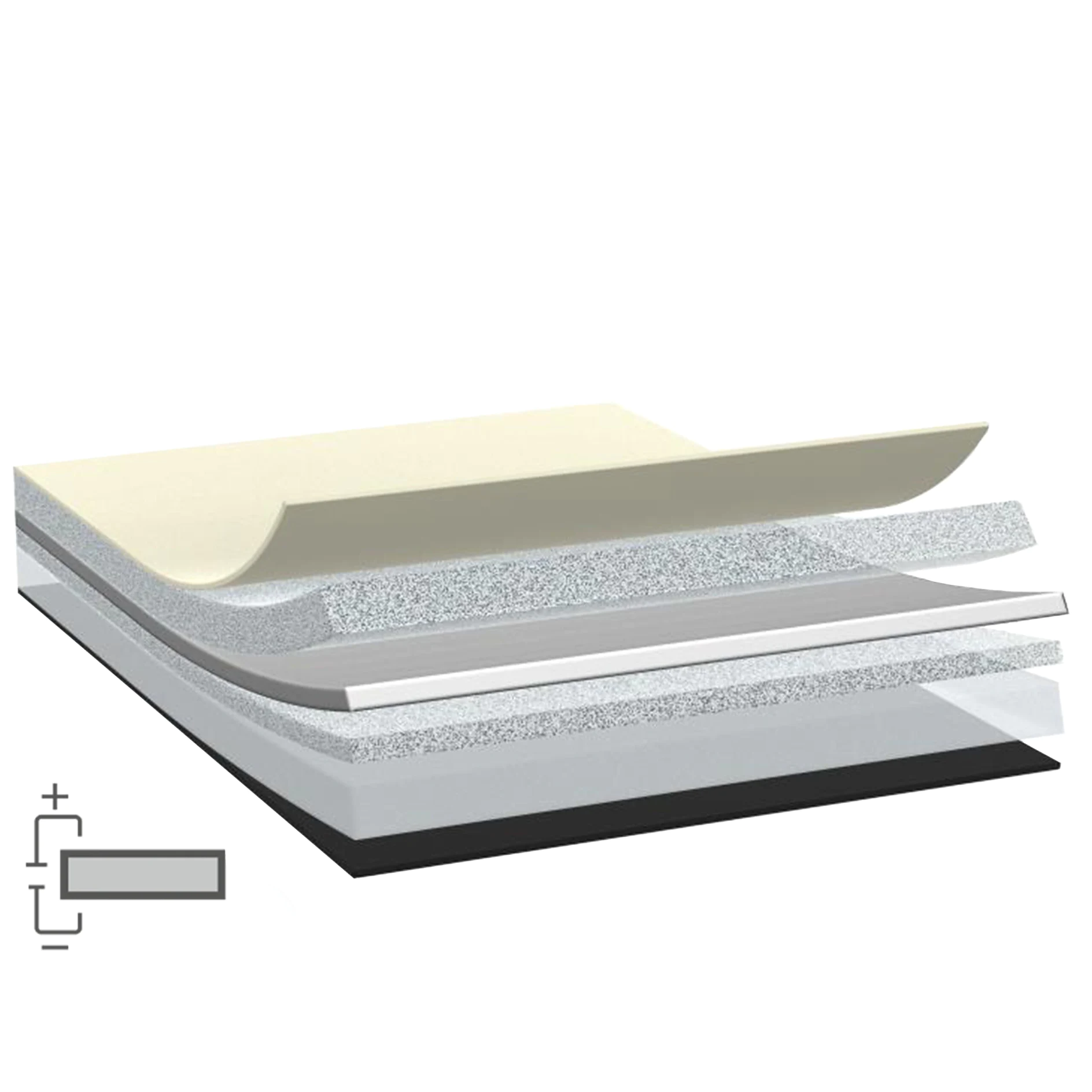

tesa® 60827 is a single sided black electrically conductive aluminum tape. It consists of electrically conductive Al/PET backing and single sided conductive adhesive coating layer. A black PET is laminated on aluminum foil for electrical insulation in z-direction. Designed for EMI shielding and grounding for electronic devices and components.

Product details and specifications

Product Features

Excellent electrical conductivity in X-Y direction
Suitable for automatic application with tear resistant PET backing
Reliable aging performance
Good bonding strength
Excellent black appearance

Application Fields

EMI shielding and grounding for electronics devices and components

Adhesive Type	conductive acrylic
Backing material	aluminium foil
Color	black
Color of liner	white
Liner Type	PE-coated paper
Thickness of liner	130 µm
Total thickness	64 µm

Tensile strength	48 N/cm
Surface resistance x-y-direction (adhesive)	0.3 Ohm / square

Adhesion to Steel (initial)	5.5 N/cm
Adhesion to Steel (after 14 days)	9 N/cm

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 60827_en 58.3 kB

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

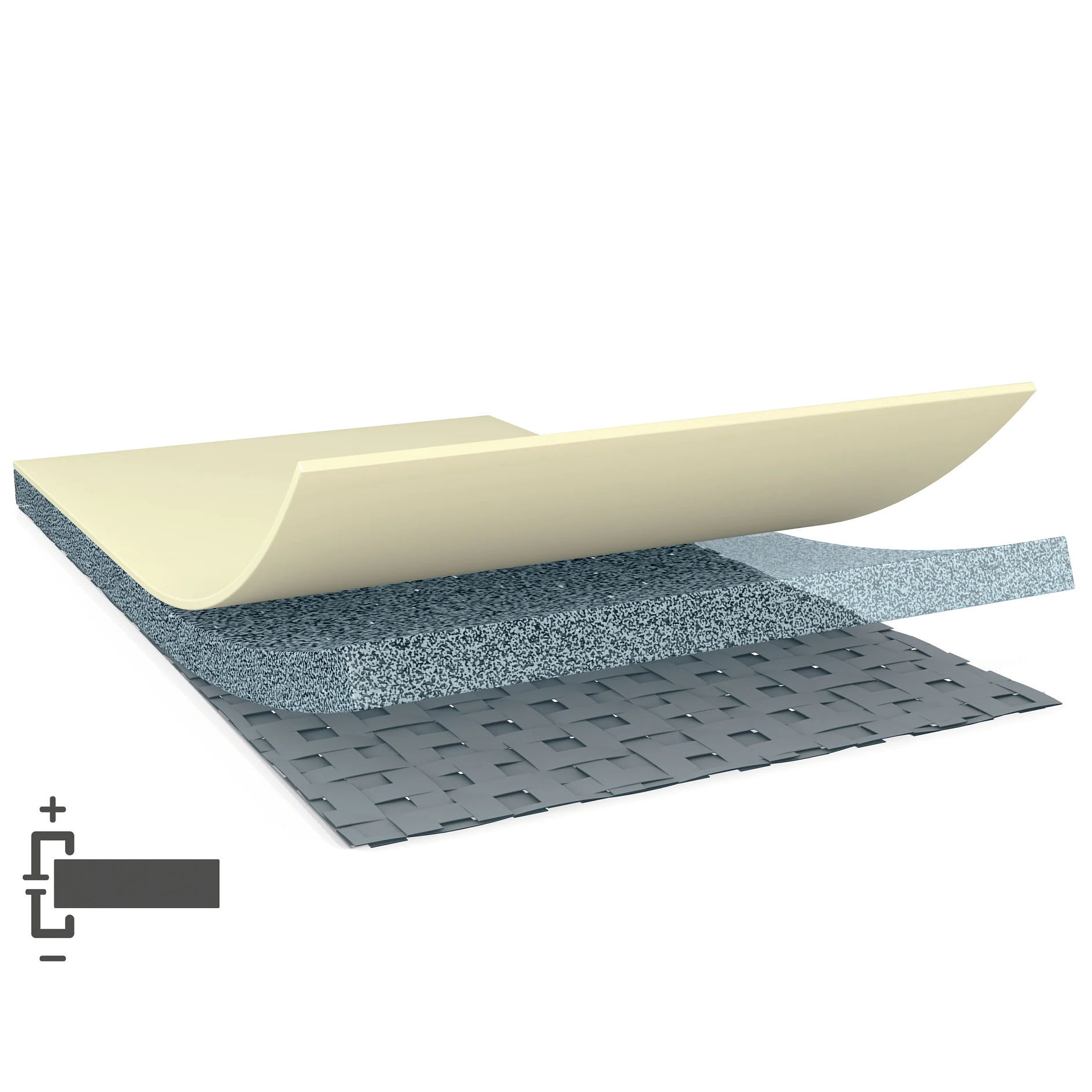

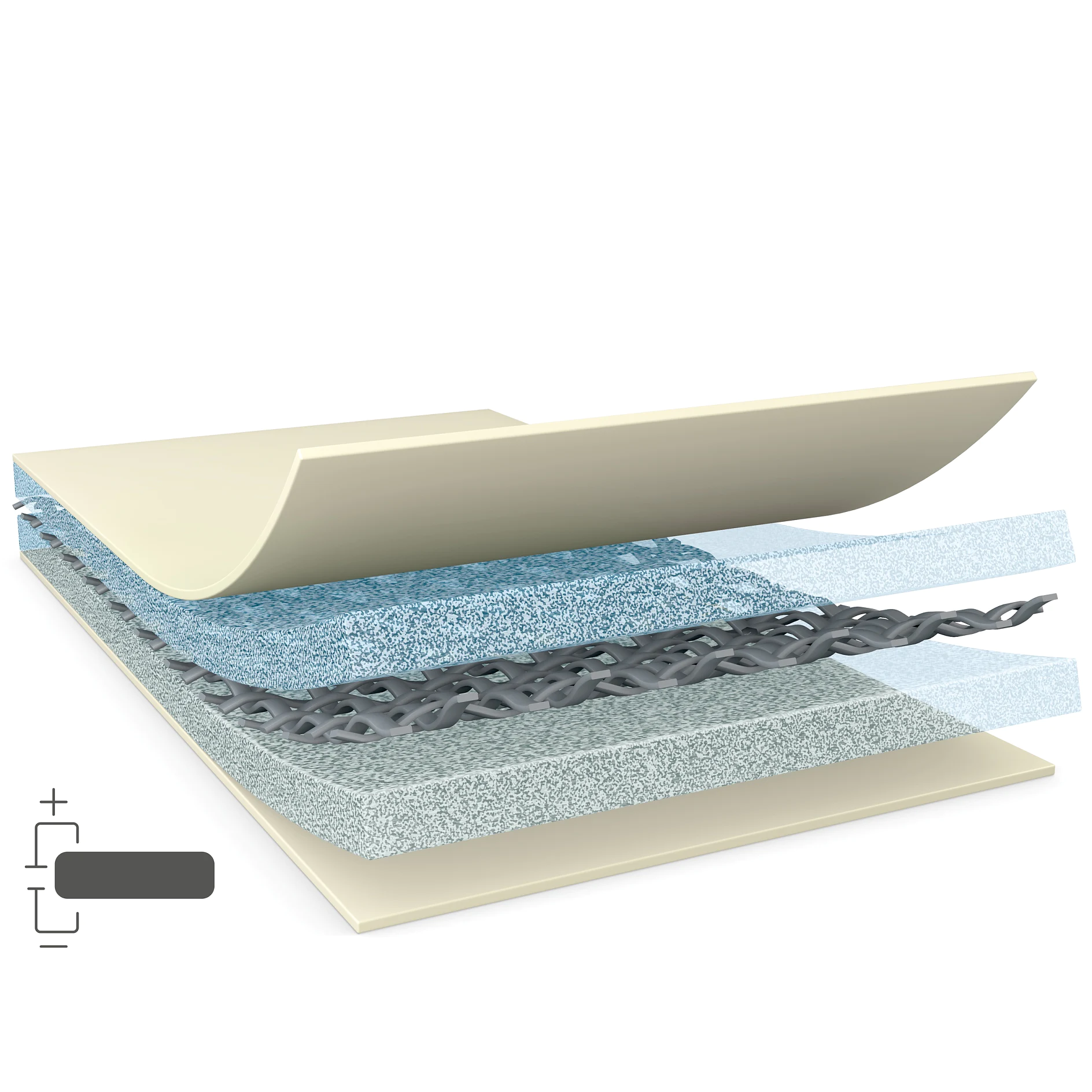

Name of product	tesa® 60827	tesa® 60250	tesa® 60267	tesa® 60260	tesa® 60381	tesa® 60255	tesa® 60362	tesa® 60261	tesa® 60382	tesa® 60372	tesa® 60256
Total thickness	64 µm	30 µm	17	35 µm	50	150 µm	50 µm	25 µm	50 µm	50 µm	200 µm
Adhesive Type	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic
Backing material	aluminium foil	conductive woven	conductive non-woven	conductive non-woven	conductive woven	conductive woven	conductive woven	conductive non-woven	conductive non-woven	conductive non-woven	conductive woven
Adhesion to Steel (initial)	5.5 N/cm	5 N/cm	3.5 N/cm	4 N/cm	8 N/cm	4.5 N/cm		4 N/cm	8 N/cm	4.3 N/cm	4.6 N/cm
Adhesion to Steel (after 14 days)	9 N/cm	7.8 N/cm	5.5 N/cm	4.2 N/cm	10 N/cm	10.5 N/cm	8 N/cm	5.6 N/cm	10 N/cm	5.6 N/cm	10.6 N/cm
Contact resistance z-direction (initial)		0.05 Ohm / square inch	0.02 Ohm / square inch	0.02 Ohm / square inch	0.06 Ohm / square inch	0.05 Ohm / square inch	0.01 Ohm / square inch	0.02 Ohm / square inch	0.06 Ohm / square inch	0.01 Ohm / square inch	0.05 Ohm / square inch
Surface resistance x-y-direction			0.2 Ohm / square	0.2 Ohm / square	0.3 Ohm / square	0.2 Ohm / square	0.1 Ohm / square	0.2 Ohm / square	0.3 Ohm / square	0.1 Ohm / square	0.2 Ohm / square
