tesa® 60372

50µm double sided black electrically conductive non-woven tape

Product Features

Enhanced electrical conductivity in XYZ-direction
Highly reliable and stable conductivity even after damp heat conditions
Good bonding strength

All product features

Product description

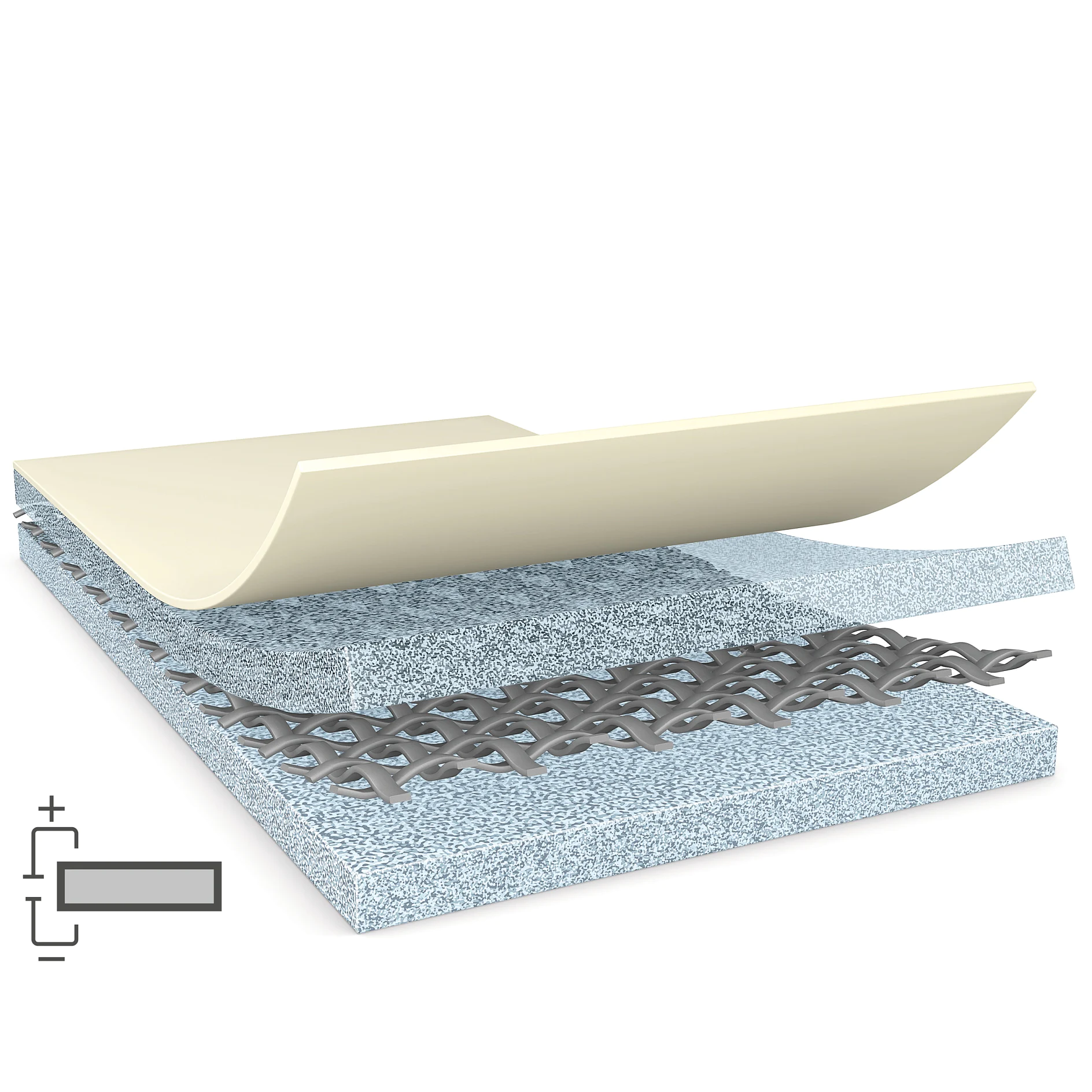

tesa® 60372 is a black double sided electrically conductive self adhesive tape. It consists of an electrically conductive non-woven backing and an electrically conductive acrylic adhesive.

Black color

Product details and specifications

Product Features

Enhanced electrical conductivity in XYZ-direction
Highly reliable and stable conductivity even after damp heat conditions
Good bonding strength
Great conformability and adjustment to uneven surfaces
Excellent grounding performance at small bonding area

Application Fields

EMC applications
Main board, FPC grounding
Antenna grounding
Electrostatic discharge applications

Adhesive Type	conductive acrylic
Backing material	conductive non-woven
Color	black
Color of liner	transparent
Liner Type	PET
Thickness of liner	50 µm
Total thickness	50 µm

Release of liner	easy
Contact resistance z-direction (initial)	0.01 Ohm / square inch
Surface resistance x-y-direction	0.1 Ohm / square
Temperature resistance short term	200 °C
Static shear resistance at 40°C	very good

Adhesion to Steel (initial)	4.3 N/cm
Adhesion to Steel (after 14 days)	5.6 N/cm

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 60372_en 57.7 kB

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Name of product	tesa® 60372	tesa® 60250	tesa® 60267	tesa® 60260	tesa® 60381	tesa® 60255	tesa® 60362	tesa® 60261	tesa® 60382	tesa® 60256	tesa® 60264
Total thickness	50 µm	30 µm	17	35 µm	50	150 µm	50 µm	25 µm	50 µm	200 µm	17 µm
Adhesive Type	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic
Backing material	conductive non-woven	conductive woven	conductive non-woven	conductive non-woven	conductive woven	conductive woven	conductive woven	conductive non-woven	conductive non-woven	conductive woven	conductive non-woven
Adhesion to Steel (initial)	4.3 N/cm	5 N/cm	3.5 N/cm	4 N/cm	8 N/cm	4.5 N/cm		4 N/cm	8 N/cm	4.6 N/cm	3.5 N/cm
Adhesion to Steel (after 14 days)	5.6 N/cm	7.8 N/cm	5.5 N/cm	4.2 N/cm	10 N/cm	10.5 N/cm	8 N/cm	5.6 N/cm	10 N/cm	10.6 N/cm	4.5 N/cm
Surface resistance x-y-direction	0.1 Ohm / square		0.2 Ohm / square	0.2 Ohm / square	0.3 Ohm / square	0.2 Ohm / square	0.1 Ohm / square	0.2 Ohm / square	0.3 Ohm / square	0.2 Ohm / square	0.2 Ohm / square
Contact resistance z-direction (initial)	0.01 Ohm / square inch	0.05 Ohm / square inch	0.02 Ohm / square inch	0.02 Ohm / square inch	0.06 Ohm / square inch	0.05 Ohm / square inch	0.01 Ohm / square inch	0.02 Ohm / square inch	0.06 Ohm / square inch	0.05 Ohm / square inch	0.02 Ohm / square inch

Last updated on Apr 16, 2024
