*Easy release for 50µm, tight release for 23µm
tesa® 60362
tesa® 60362 50 μm double sided high performance electrically conductive fabric tape
Product Features
- Improved and stable electrical conductivity
- Very strong bonding strength with high peel adhesion
- Excellent electrical conductivity in XYZ-direction even after damp heat conditions
Product description
tesa® 60362 is high performance electrically conductive fabric tape. It consists of electrically conductive fabric backing and specially designed conductive adhesive coating layer on both sides. Designed for grounding and shielding which needs higher electrical conductivity but also higher bonding performance such as FPC, PCB, display, antenna and other components applications.
Product details and specifications
Product Features
- Improved and stable electrical conductivity
- Very strong bonding strength with high peel adhesion
- Excellent electrical conductivity in XYZ-direction even after damp heat conditions
- Excellent grounding performance at small bonding area

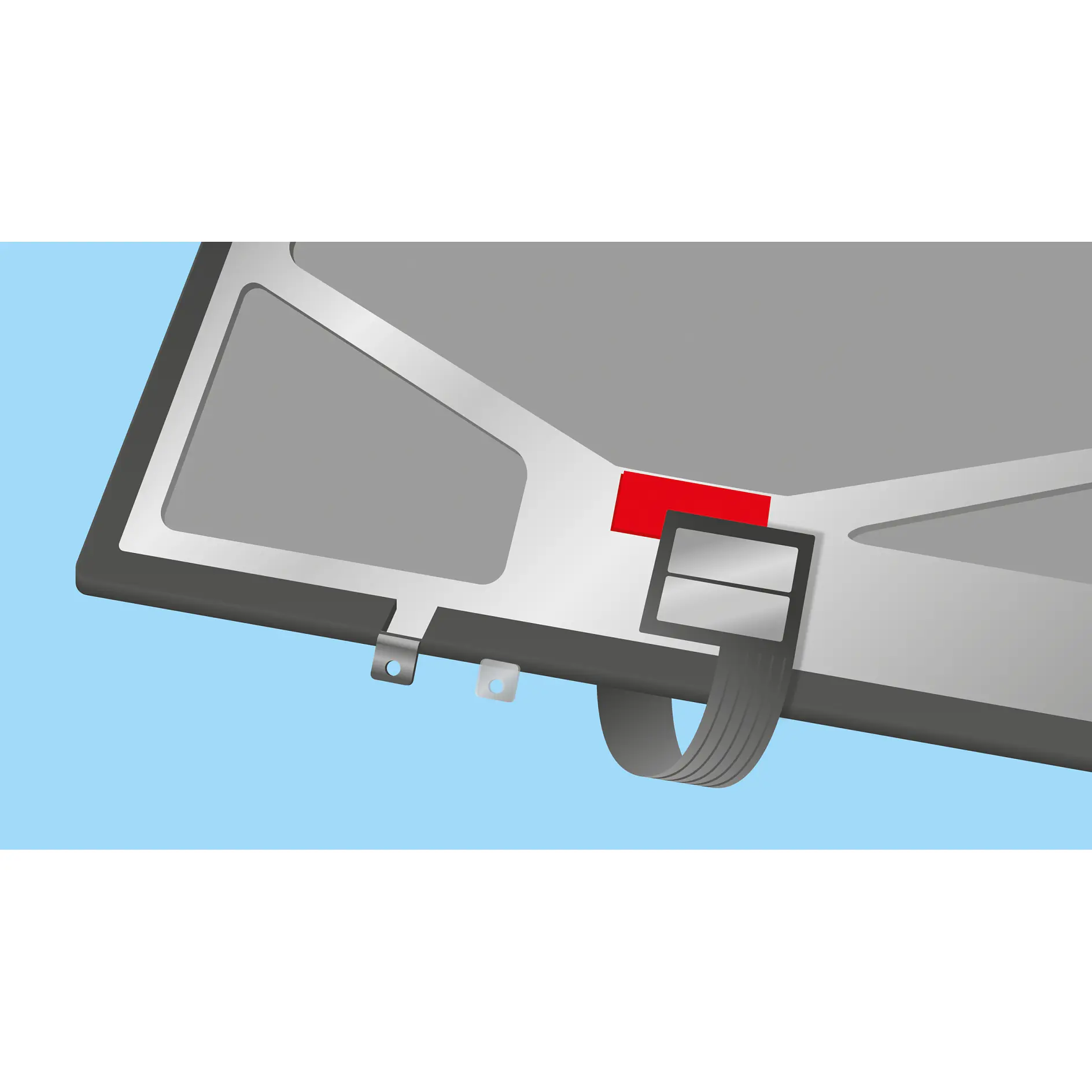

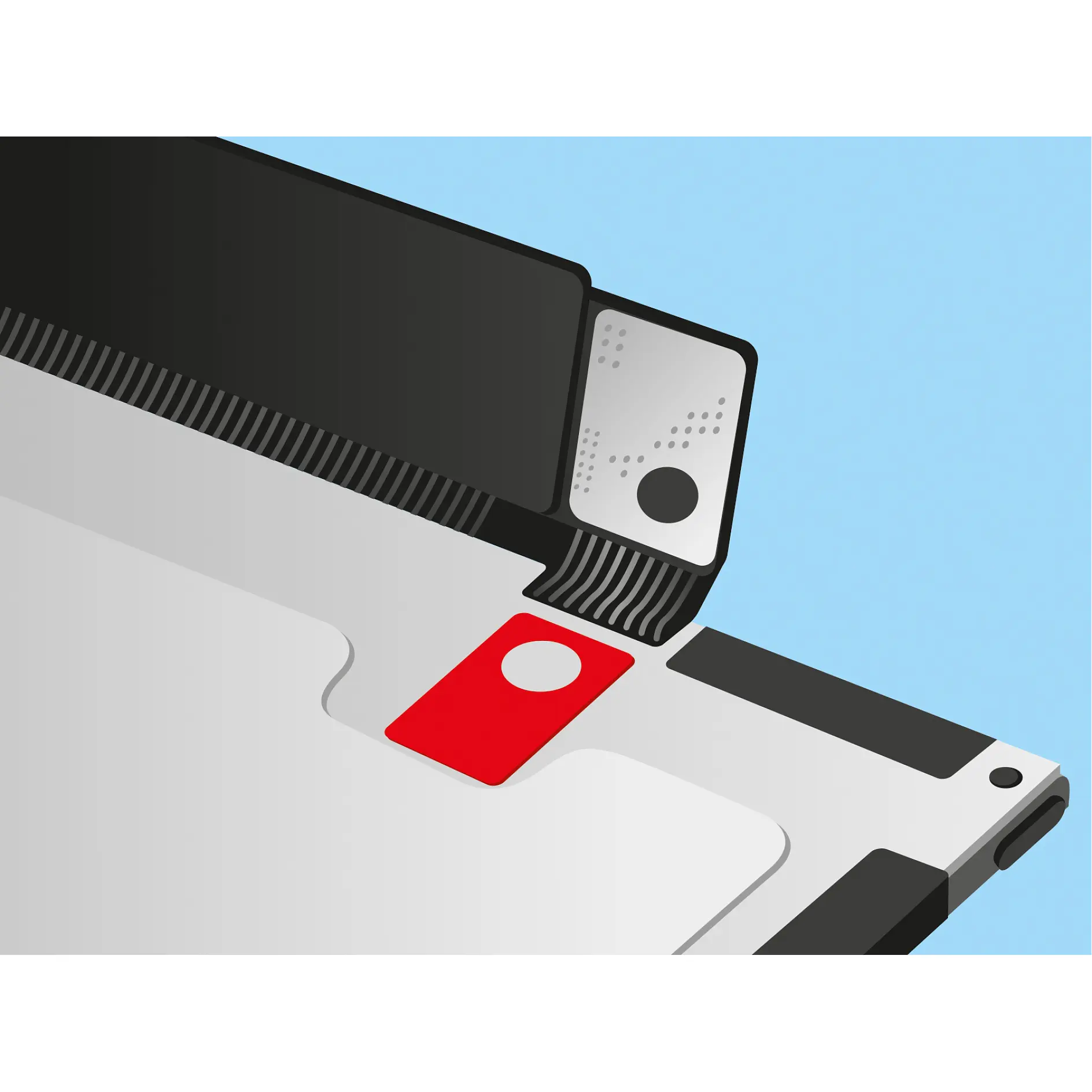

Application Fields
- EMC applications
- FPC, PCB main board application for grounding
- FPC for Display
- Antenna and other components in electronics device

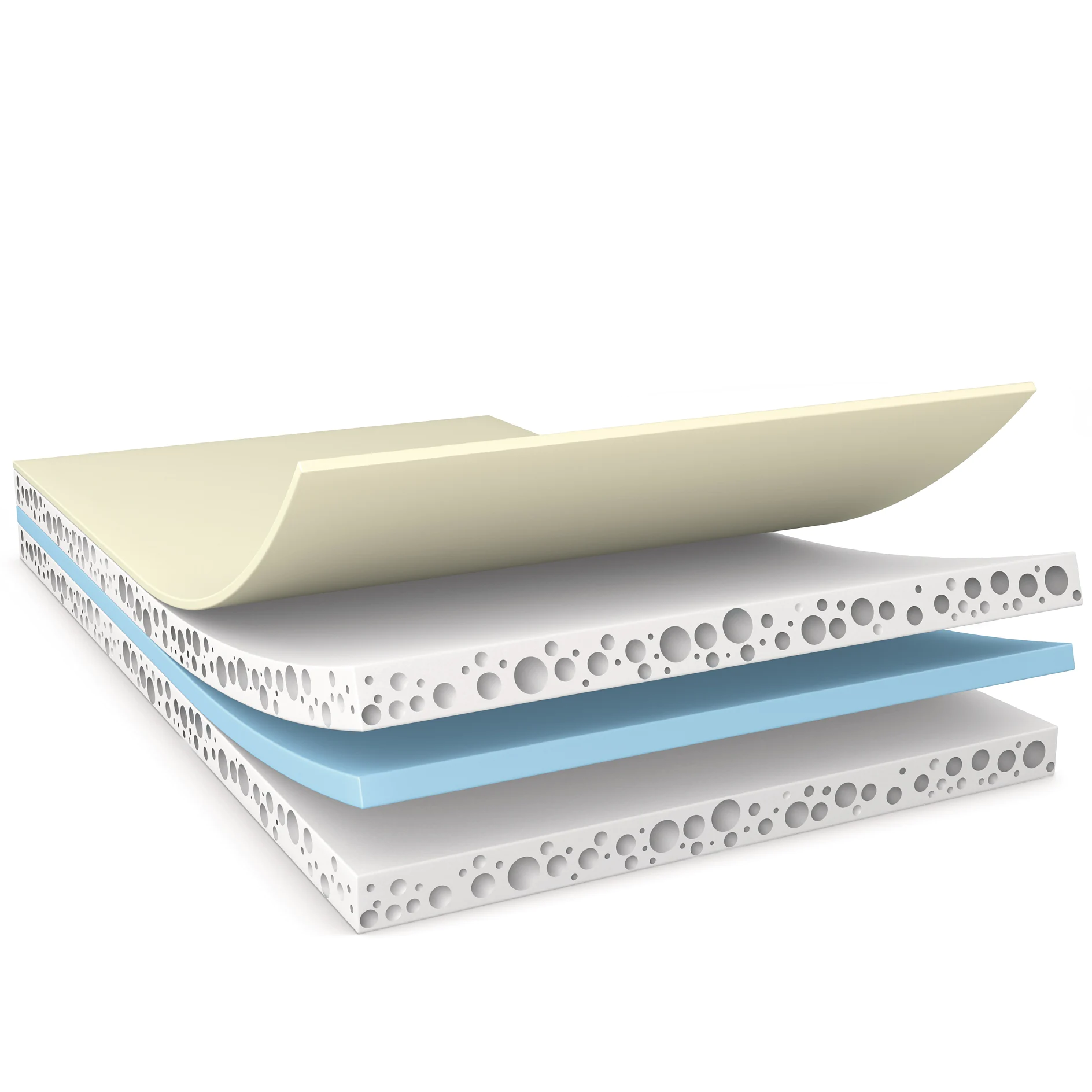

Product Construction
| Adhesive Type | conductive acrylic |
|---|---|
| Backing material | conductive woven |
| Color | gray |
| Color of liner | transparent |
| Liner Type | PET film |
| Thickness of liner | 50 µm |
| Total thickness | 50 µm |
Product Construction
| Adhesive Type | conductive acrylic |
|---|---|
| Backing material | conductive woven |
| Color | gray |
| Color of liner | transparent |
| Liner Type | PET film |
| Thickness of liner | 50 µm |
| Total thickness | 50 µm |
Properties / Performance Values
| Release of liner | easy |
|---|---|
| Surface resistance x-y-direction (adhesive) | 0.1 Ohm / square |
| Contact resistance z-direction (initial) | 0.01 Ohm / square inch |
Properties / Performance Values
| Release of liner | easy |
|---|---|
| Surface resistance x-y-direction (adhesive) | 0.1 Ohm / square |
| Contact resistance z-direction (initial) | 0.01 Ohm / square inch |
Adhesion to Values
| Adhesion to Aluminium (initial) | 8 N/cm |
|---|---|
| Adhesion to Aluminium (after 14 days) | 9 N/cm |
| Adhesion to Copper (initial) | 8 N/cm |
| Adhesion to Copper (after 14 days) | 9 N/cm |
| Adhesion to PI (initial) | 8 N/cm |
| Adhesion to PI (after 14 days) | 9 N/cm |
| Adhesion to Steel (after 14 days) | 8 N/cm |
Adhesion to Values
| Adhesion to Aluminium (initial) | 8 N/cm |
|---|---|
| Adhesion to Aluminium (after 14 days) | 9 N/cm |
| Adhesion to Copper (initial) | 8 N/cm |
| Adhesion to Copper (after 14 days) | 9 N/cm |
| Adhesion to PI (initial) | 8 N/cm |
| Adhesion to PI (after 14 days) | 9 N/cm |
| Adhesion to Steel (after 14 days) | 8 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
