tesa® 60260
35µm double sided grey electrically conductive non-woven tape
Product Features
- Excellent electrical conductivity in XYZ-direction even at high temperatures and humidity
- High adhesion level even at harsh environmental conditions
- Excellent conformability and adjustment to uneven surfaces
Product description
tesa® 60260 is an ultra-thin grey double sided electrically conductive self adhesive tape. It consists of an electrically conductive non-woven backing and an electrically conductive acrylic adhesive.
Product details and specifications
Product Features
- Excellent electrical conductivity in XYZ-direction even at high temperatures and humidity
- High adhesion level even at harsh environmental conditions
- Excellent conformability and adjustment to uneven surfaces
- Very good die-cuttability
Application Fields
- EMC applications, such as grounding
- Electrostatic discharge applications

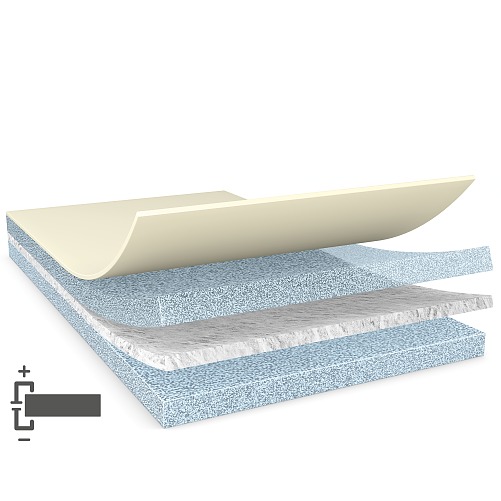

Product Construction
| Adhesive Type | conductive acrylic |
|---|---|
| Backing material | conductive non-woven |
| Color | gray |
| Color of liner | transparent |
| Liner Type | PET film |
| Thickness of liner | 50 µm |
| Total thickness | 35 µm |
Product Construction
| Adhesive Type | conductive acrylic |
|---|---|
| Backing material | conductive non-woven |
| Color | gray |
| Color of liner | transparent |
| Liner Type | PET film |
| Thickness of liner | 50 µm |
| Total thickness | 35 µm |
Properties / Performance Values
| Contact resistance z-direction (initial) | 0.02 Ohm / square inch |
|---|---|
| Surface resistance x-y-direction | 0.2 Ohm / square |
| Release of liner | easy |
| Static shear resistance at 40°C | very good |
| Temperature resistance short term | 200 °C |
Properties / Performance Values
| Contact resistance z-direction (initial) | 0.02 Ohm / square inch |
|---|---|
| Surface resistance x-y-direction | 0.2 Ohm / square |
| Release of liner | easy |
| Static shear resistance at 40°C | very good |
| Temperature resistance short term | 200 °C |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 4.2 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel (after 14 days) | 4.2 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
