tesa® 54651 Low VOC

Precision die cuts for permanent automotive hole covering applications with excellent conformability

Product Features

Superb conformability to complex geometries
Secure adhesion on almost any substrates
Low VOC according to VDA 278 analysis

All product features

Product description

tesa® 54651 combines a flexible cloth layer with a powerful natural rubber adhesive. This product is optimized for the automotive industry to securely cover holes that require good sealing properties in combination with excellent conformability.

Product details and specifications

Product Features

Superb conformability to complex geometries
Secure adhesion on almost any substrates
Low VOC according to VDA 278 analysis
High temperature resistance up to 130°C
Good mechanical properties with respect to abrasion, puncture, and ageing-resistance
Repositionable

Application Fields

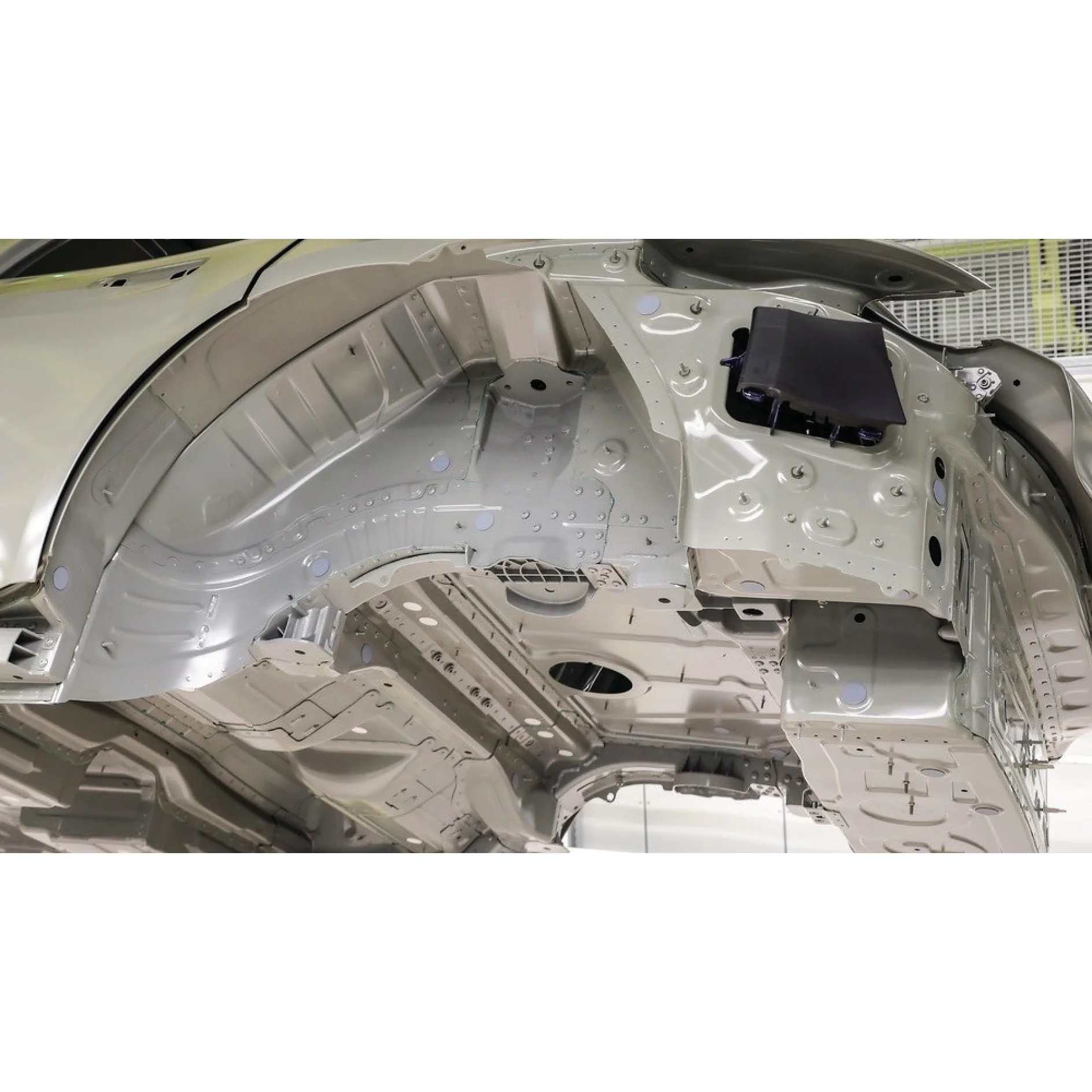

tesa® 54651 is especially suitable at the automotive assembly line for interior and exterior hole covering on all car body areas, e.g. pillars, rocker, front/rear floor.

To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.

Adhesive Type	natural rubber
Backing material	Acrylic-coated cloth
Color	black
Liner Type	glassine
Total thickness	310 µm

Adhesive Type	natural rubber
Backing material	Acrylic-coated cloth
Color	black
Liner Type	glassine
Total thickness	310 µm

Abrasion resistance	very good
Temperature resistance (30 min)	130 °C
Puncture resistance	300 N
Chemical Resistance	medium

Abrasion resistance	very good
Temperature resistance (30 min)	130 °C
Puncture resistance	300 N
Chemical Resistance	medium

Adhesion to Steel	3.3 N/cm

Adhesion to Steel	3.3 N/cm

tesa® 54651 is available upon request in customer specific dimensions and can be delivered according to customer requirements and applications in either roll or sheet form.

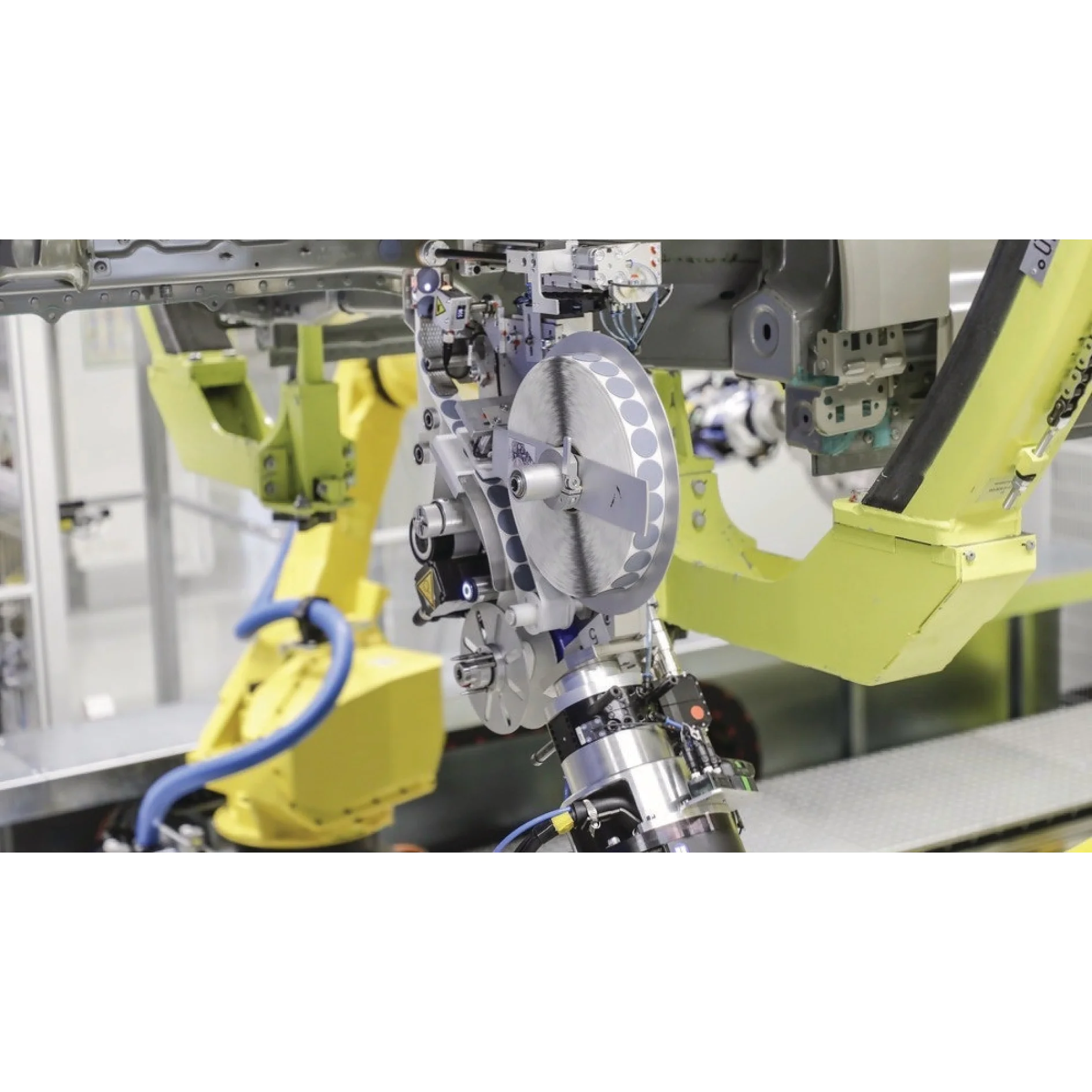

tesa’s automation and application solution department provides customized equipment and self-designed application tools to enhance productivity.

According to VDA 278 analysis, tesa® 54651 does not contain any single substances restricted by the drafted GB regulations (China) as well as the indoor concentration guideline by JAMA (Japanese Automotive Manufacturers Association and the Japanese Ministry of Health, Labor and Welfare Ministry (MHLW).

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Safety data sheet_tesa® 04651_en_en-US_v54 132.3 kB Product information_tesa® 54651_en 106.9 kB

Contact us

Thank you for your message

We'll get back to you as soon as possible.

Best regards

Your tesa Team

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® 54651 Low VOC	tesa® 54678	tesa® 54657 Low VOC	tesa® 54657	tesa® 54657 Low VOC	tesa® 6041 EfficienSeal	tesa® 54338	tesa® 54334 PV1 NoiseGuard	tesa® 54334 PV0 NoiseGuard	tesa® 54715 Noise Blocker Standard	tesa® 54335 PV0 PunctureGuard
Total thickness	310 µm	250 µm	290 µm	290 µm	290 µm		95 µm	570 µm	760 µm	1,140 µm	990 µm
Adhesive Type	natural rubber	natural rubber	thermosetting natural rubber	thermosetting natural rubber	thermosetting natural rubber		modified acrylic	modified acrylic	modified acrylic	modified acrylic	modified acrylic
Backing material	Acrylic-coated cloth	PE extruded cloth	Acrylic-coated cloth	Acrylic-coated cloth	Acrylic-coated cloth		PET film	Post consumer recycled PET	Post consumer recycled PET	polyolefin	PET
Color	black		gray	gray	gray	colourless	transparent	black	black	gray	gray
