Additional Info
- tesa® 06041 EfficienSeal can be combined with all common robot models. To implementation of the tool into the manufacturing line the customer provides an integrator.
tesa® 6041 EfficienSeal
Single Stamp End Effector for Robotic Application
Product Features
- Tool Weight: 24 kg
- Tool Size: 625x530x280 mm
- Max. Roll Diameter: 400mm
Product description
tesa® EfficienSeal 6041 is an automation solution for automotive Hole Covering applications.
The end effector can be equipped with different tesa® sealing patches and can be refilled easily by inserting a new roll. By using high quality components, it allows for high application speed and precision. In addition, a pneumatic quick release system enables tool change within seconds, for example for refilling or changing to different sealing patches. By using different roll and patch sizes, one roll can easily cover more than 2,000 holes which drastically improves process efficiency by reducing changeover time. For highest process security multiple sensors monitor all relevant process parameters.

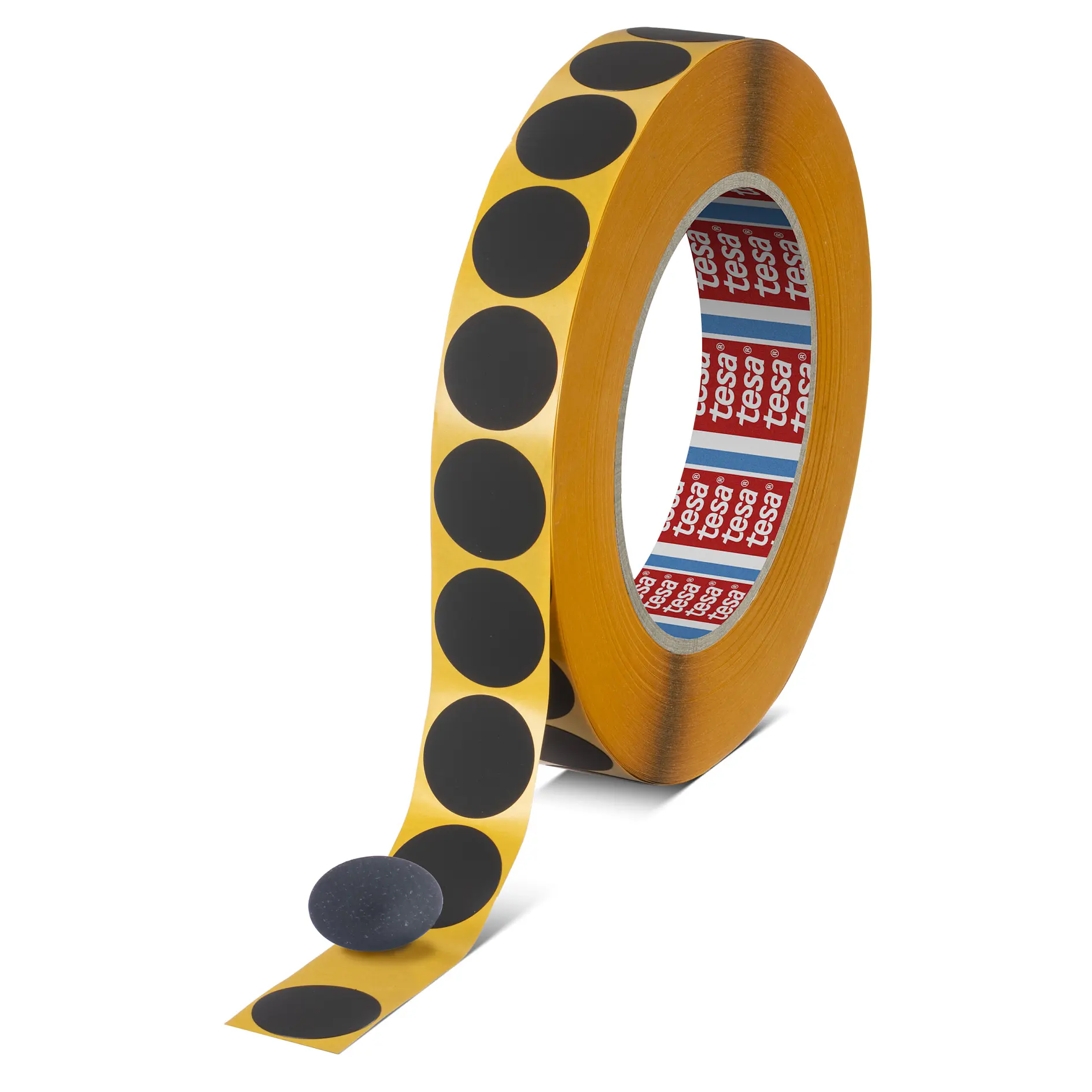

The end effector can be equipped with different tesa Hole Covering patches, e.g.:
- tesa® 54332 Fireguard for heat shielding or fire barrier applications e.g. battery
- tesa® 54335 PunctureGuard for demanding exterior applications, e.g. underbody
- tesa® 54336 flexible black sealing patch for demanding interior applications e.g. passenger comparment floor
- tesa® 54348 thin conformable patch for less demanding interior applications e.g. pillars
- tesa® 54349 tough covering patch for less demanding exterior or interior applications, e.g. rocker panel
Product details and specifications
Product Features
- Tool Weight: 24 kg
- Tool Size: 625x530x280 mm
- Max. Roll Diameter: 400mm
- Die Cuts Per Roll: 1.500 - 3.500
- Max. Hole Diameter: 50mm
- Process Time Per Hole: 2,5 sec
- Tool Change Time: 5-10 sec
- Patch Application Pressure: 5 N/cm²
- Material Change Time: 2-10 min
Application Fields
- Demanding underbody Hole Covering applications in automotive production
- High volume of pads in challenging cycle times with a limited number of different diameters
- Quick release system allows the application of different diameters or materials of patches
- tesa® EfficienSeal 6041 is used on an industrial robot within a full automized factory cell
Product Construction
| Color | colourless |
|---|
Product Construction
| Color | colourless |
|---|
Properties / Performance Values
| Roll width max | 400 mm |
|---|---|
| Max. core diameter | 6 |
| Serrated blade | no |
| Material | Aluminium |
| Max roll length | 500 m |
Properties / Performance Values
| Roll width max | 400 mm |
|---|---|
| Max. core diameter | 6 |
| Serrated blade | no |
| Material | Aluminium |
| Max roll length | 500 m |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
