Product Construction
| Backing material | PET |
| Color | black |
| Total thickness | 450 µm |
| Type of adhesive | type: modified acrylic |
| Type of liner | type: PE-coated paper |
tesa® 54336 Interior Sealing Patch
Interior Sealing Patch for hole covering applications
Product Features
- This product is optimized for the automotive industry to cover interior holes that require excellent conformability to complex geometries, good paint anchorage and perfect sealing even under harsh conditions.
Product description

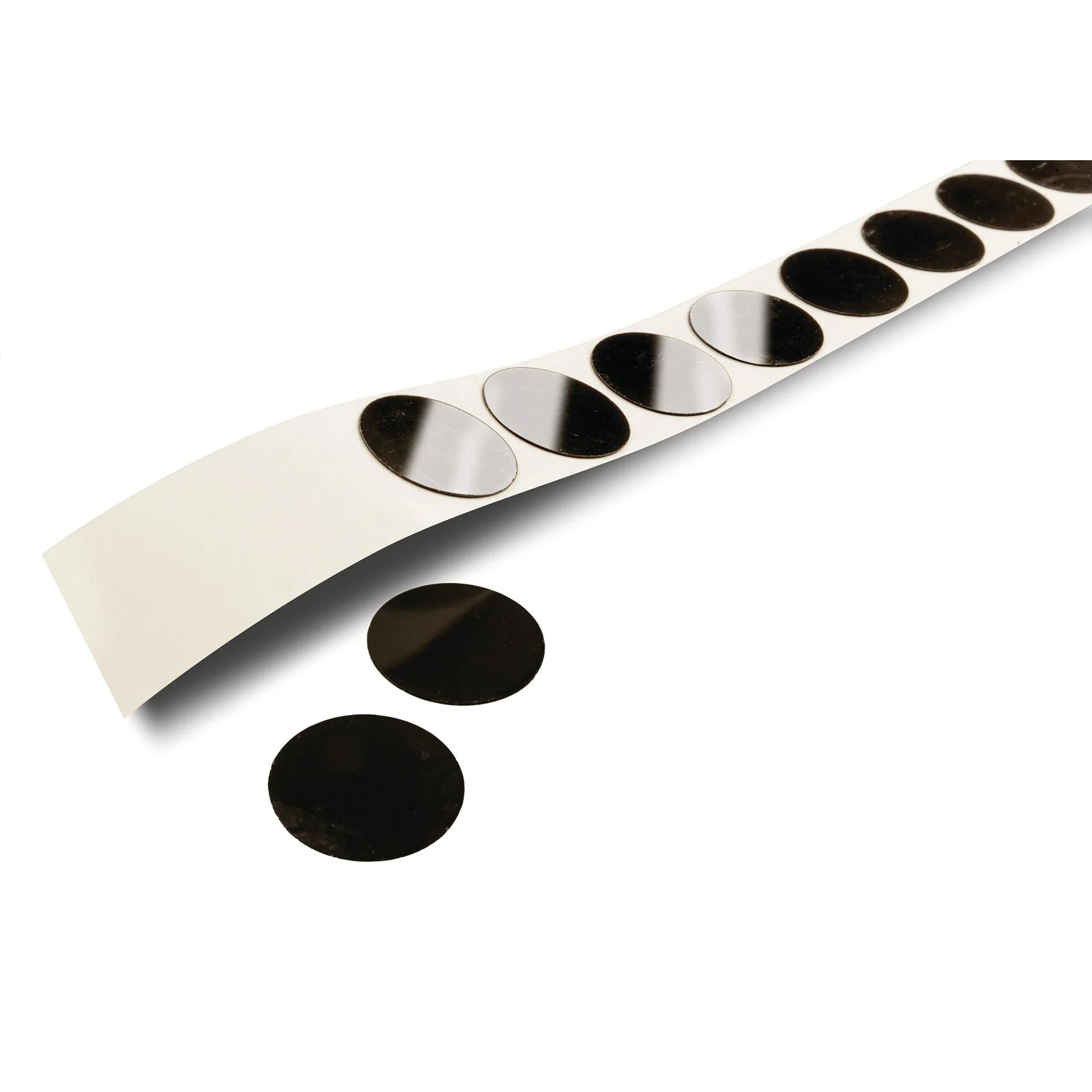

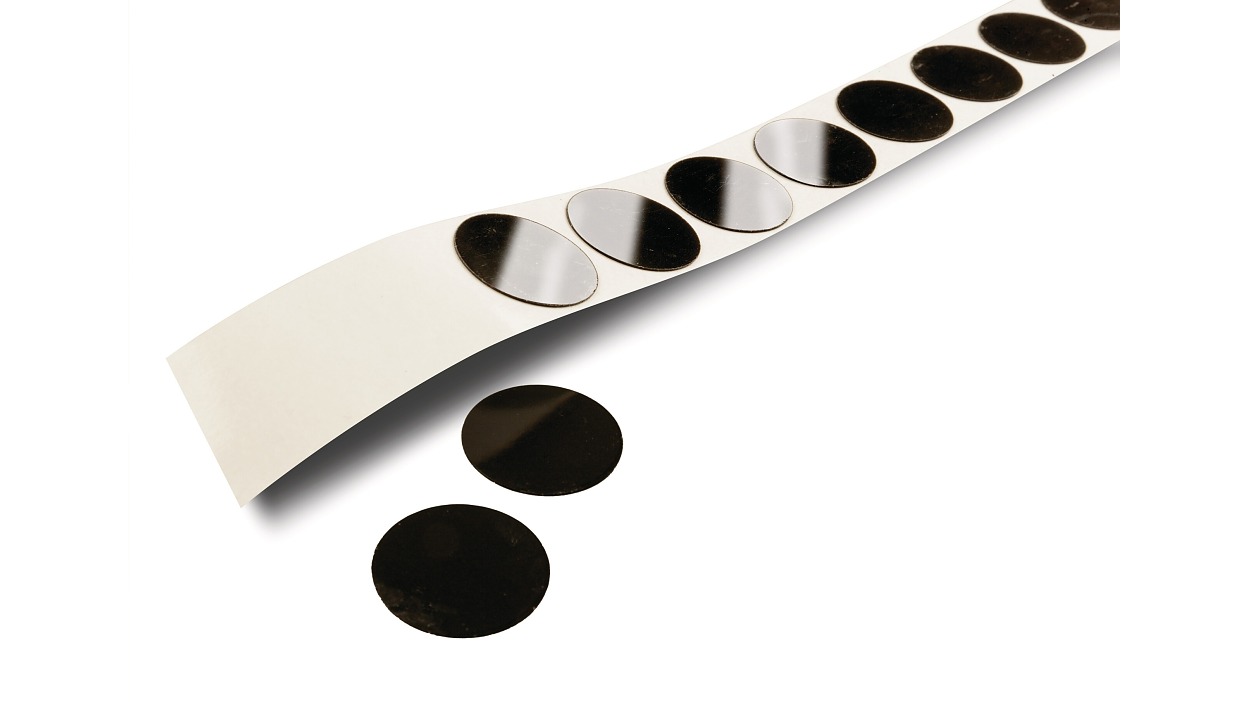

tesa® 54336 Interior Sealing Patch combines a flexible PET layer with a thick acrylic adhesive sealer.
Product details and specifications
Product Features
- This product is optimized for the automotive industry to cover interior holes that require excellent conformability to complex geometries, good paint anchorage and perfect sealing even under harsh conditions.
Application Fields
tesa® 54336 Interior Sealing Patch can be applied before and after paint shop along the automotive production process, e.g. complex geometries and engine compartments.
Main product features:
Main product features:
- Excellent conformability to complex geometries
- Reliable corrosion protection and sealing against water ingress
- Good puncture resistance
- Temperature resistance (dimensional stability) up to 190 °C
- Good UBC (PVC) compatibility and paint anchorage
- Secure adhesion to steel, aluminum, plastics, painted substrates, and reinforced plastic substrates in automotive lightweight constructions
Product Construction
| Backing material | PET |
| Color | black |
| Total thickness | 450 µm |
| Type of adhesive | type: modified acrylic |
| Type of liner | type: PE-coated paper |
Properties / Performance Values
| Puncture resistance | 440 N |
Properties / Performance Values
| Puncture resistance | 440 N |
Additional Info
According to VDA 278 analysis, tesa® 54336 does not contain any single substances restricted by the drafted GB regulations (China) as well as the indoor concentration guideline by JAMA (Japanese Automotive Manufacturers Association and the Japanese Ministry of Health, Labor and Welfare Ministry (MHLW)).
Puncture resistance acc. tesa® J0PM0232, measured from backing side 24 h after application at room temperature:
Test climate = 23 ± 1 °C/ 50 ± 5 % relative humidity
Substrate = e-coated panel, 0.7 mm thickness and hole diameter of 30 mm
Patch diameter = 50 mm
Pin diameter = 20 mm
Pressurization = 4 kg roll, 5 x back and forth
Test speed = 300 mm/min
tesa® 54336 is available upon request in customer specific patch dimensions can be delivered according to customer requirements and applications in either roll or sheet form.
We support your individual application process with tesa designed dispensing solutions to ensure a quick and reliable sealing of holes in the car body.
By fitting your robot with the best end arm tooling we enable a smart automation concept in your production site. Ask for our tesa® EfficienSeal dispensing tool to ensure a highly efficient and automated patch application.
Puncture resistance acc. tesa® J0PM0232, measured from backing side 24 h after application at room temperature:
Test climate = 23 ± 1 °C/ 50 ± 5 % relative humidity
Substrate = e-coated panel, 0.7 mm thickness and hole diameter of 30 mm
Patch diameter = 50 mm
Pin diameter = 20 mm
Pressurization = 4 kg roll, 5 x back and forth
Test speed = 300 mm/min
tesa® 54336 is available upon request in customer specific patch dimensions can be delivered according to customer requirements and applications in either roll or sheet form.
We support your individual application process with tesa designed dispensing solutions to ensure a quick and reliable sealing of holes in the car body.
By fitting your robot with the best end arm tooling we enable a smart automation concept in your production site. Ask for our tesa® EfficienSeal dispensing tool to ensure a highly efficient and automated patch application.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
