Additional Info
For spools, it is recommended to use tesa® dispensers to achieve optimal results.

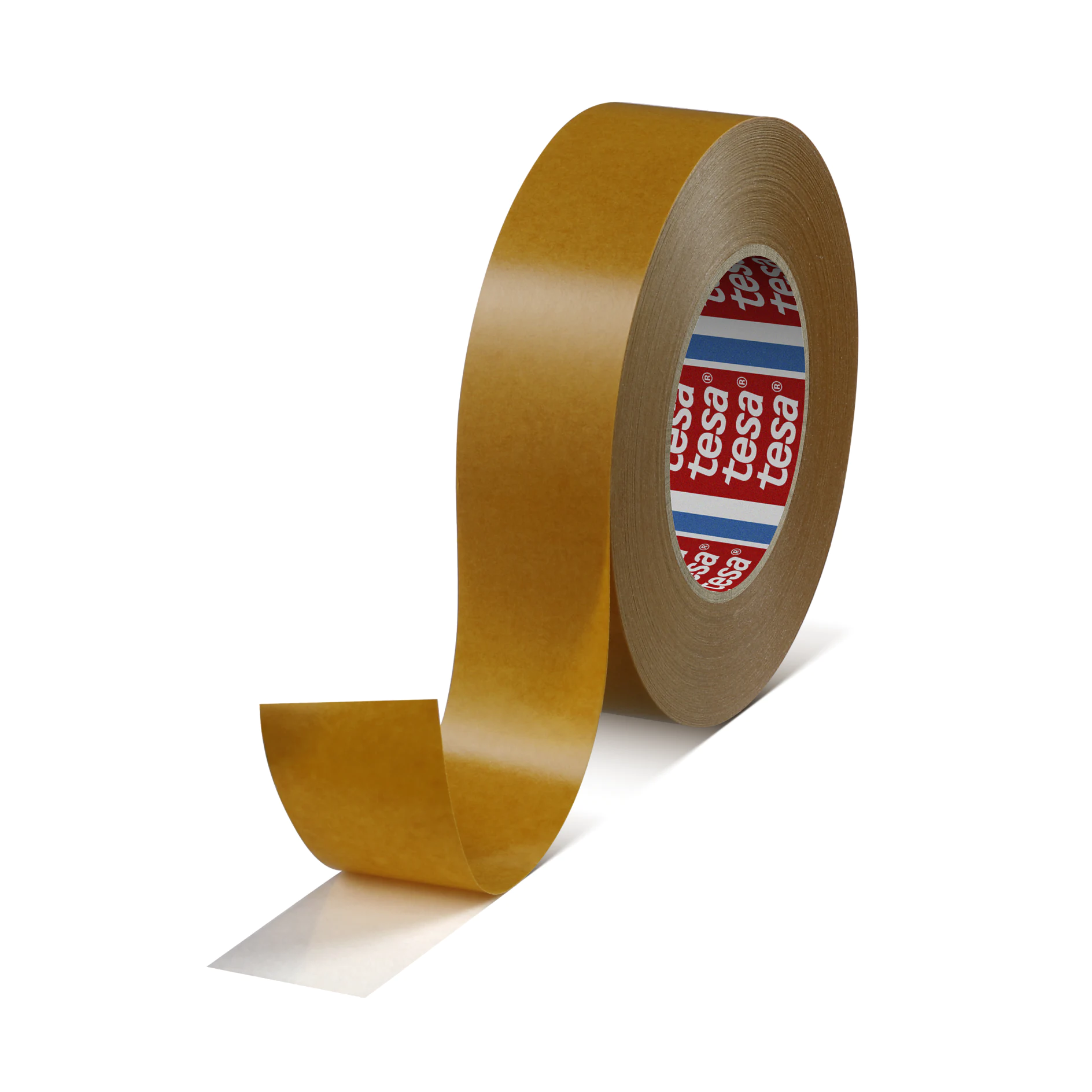

tesa® 51571
Double-sided non-woven tape
Product Features
- The very thick layer of adhesive bonds extremely well on uneven surfaces and has a very high initial bond.
Product description
tesa® 51571 is a double-sided tape with a non-woven backing. It is used for permanent mounting of metal and plastic materials, e.g. aluminium, polystyrene, polypropylene, ABS.
Product details and specifications
Product Features
- The very thick layer of adhesive bonds extremely well on uneven surfaces and has a very high initial bond.
Application Fields
tesa® 51571 is used for applications like
Mounting of evaporator plates in the production of refrigerators
Mounting of evaporator plates in the production of refrigerators
Product Construction
| Adhesive Type | synthetic rubber |
|---|---|
| Backing material | non-woven |
| Color | translucent |
| Color of liner | brown |
| Liner Type | glassine |
| Thickness of liner | 70 µm |
| Total thickness | 160 µm |
| Weight of liner | 78 g/m² |
Product Construction
| Adhesive Type | synthetic rubber |
|---|---|
| Backing material | non-woven |
| Color | translucent |
| Color of liner | brown |
| Liner Type | glassine |
| Thickness of liner | 70 µm |
| Total thickness | 160 µm |
| Weight of liner | 78 g/m² |
Properties / Performance Values
| Elongation at break | 2 % |
|---|---|
| Tensile strength | 9 N/cm |
| Static shear resistance at 40°C | very good |
| Static shear resistance at 70°C | good |
| Humidity resistance | good |
| Temperature resistance long term | 40 °C |
| Ageing resistance (UV) | medium |
| Static shear resistance at 23°C | good |
| Fogging | very good |
| Tack | very good |
| Temperature resistance short term | 80 °C |
Properties / Performance Values
| Elongation at break | 2 % |
|---|---|
| Tensile strength | 9 N/cm |
| Static shear resistance at 40°C | very good |
| Static shear resistance at 70°C | good |
| Humidity resistance | good |
| Temperature resistance long term | 40 °C |
| Ageing resistance (UV) | medium |
| Static shear resistance at 23°C | good |
| Fogging | very good |
| Tack | very good |
| Temperature resistance short term | 80 °C |
Adhesion to Values
| Adhesion to ABS (initial) | 11.8 N/cm |
|---|---|
| Adhesion to Aluminium (initial) | 13 N/cm |
| Adhesion to PC (initial) | 13.4 N/cm |
| Adhesion to PE (initial) | 8 N/cm |
| Adhesion to PE (after 14 days) | 8.5 N/cm |
| Adhesion to PET (initial) | 10.6 N/cm |
| Adhesion to PP (initial) | 9 N/cm |
| Adhesion to PP (after 14 days) | 9 N/cm |
| Adhesion to PS (initial) | 12.4 N/cm |
| Adhesion to PVC (initial) | 12 N/cm |
| Adhesion to PVC (after 14 days) | 13 N/cm |
| Adhesion to Steel (initial) | 12.5 N/cm |
| Adhesion to Steel (after 14 days) | 13 N/cm |
| Adhesion to Steel (covered side, initial) | 12.5 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 11.8 N/cm |
|---|---|
| Adhesion to Aluminium (initial) | 13 N/cm |
| Adhesion to PC (initial) | 13.4 N/cm |
| Adhesion to PE (initial) | 8 N/cm |
| Adhesion to PE (after 14 days) | 8.5 N/cm |
| Adhesion to PET (initial) | 10.6 N/cm |
| Adhesion to PP (initial) | 9 N/cm |
| Adhesion to PP (after 14 days) | 9 N/cm |
| Adhesion to PS (initial) | 12.4 N/cm |
| Adhesion to PVC (initial) | 12 N/cm |
| Adhesion to PVC (after 14 days) | 13 N/cm |
| Adhesion to Steel (initial) | 12.5 N/cm |
| Adhesion to Steel (after 14 days) | 13 N/cm |
| Adhesion to Steel (covered side, initial) | 12.5 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
