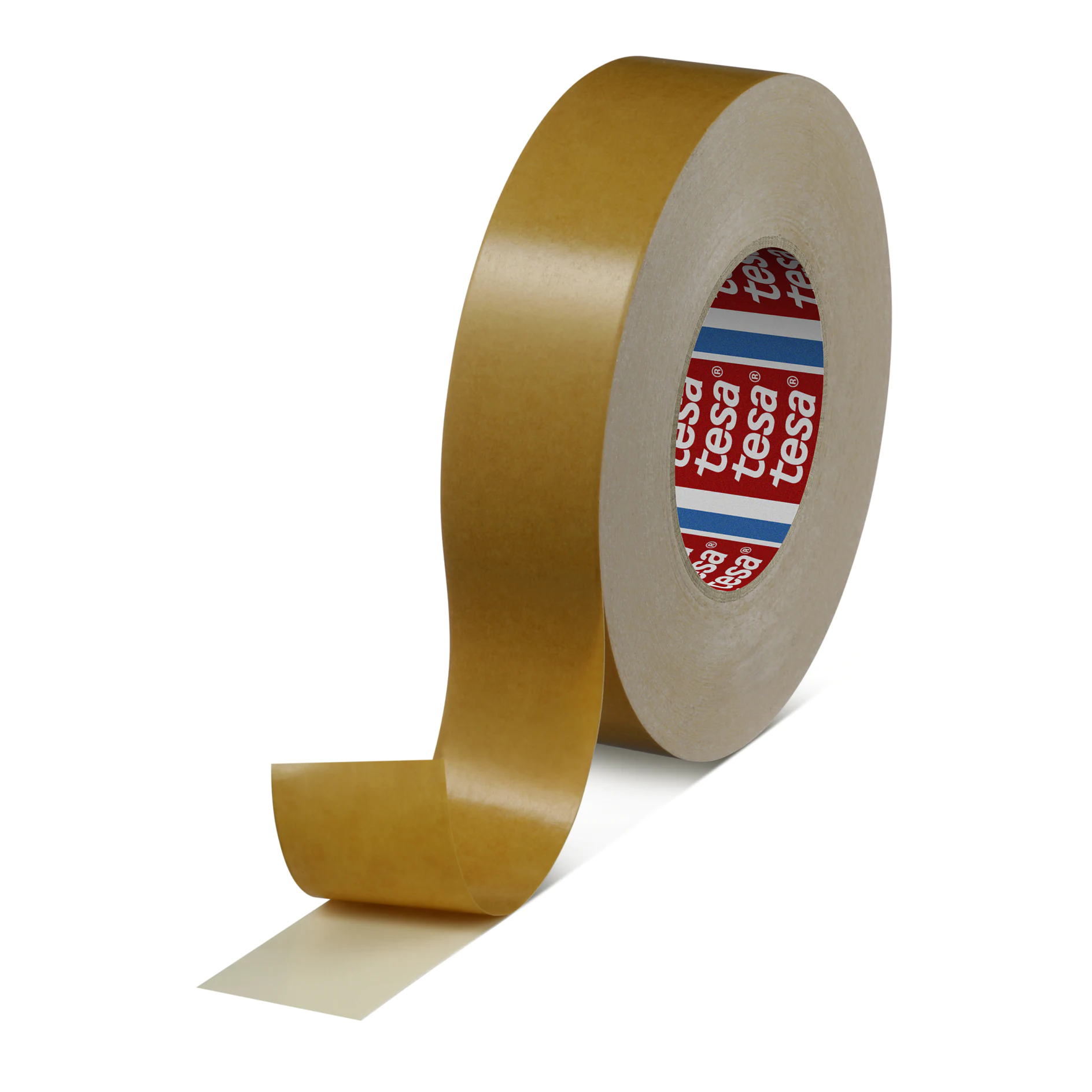

tesa® 4961

Double-sided tape with paper backing

Product description

tesa® 4961 consists of a natural rubber adhesive and special paper backing.

Application Fields

  • Splicing of paper and film
  • Self-adhesive mounting of sanding discs
  • General mounting on smooth surfaces

Product Construction

Elongation at break 3 %
Type of liner glassine
Backing material flat paper
Type of adhesive natural rubber
Color of liner brown
Tensile strength 90 N/cm
Total thickness 205 µm
Color white

Properties / Performance Values

Static shear resistance at 23°C very good
Resistance to chemicals medium
Humidity resistance medium
Static shear resistance at 40°C very good
Temperature resistance long term 40 °C
Temperature resistance short term 110 °C
Tack good
Ageing resistance (UV) medium
Softener resistance medium

Adhesion to Values

Adhesion to Steel (initial) 7.8 N/cm
Adhesion to PE (initial) 3.9 N/cm
Adhesion to PC (after 14 days) 7.5 N/cm
Adhesion to PS (after 14 days) 7.7 N/cm
Adhesion to ABS (initial) 6 N/cm
Adhesion to PP (after 14 days) 6.7 N/cm
Adhesion to PET (after 14 days) 5.8 N/cm
Adhesion to Aluminium (after 14 days) 6.6 N/cm
Adhesion to PE (after 14 days) 4.1 N/cm
Adhesion to Aluminium (initial) 6.1 N/cm
Adhesion to Steel (initial) 7.8 N/cm
Adhesion to ABS (after 14 days) 6.6 N/cm
Adhesion to PC (initial) 7.3 N/cm
Adhesion to PVC (initial) 6.2 N/cm
Adhesion to PS (initial) 7 N/cm
Adhesion to PET (initial) 5.7 N/cm
Adhesion to PP (initial) 5.4 N/cm
Adhesion to Steel (after 14 days) 8 N/cm
Adhesion to PVC (after 14 days) 6.3 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
