Fineline tape for design painting in the automotive paint shop
Product Features
Residue-free removal on painted and non-painted substrates
Temperature resistance up to 140°C/60 min
Very good conformability and exceptionally reliable adhesion strength for multidimensional surfaces
Product description

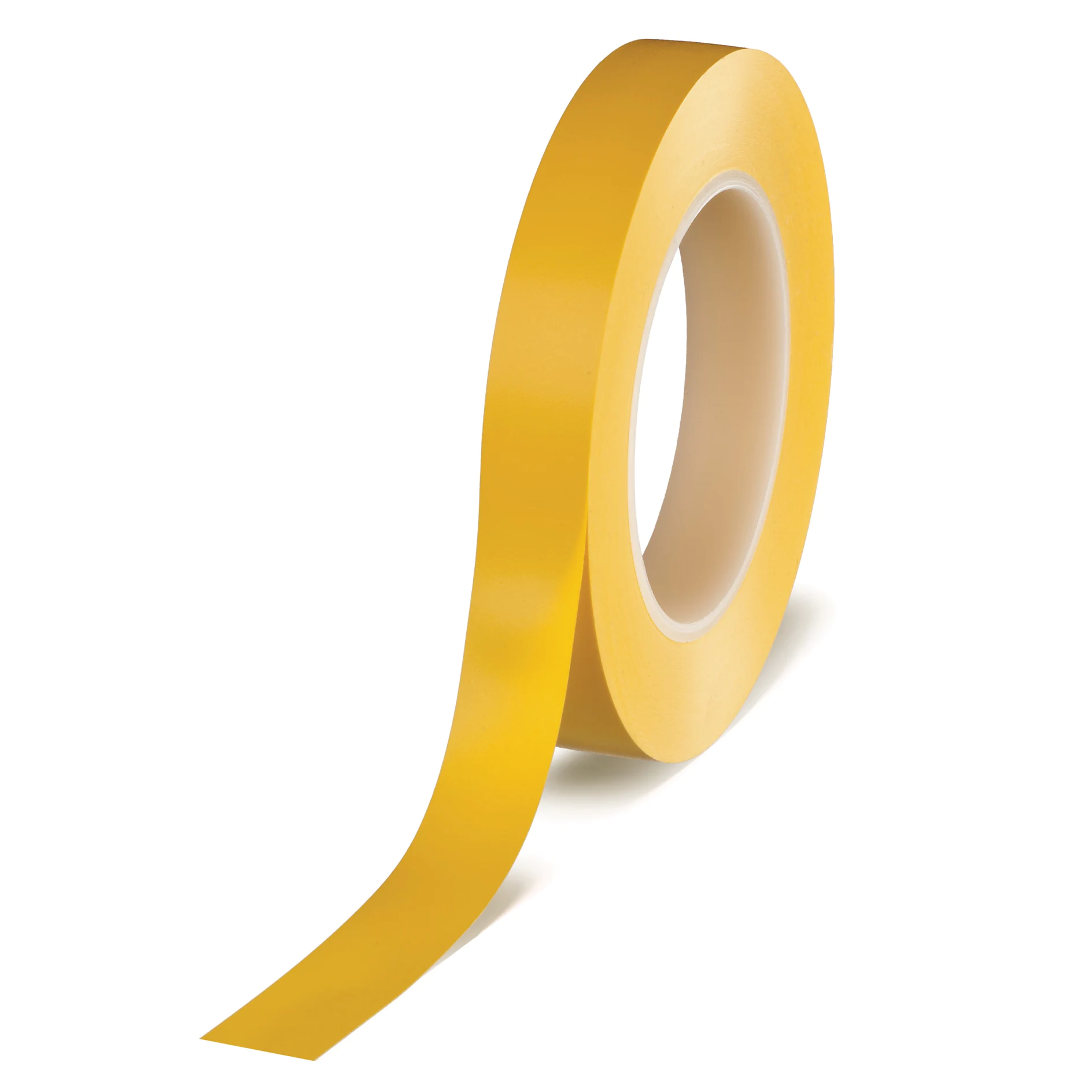

tesa® 4244 PV2 is a flexible, medium-temperature-resistant PVC fineline tape with a natural rubber adhesive. It is engineered for 2-tone masking applications during OEM paint shop processes. This tape enables precise and fine split lines in visible areas, such as the inner side of the roof frame. Compared to other soft PVC tapes in the tesa® masking portfolio, this product offers enhanced tensile strength, ensuring highly reliable demasking performance. In addition, tesa® 4244 PV2 features a higher adhesive coating weight, enabling secure adhesion even on very uneven surfaces.To support efficient processing, both standardized and customized applicators are available.
Product details and specifications
Product Features
Residue-free removal on painted and non-painted substrates
Temperature resistance up to 140°C/60 min
Very good conformability and exceptionally reliable adhesion strength for multidimensional surfaces
Application Fields
Suitable for various types of masking applications, e.g.:

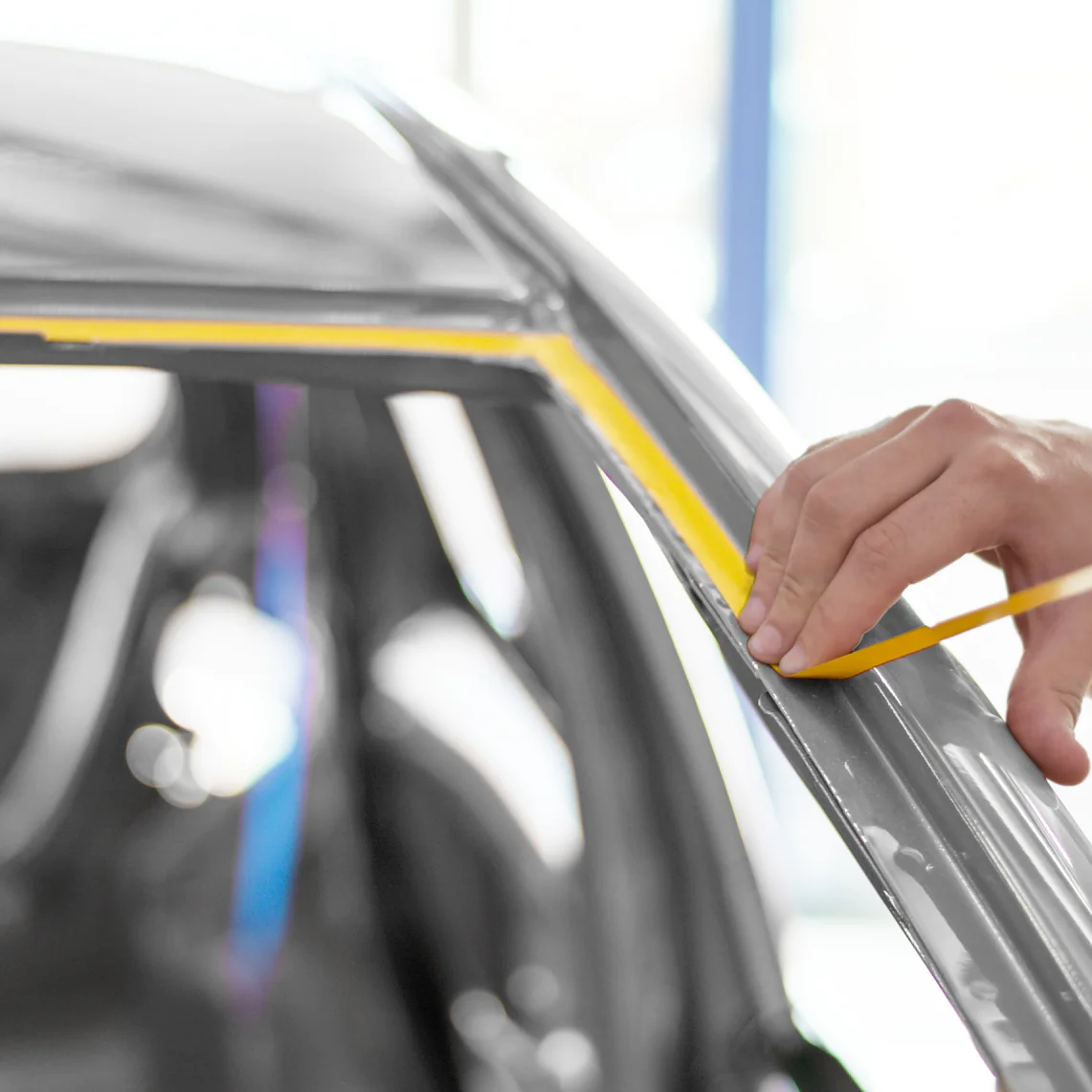

2-tone painting with medium oven temperatures in automotive paint shops
Non-painted substrates like bumpers
Masking for fine and exact color split lines
Masking applications in narrow curves and difficult 3D shapes
Product Construction
Adhesive Type
natural rubber
Backing material
PVC film
Total thickness
130 µm
Product Construction
Adhesive Type
natural rubber
Backing material
PVC film
Total thickness
130 µm
Properties / Performance Values
Elongation at break
252 %
Tensile strength
43 N/cm
Sharp color edge
yes
Easy to remove
yes
Paint anchorage
yes
Flame retardance
very good
Suitable for die cutting
yes
Temperature resistance (60 min)
140 °C
Properties / Performance Values
Elongation at break
252 %
Tensile strength
43 N/cm
Sharp color edge
yes
Easy to remove
yes
Paint anchorage
yes
Flame retardance
very good
Suitable for die cutting
yes
Temperature resistance (60 min)
140 °C
Adhesion to Values
Adhesion to Steel
5.5 N/cm
Adhesion to Values
Adhesion to Steel
5.5 N/cm
Additional Info
Available for converting and die-cutting with a paper liner (PV6): adhesion to steel = 5,4N/cm
Die cuts available as tesa® 54244 PV2
Applicators available for high application efficiency

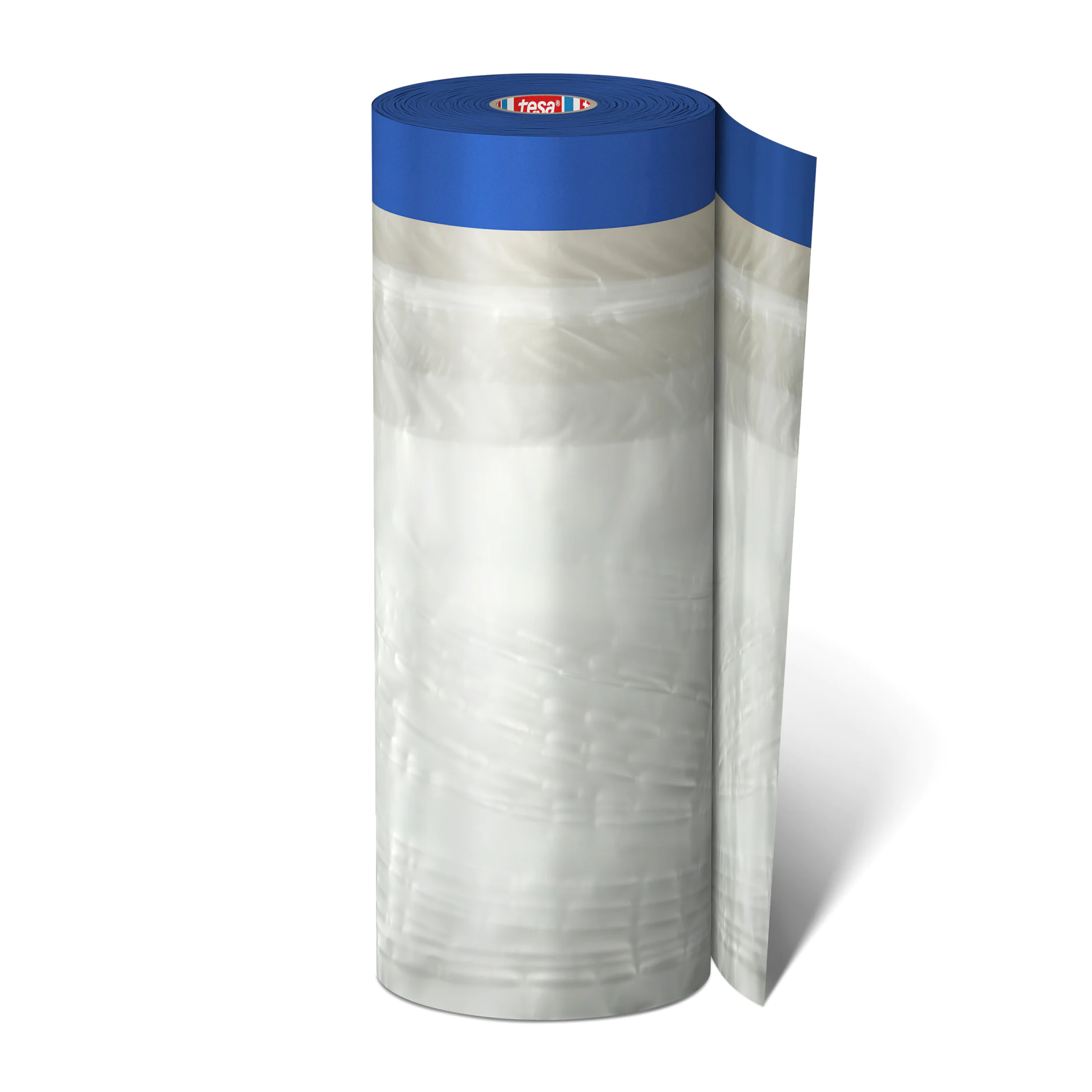

Available as RollMasker (tape+film combination) for large area applications
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
