tesa_04244_pr_001
Product information

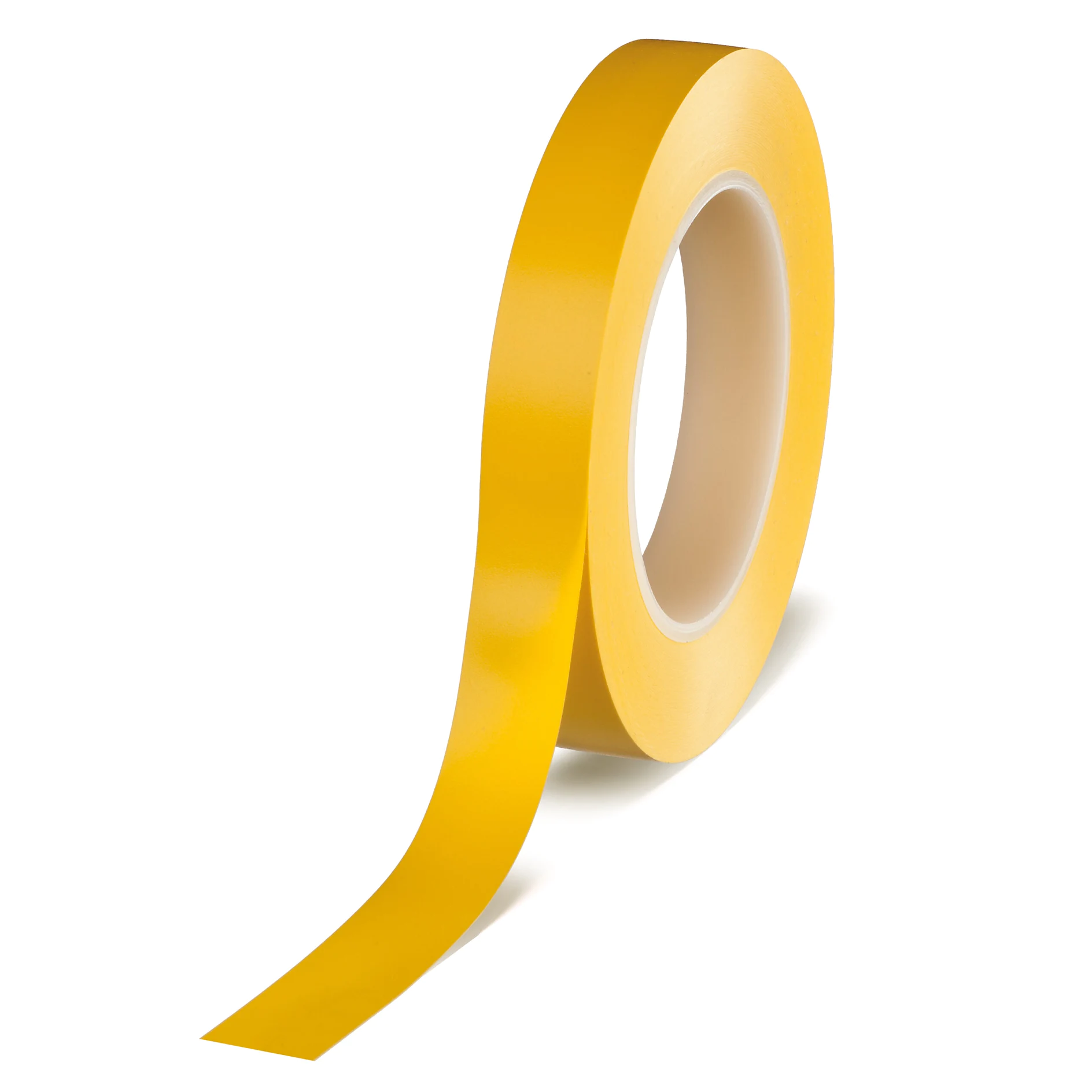

tesa® 4244 PV0

Fineline tape for design painting in the automotive paint shop



Product description

tesa® 4244 PV0 is a flexible soft PVC tape with a natural rubber adhesive for fineline masking if a very sharp paint edge is required, especially on painted or unpainted plastic parts. The 110 µm thickness helps to implement good and sharp paint edges, while the soft PVC of the tapes offers good conformability.

With a temperature resistance of 140°C/1h, tesa® 4244 PV0 is targeting mid-temperature masking applications, such as car bumper masking.

Standardized and customized applicators for tesa® 4244 PV0 are available to ensure efficient tape application.

Main features:
  • Temperature resistance of up to 140°C/1h
  • Conformability with the dimensional change during oven drying
  • Good conformability with multidimensional surfaces
  • Edge does not lift off and residue-free removal

Main applications

tesa® 4244 PV0 is suitable for various types of masking applications.

Example applications are:
  • Car bumper masking applications
  • Masking applications in tight and narrow curves and difficult 3-D shapes
  • Masking with special requirements in regard to PVC or halogen usage

To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.

Additional Info

tesa® 4244 is also available for converting and die-cutting with a paper liner 4244 PV4:
adhesion to steel = 4,7 N/cm
peel off force from liner = 14 cN/cm,
die cuts are available as tesa® 54244
tesa_04244_pr_001

tesa_04244_pr_001

Technical properties

Elongation at break

237 %

Type of adhesive

natural rubber

Temperature resistance (paint)

140 °C

Tensile strength

27 N/cm

Total thickness

110 µm

Backing material

PVC film

Adhesion to steel

3.7 N/cm

Temperature resistance (PP-EPDM)

140 °C

Temperature resistance

140 °C

Rating properties

Conformability

+

Sharp colour edge

++

Flame retardant

++

Suitable for die cutting

Yes

Powerwash resistance

++

Hand tearability

++

Paint anchorage

++

Easy to remove

Yes

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
