Product information

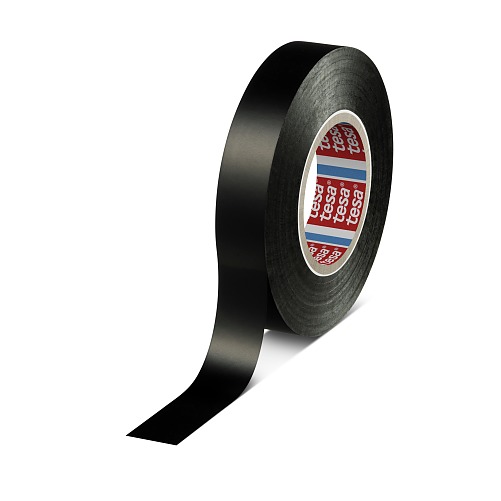

tesa ® 4182 PV2

Soft PVC tape for basic bundling in the automotive passenger compartment



Product description

tesa ® 4182 PV2 is a PVC film tape with an acrylic adhesive for basic bundling of wire harness parts in the automotive passenger compartment. A constant unwind force, the flexible backing, and hand-tearability ensure smooth and efficient application.

tesa ® 4182 PV2 is optimized for manual application.


Main features:
  • Temperature resistance of up to 105°C for 3000h
  • Flag-resistant
  • Hand-tearable
  • Resistant to environmental influences
  • Constant unwind force – optimized for manual application
  • Ageing-resistant
  • Flame-retardant
  • Flexible and smooth

Main applications

tesa ® 4182 PV2 has been particularly developed for efficient bundling of wire harness parts in the automotive passenger compartment.
tesa-4182-pv2-soft-pvc-film-tape-for-basic-bundling-black-041820001102-pr
tesa-4173-soft-pvc-tape-for-bundling-black-step3of3-ap

tesa -4182-pv2-soft-pvc-film-tape-for-basic-bundling-black-041820001102-pr

tesa -4173-soft-pvc-tape-for-bundling-black-step3of3-ap

Technical properties

Backing material

PVC film

Total thickness

104 µm

Type of adhesive

acrylic

Adhesion to steel

1.8 N/cm

Elongation at break

250 %

Tensile strength

25 N/cm

Temperature resistance min.

-25 °C

Temperature resistance (3000h)

105 °C

Abrasion resistance (10mm mandrel)

Class A (acc. to LV312)

Abrasion resistance (5mm mandrel)

Class A (acc. to LV312)

Flame resistance as composite

Class B (acc. to LV312)

Unwind force (roll width > 9mm)

7.5 N/roll (30 m/min)

Noise damping (decibel)

Class A (acc. to LV312)

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
