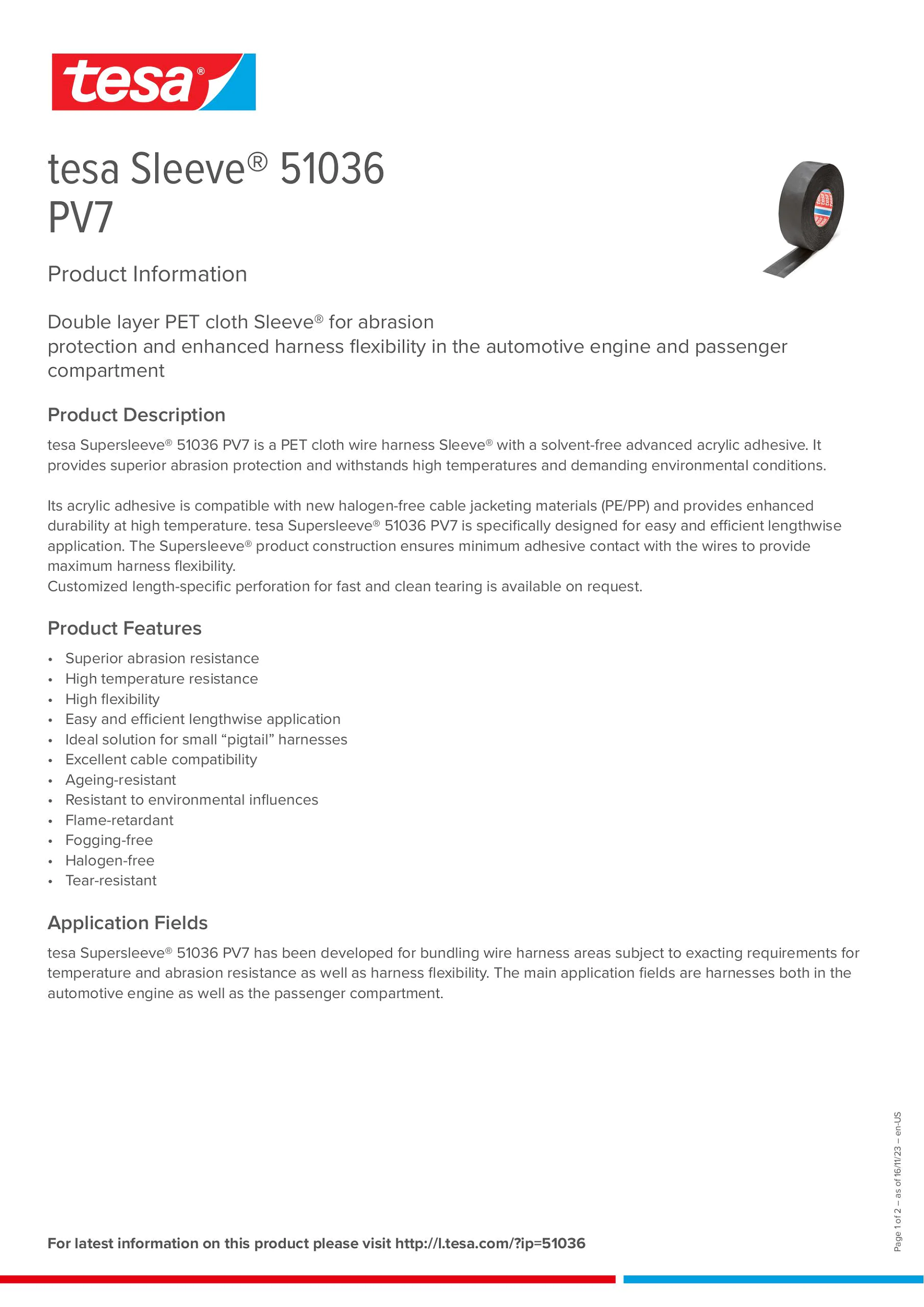

tesa Sleeve® 51036 PV7

Double layer PET cloth Sleeve® for abrasion
protection and enhanced harness flexibility in the automotive engine and passenger compartment

Product description

tesa Supersleeve® 51036 PV7 is a PET cloth wire harness Sleeve® with a solvent-free advanced acrylic adhesive. It provides superior abrasion protection and withstands high temperatures and demanding environmental conditions.

Its acrylic adhesive is compatible with new halogen-free cable jacketing materials (PE/PP) and provides enhanced durability at high temperature. tesa Supersleeve® 51036 PV7 is specifically designed for easy and efficient lengthwise application. The Supersleeve® product construction ensures minimum adhesive contact with the wires to provide maximum harness flexibility.

Customized length-specific perforation for fast and clean tearing is available on request.

Main features:
  • Superior abrasion resistance
  • High temperature resistance
  • High flexibility
  • Easy and efficient lengthwise application
  • Ideal solution for small “pigtail” harnesses
  • Excellent cable compatibility
  • Ageing-resistant
  • Resistant to environmental influences
  • Flame-retardant
  • Fogging-free
  • Halogen-free
  • Tear-resistant

Main applications

tesa Supersleeve® 51036 PV7 has been developed for bundling wire harness areas subject to exacting requirements for temperature and abrasion resistance as well as harness flexibility. The main application fields are harnesses both in the automotive engine as well as the passenger compartment.

Additional Info

Standard widths: 50, 95, 140, 190, 230 mm
Standard lengths: 50 m

For smaller "pig tail" harnesses that are less than 10 mm in diameter

  • Standard core diameter: 76 mm

Technical properties

Type of adhesive

advanced acrylic

Total thickness

485 µm

Backing material

PET cloth

Abrasion resistance (5mm mandrel)

Class D (acc. to LV312)

Adhesion to steel

5.5 N/cm

Temperature resistance min.

-40 °C

Temperature resistance (3000h)

150 °C

Abrasion resistance (10mm mandrel)

Class E (acc. to LV312)

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
